Home/Products/RFID Panel PC/NFC enabled All-in-One Touch Screen Panel PC

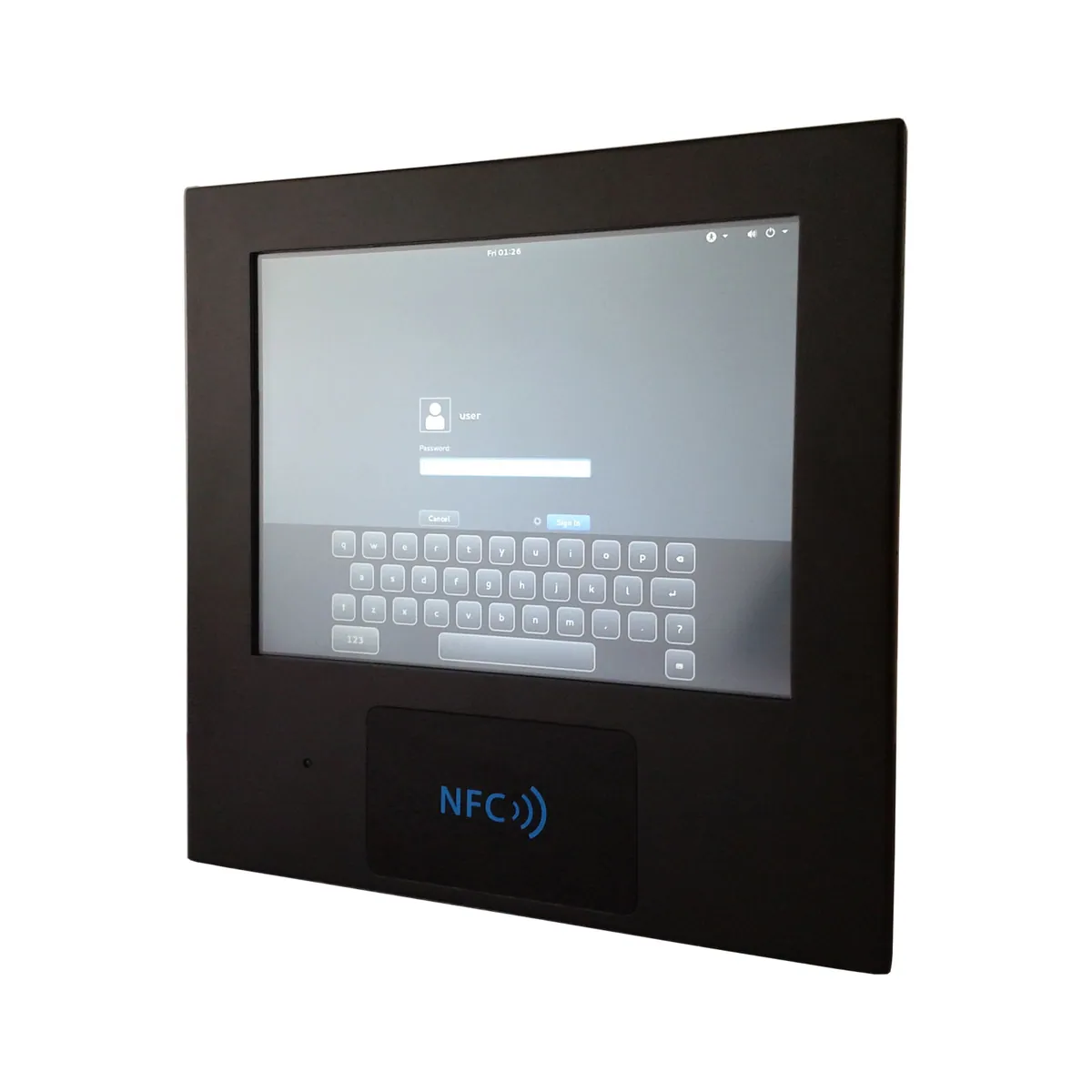

NFC enabled All-in-One Touch Screen Panel PC

EB-97RF3GOEMModel number

RFID Panel PCRange

Powered by Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
9.7″ touch screen for better touch experience
Built-in USB ports, COM ports, HDMI-out port, and VGA-out port, Lan ports allows versatile application
VESA wall-mount enables flexible placement
Integrated NFC module for convenient data transformation
Windows,Linux OS support
Integrated 4G modules and SIM card slot

Call +86-1351-0185730 Request a quotation

Working with RESUN on this model

Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
RFID, NFC, front camera and barcode reader can be integrated.
Multiple CPU, memory, storage and operating system options.
Two-year warranty on computer and monitor hardware.

See the custom design process

All-in-One Touch Screen Panel PC was integrated with NFC reader, and 4G modem support.

Industrial Computers with 4G wireless connectivity ensure seamless communication and long-term operation in challenging environments without stable internet connections. With access provided by cellular data plans just like mobile devices, Panel PCs with cellular connectivity can connect from virtually anywhere.

O/S			Windows/Linux support
CPU			Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Chipsets			Intel® Bay Trail SOC
RAM			1*2GByte DDR3-1333
Hard Drive			32G SSD
Graphic			Intel® HD Graphics
LAN			Realtek RTL8111E, 1*10/100/1000MBit RJ45 Ports
Audio			Realtek HD ALC 662 (2*2W loudspeaker)
USB			8* USB 2.0 ports, 4 as external
External Ports			HDMI
			2USB 2.0 2USB 3.0
			VGA
			2* COM
			1*RJ45
			Audio-in/ Audio-out
			Power on/off
			SIM card slot
			212V DC-in(1screwable)
Internal port			2Sata 300MB/S (1MSATA)
			1*MiniPCI-E
			4* USB2.0
			2*COM/RS 232
			1* Front panel header
RFID/NFC			support ISO 14443 NFC(ISO/IEC 18092)
Input Voltage			11-13V DC-in
Operating Temperature			0℃ to +60℃
Driver			Windows, Linux;
Display(MM)			196.608×147.456
Aspect Ratio			4:3
Native Resolution			1024*768
Brightness			300
Contrast Ratio			500:1
React time			2ms/6ms
Visual angle h:v(°)			130;140
Touch Panel			4 wire resistive touch
Touch Panel Driver			Windows, Linux, Marc
React time touch panel			<10 ms
Surface Hardness			3H
Input Force(g)			20-150
Power Supply			230V,12V

Ask about the EB-97RF3GOEM

Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.

Call +86-1351-0185730 Request a quotation

Other RFID Panel PC models

See all 18

Android Touch Screen Panel PC with RFID Reader

Model EB-104RAAZ

View specification

Rugged Panel PC – Barcode Scanner – RFID reader

Model EB-10SR

Windows/Linux Tablet PC with Barcode Scanner, RFID Reader & VESA Mounting
Industrial Touch Computer for Forklift in Smart Warehouse Management

View specification

Touch Screen Computer with RFID Reader and 2D Scanner

Model EB-8SRPOE

View specification

7 inch Industrial Android NFC Panel PC

Model EB-70RALJ

7 inch Android Industrial Panel PC
Powered by RK3288 Quad Core CPU
Based on Android 7.1 OS

View specification

8 inch RFID Panel PC – Fanless Industrial Touch Panel Computer

Model EB-8SRPOE2

View specification

9.7"

9.7 inch Flat Panel PC with Scanner and RFID Reader

Model EB-10RASK05

9.7 inch Flat Panel PC with 2D Barcode Scanner and RFID Reader

View specification

9.7"

9.7 inch Flat Screen Fanless Panel PC with RFID Reader

Model EB-97FP

9.7 inch Projected Capacitive Touch screen
IP65 rated true-flat front bezel, all-glass design, no gap
Bult-in RFID reader / NFC

View specification

10"

10 inch Touch Screen Computer RFID Reader

Model EB-10RA

10″ Panel PC with RFID reader for access control
10 inch Touch Screen
Intel CPU (options)

View specification

Frequently Asked Questions

Can this model be customised?

Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.

What is the lead time and minimum quantity?

Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.

Is a sample available before production?

Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.

What warranty applies?

Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
