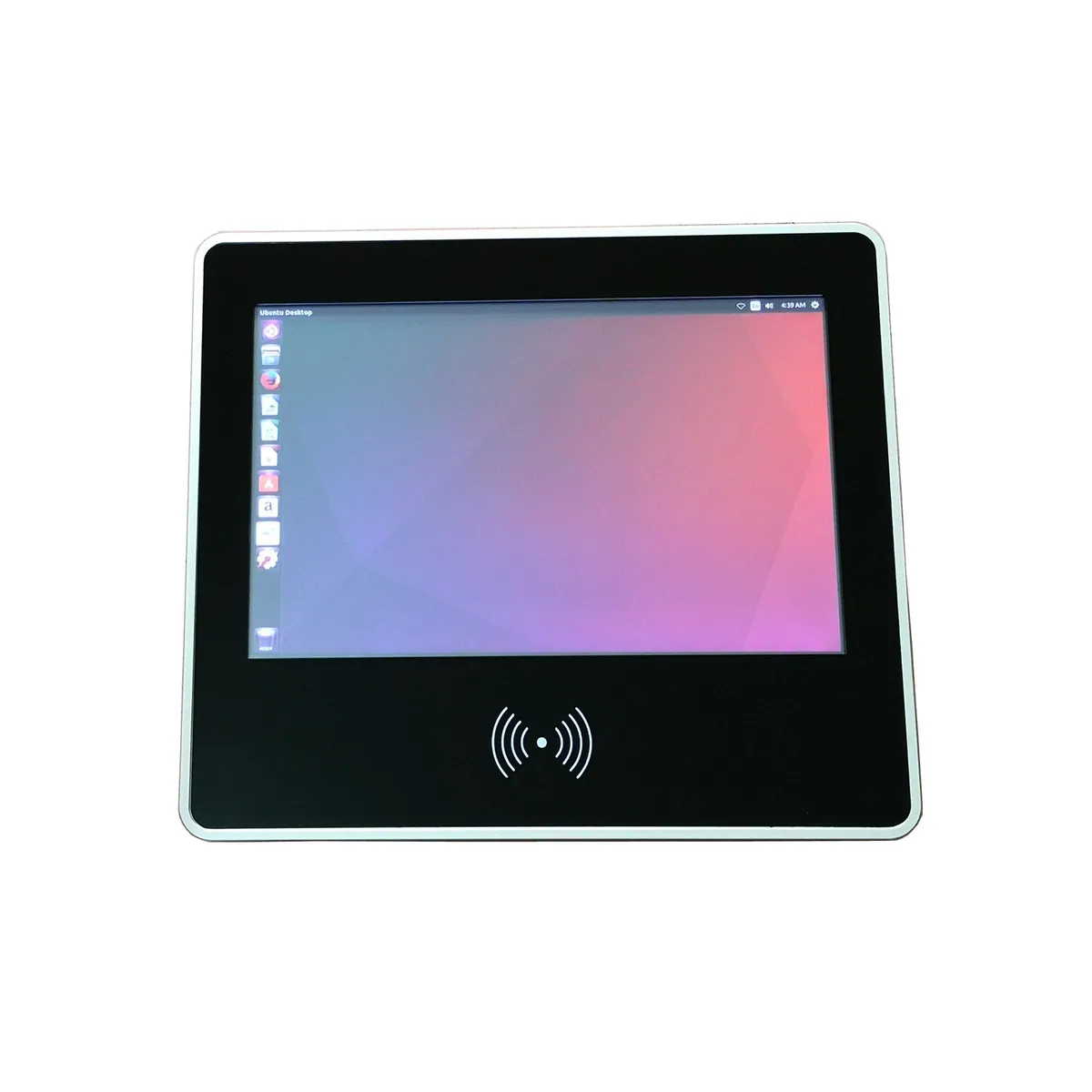

12.1″ Touch Screen RFID Access Control Terminal
- 12.1 inch TFT LCD touch screen, all operations can be done directly on the touch screen
- Integrated with Intel J1900 Quad cors CPU
- Dual 125KHz-EM or 13.56MHz-Mifare RFID reading capacity
- Windows or Linux operating system support
- IP65 Front panel watertight and dustproof
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
RFID Access Control and Time Attendance with touch screen, Panel PC, Support Windows, Linux, Fingerprint is optional.
This 12.1 inch RFID touch screen computer, an intelligent all-in-one access control terminal that reads both MIFARE and EM tags and also optional for NFC.
The fanless panel PCs are built on the low power, low heat chipsets.
This is RFID Touch Computer systems combine IP65 compliant front panel with CNC cutted shields
to ensure the computer is secured against vandalism and protected against extreme environmental conditions.
| CPU | Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) | ||||
| Chipsets | Intel® Bay Trail SOC | ||||
| RAM | 2GByte DDR3L-1600 | ||||
| Hard Drive | 32GB SSD | ||||
| Graphic | Intel HD Graphics | ||||
| Audio | Realtek HD ALC 662 ,2*2W Loudspeaker | ||||
| LAN | Realtek RTL8111F , 1*10/100/1000MBit RJ45 Ports | ||||
| External Ports | HDMI | ||||
| 2*USB2.0 , 2*USB3.0 | |||||
| 2* COM | |||||
| 1*RJ45 | |||||
| VGA | |||||
| Line out | |||||
| MIC | |||||
| Power on/off | |||||
| DC-in(12V) input power | |||||
| Internal port | 1*Sata 300MB/S (1*MSATA) | ||||
| 1*MiniPCI-E | |||||
| RFID | 125Khz / ID card (EM4100) | ||||
| 13.56Mhz / IC card (ISO14443A) | |||||
| Driver | Windows, Linux; | ||||
| Aspect Ratio | 16:10 | ||||
| Physical Resolution | 1280（W)*800(H) | ||||
| Brightness | 400 | ||||
| Touch Panel | 4 wire Resistive touch panel | ||||
| Front Panel | IP65 | ||||
| Case | Aluminum ,steel sheet | ||||
RFID time and attendance terminal
Ask about the EB-121RA-OEM
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
