Home / Products / YAG(Ce) / YAP(Ce) / YAG(Ce) / YAP(Ce) YAG Ce 10x6x1mm
YAG(Ce) & YAP(Ce) crystal

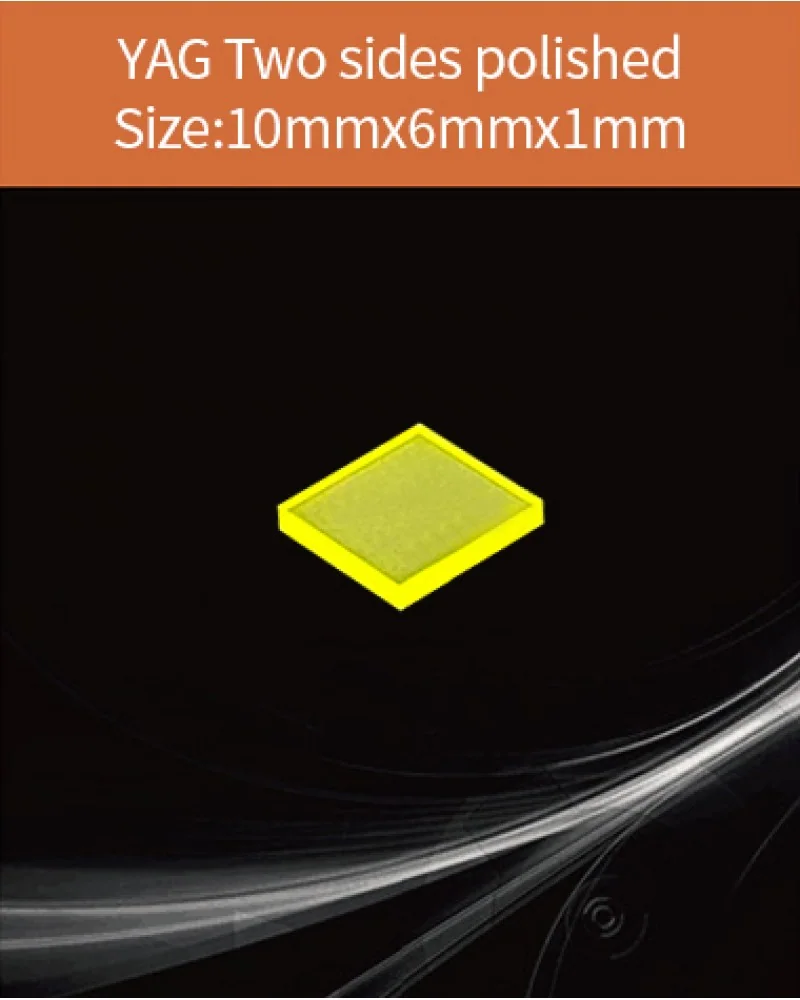

YAG(Ce) / YAP(Ce) YAG Ce 10x6x1mm
YAG Ce scintillator, YAG Ce crystal, Ce doped YAG scintillator, Scintillation YAG Ce, YAG Ce 10x6x1mm
$167.00
List price published by the factory; confirmed on quotation.
Item Details
| Dimension | 10 mm (length) x 6 mm (width) x 1 mm (thickness) |
|---|---|
| Polish | both sides polished |
| Tolerance | ±0.02 mm |
| List price | $167.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: 10 mm (length) x 6 mm (width) x 1 mm (thickness)
- Polish: both sides polished
- Tolerance: ±0.02 mm
Features
- Relatively high light output
- Ce concentration 0.2 at%
- Maximum size: ø80 mm x 200 mm
- Available items: Monolithic YAG Ce and YAG:Ce screen
YAG Ce Scintillator Description
Yttrium aluminum garnet activated by cerium (YAG:Ce) is fast with excellent mechanical properties and is chemically resistant scintillator. Mechanical properties enable to produce YAG:Ce scintillation screens down to a thickness of 100 um, YAG:Ce detectors are excellent for electron microscopy, beta and X-ray counting, electron and X-ray imaging screens.
Customized YAG Ce Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related YAG(Ce) / YAP(Ce) Items
All 96 in YAG(Ce) / YAP(Ce)
YAG(Ce) / YAP(Ce) YAG Ce 14x14x0.5mm$260.00
YAG(Ce) / YAP(Ce) YAG Ce 18x13x0.5mm$197.00
YAG(Ce) / YAP(Ce) YAG Ce 20x15x0.05mm$620.00
YAG(Ce) / YAP(Ce) YAG Ce 20x20x0.1mm$210.00
YAG(Ce) / YAP(Ce) YAG Ce 20x20x0.3mm$228.00
YAG(Ce) / YAP(Ce) YAG Ce 25x15x0.025mm$890.00
YAG(Ce) / YAP(Ce) YAG Ce 25x20x0.1mm$296.00
YAG(Ce) / YAP(Ce) YAG Ce 2x2x20mm$110.00Questions About YAG(Ce) / YAP(Ce) YAG Ce 10x6x1mm
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is YAG(Ce) / YAP(Ce) YAG Ce 10x6x1mm?
YAG(Ce) / YAP(Ce) YAG Ce 10x6x1mm is a YAG(Ce) / YAP(Ce) scintillation crystal from Epic Crystal Company Limited, Dimension: 10 mm (length) x 6 mm (width) x 1 mm (thickness).
What is the listed price and minimum quantity?
The list price published for this item is $167.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order YAG(Ce) / YAP(Ce) YAG Ce 10x6x1mm?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote YAG(Ce) / YAP(Ce) YAG Ce 10x6x1mm
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
