Home / Products / YAG(Ce) / YAP(Ce) / YAG(Ce) / YAP(Ce) YAG Ce 25x20x0.1mm
YAG(Ce) & YAP(Ce) crystal

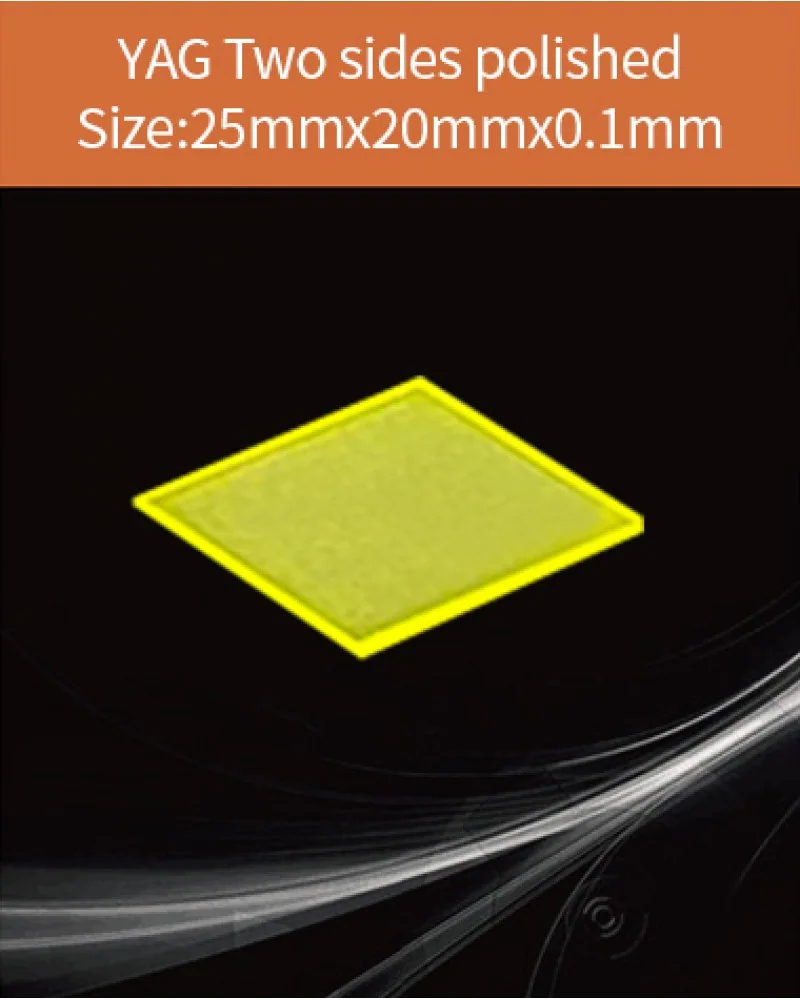

YAG(Ce) / YAP(Ce) YAG Ce 25x20x0.1mm
YAG Ce scintillator, YAG Ce crystal, Ce doped YAG scintillator, Scintillation YAG Ce, YAG Ce 25x20x0.1mm
$296.00
List price published by the factory; confirmed on quotation.
Item Details
| Dimension | 25 mm (length) x 20 mm (width) x 0.1 mm (thickness) |
|---|---|
| Polish | both sides polished |
| Tolerance | ±0.02 mm |
| List price | $296.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: 25 mm (length) x 20 mm (width) x 0.1 mm (thickness)
- Polish: both sides polished
- Tolerance: ±0.02 mm
Features
- Relatively high light output
- Ce concentration 0.2 at%
- Maximum size: ø80 mm x 200 mm
- Available items: Monolithic YAG Ce and YAG:Ce screen
YAG Ce Scintillator Description
Yttrium aluminum garnet activated by cerium (YAG:Ce) is fast with excellent mechanical properties and is chemically resistant scintillator. Mechanical properties enable to produce YAG:Ce scintillation screens down to a thickness of 100 um, YAG:Ce detectors are excellent for electron microscopy, beta and X-ray counting, electron and X-ray imaging screens.
Customized YAG Ce Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related YAG(Ce) / YAP(Ce) Items
All 96 in YAG(Ce) / YAP(Ce)
YAG(Ce) / YAP(Ce) YAG Ce 2x2x20mm$110.00
YAG(Ce) / YAP(Ce) YAG Ce 3x3x0.03mm$178.00
YAG(Ce) / YAP(Ce) YAG Ce 3x3x0.1mm$115.00
YAG(Ce) / YAP(Ce) YAG Ce 3x3x0.3mm$124.00
YAG(Ce) / YAP(Ce) YAG Ce 3x3x0.5mm$102.00
YAG(Ce) / YAP(Ce) YAG Ce 40x25x0.5mm$540.00
YAG(Ce) / YAP(Ce) YAG Ce 6x6x3mm$160.00
YAG(Ce) / YAP(Ce) YAG Ce 8x8x0.05mm$290.00Questions About YAG(Ce) / YAP(Ce) YAG Ce 25x20x0.1mm
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is YAG(Ce) / YAP(Ce) YAG Ce 25x20x0.1mm?
YAG(Ce) / YAP(Ce) YAG Ce 25x20x0.1mm is a YAG(Ce) / YAP(Ce) scintillation crystal from Epic Crystal Company Limited, Dimension: 25 mm (length) x 20 mm (width) x 0.1 mm (thickness).
What is the listed price and minimum quantity?
The list price published for this item is $296.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order YAG(Ce) / YAP(Ce) YAG Ce 25x20x0.1mm?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote YAG(Ce) / YAP(Ce) YAG Ce 25x20x0.1mm
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
