Home / Products / CaF2(Eu) / BaF2 / diameter 3x15mm all sides polished
CaF2(Eu), BaF2 and Y-BaF2 scintillation crystals

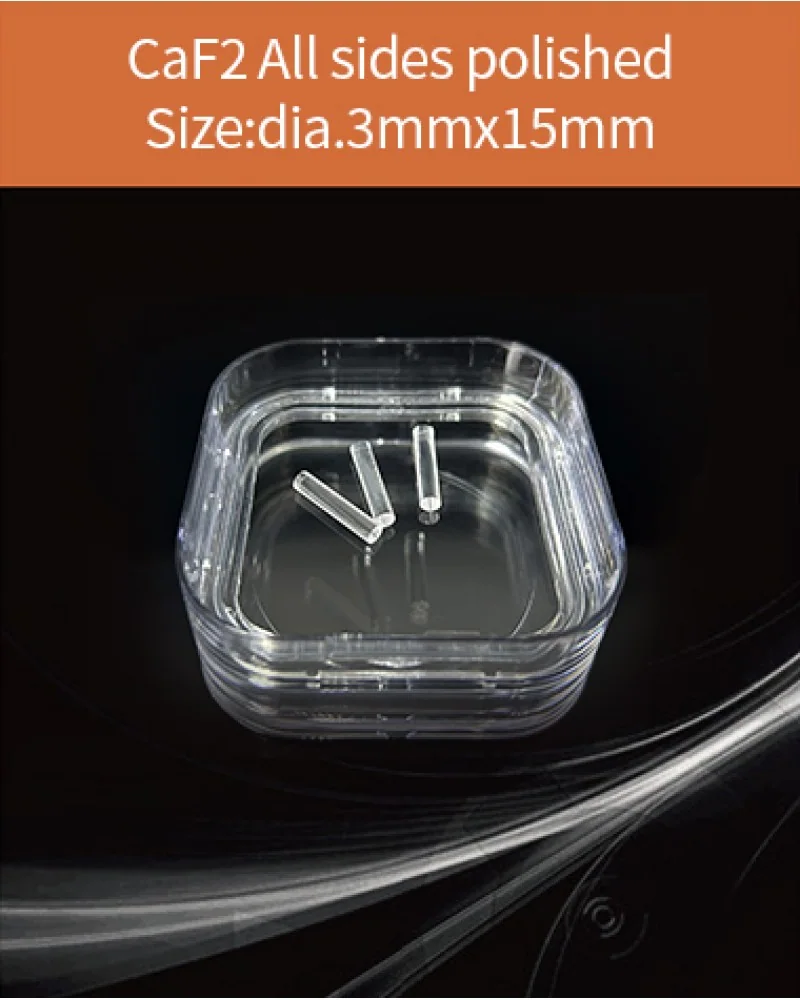

diameter 3x15mm all sides polished
CaF2 eu scintillator, CaF2 eu crystal, scintilltion CaF2 eu, eu doped CaF2, CaF2 eu scintillation crystal, diameter 3x15mm
$150.00
List price published by the factory; confirmed on quotation.
Item Details
| Product code | diameter 3x15mm all sides polished |
|---|---|
| Dimension | diameter 3mm x 15mm(height) |
| Polish | all sides polished |
| Tolerance | ±0.02 mm |
| Brand | EPIC Crystal |
| Availability | In Stock |
| List price | $150.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: diameter 3mm x 15mm(height)
- Polish: all sides polished
- Tolerance: ±0.02 mm
Features
- Relatively high light output
- High shock resistance
- Inert
- Maximum size: ø60 mm x 120 mm
- Available items: Monolithic CaF2(Eu), CaF2(Eu) Screen
Main Applications
- P-Detector
- Radioactivity medical science diagnoses
CaF2 Eu Scintillator Description
Calcium fluoride activated by Europium ( CaF2 Eu) is light scintillators which are used for detection of charged particles and soft gamma ray up to several hundreds keV. CaF:Eu crystal is typically used for detection of beta rays due to its relatively small back scattering. It is not suitable for detection of high-energy gamma ray because has a small photo fraction. It is non hygroscopic and is relatively chemically inert.
Customized CaF2 Eu Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related CaF2(Eu) / BaF2 Items
All 45 in CaF2(Eu) / BaF2
CaF2(Eu) 10x10x10mm$240.00
diameter 50mm x 1mm both sides polished$660.00
diameter 76.2x1mm both sides polished$920.00
50mm x 50mm x 1mm both sides polished$780.00
10x10x10mm all sides polished$410.00
15x15x15mm all sides polished$510.00
2x2x3mm all sides polished$150.00
4x4x20mm all sides polished$280.00Questions About diameter 3x15mm all sides polished
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is diameter 3x15mm all sides polished?
diameter 3x15mm all sides polished is a CaF2(Eu) / BaF2 scintillation crystal from Epic Crystal Company Limited, Dimension: diameter 3mm x 15mm(height).
What is the listed price and minimum quantity?
The list price published for this item is $150.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order diameter 3x15mm all sides polished?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote diameter 3x15mm all sides polished
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
