CaF2(Eu), BaF2 and Y-BaF2 scintillation crystals

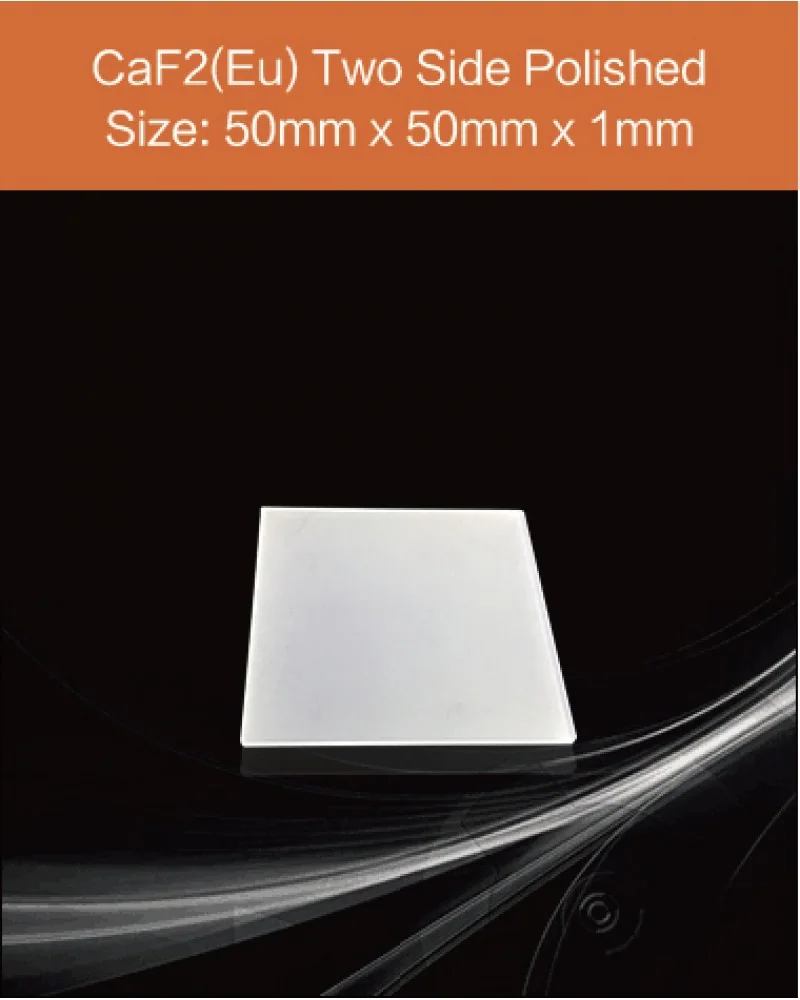

50mm x 50mm x 1mm both sides polished
CaF2(Eu) Europium doped Calcium Fluoride Crystal, CaF2(Eu) crystal, CaF2(Eu) scintillation crystal material, 50mm x 50mm x 1mm
$780.00
List price published by the factory; confirmed on quotation.
Item Details
| Product code | 50mm x 50mm x 1mm both sides polished |
|---|---|
| Brand | EPIC Crystal |
| Availability | In Stock |
| List price | $780.00 |
| Made in | Kunshan, Jiangsu, China |
CaF2(Eu) Crystal Specification
- Dimension: diameter 50mm x 50mm x 1mm
- Polish: both sides polished
- Tolerance: ±0.02 mm
CaF2(Eu) Crystal Features
- Relatively high light output
- High shock resistance
- Inert
- Maximum size: ø60 mm x 120 mm
- Available items: Monolithic CaF2(Eu), CaF2(Eu) Screen
CaF2(Eu) Crystal Main Applications
- P-Detector
- Radioactivity medical science diagnoses
CaF2(Eu) Crystal Description
Calcium fluoride activated by Europium ( CaF2 Eu) is light scintillators which are used for detection of charged particles and soft gamma ray up to several hundreds keV. CaF:Eu crystal is typically used for detection of beta rays due to its relatively small back scattering. It is not suitable for detection of high-energy gamma ray because has a small photo fraction. It is non hygroscopic and is relatively chemically inert.
Customized CaF2(Eu) Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related CaF2(Eu) / BaF2 Items
All 45 in CaF2(Eu) / BaF2
Questions About 50mm x 50mm x 1mm both sides polished
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is 50mm x 50mm x 1mm both sides polished?
50mm x 50mm x 1mm both sides polished is a CaF2(Eu) / BaF2 scintillation crystal from Epic Crystal Company Limited.
What is the listed price and minimum quantity?
The list price published for this item is $780.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order 50mm x 50mm x 1mm both sides polished?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote 50mm x 50mm x 1mm both sides polished
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
