CsI(Tl) and CsI(Na) scintillation crystal

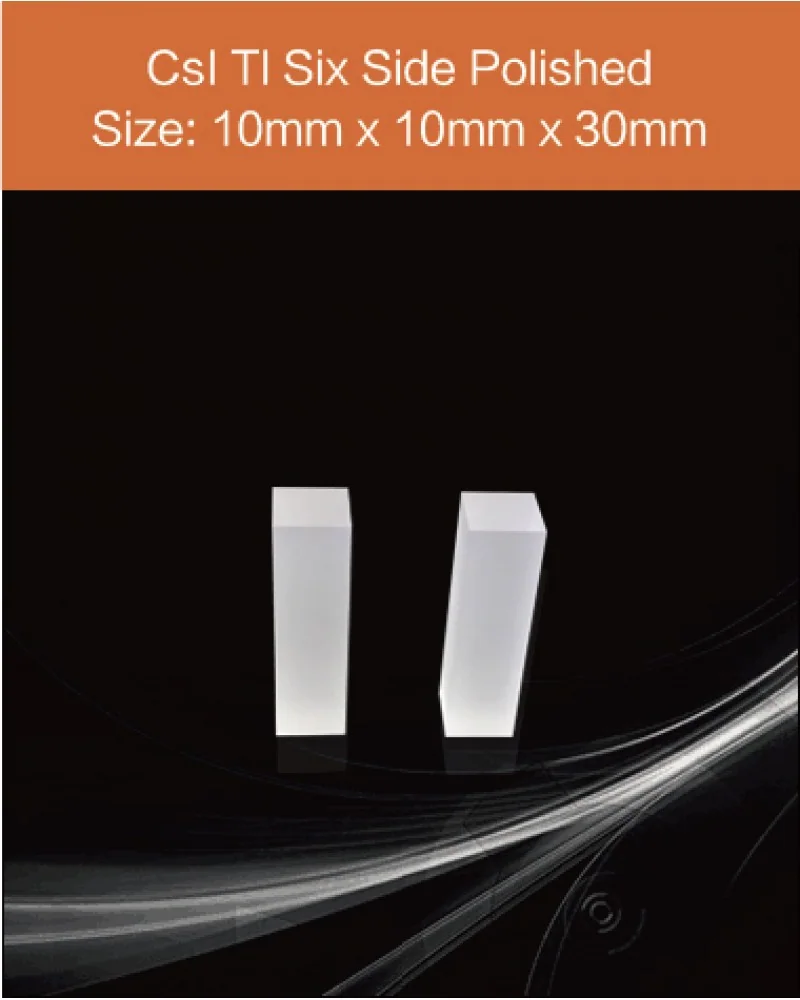

CsI(Tl) / CsI(Na) 10x10x30mm
CsI(Tl) scintillator crystal, Thallium activated Cesium Iodide Scintillation crystal, 10x10x30mm
$110.00
List price published by the factory; confirmed on quotation.
Item Details
| List price | $110.00 |
|---|---|
| Made in | Kunshan, Jiangsu, China |
CsI(Tl) Specification
- Dimension: 10 mm (length) x 10 mm (width) x 30 mm (height)
- Polish: all sides polished
- Tolerance: ±0.02 mm
CsI(Tl) Features
- Compatible with photodiode readout
- High light output
- Emission wavelength at 550 nm
CsI(Tl) Main Applications
- Nuclear radiation detection
- High energy physics field
- Security inspection field
CsI TI Scintillator Description
CsI(Tl) scintillator is one of the brightest scintillator. The maximum of the broad emission situated at 550nm is is well suited for photodiode readout. CsI(Tl) is slightly hygroscopic with plastic mechanical properties. Combined with the relatively good radiation hardness properties, CsI(Tl) is well suited for High Energy Physics, security inspection filed.
Customized CsI TI Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related CsI(Tl) / CsI(Na) Items
All 12 in CsI(Tl) / CsI(Na)
CsI(Na) 10mmx10mmx10mm$290.00
CsI(Tl) / CsI(Na) 50x50x3mm encapsulated$580.00
CsINa-Scintillator-25x80mm$422.00
CsI(Tl) 10mm x 10mm x 10mm encapsulated$258.00
15mm x 15mm x 30mm encapsulated$350.00
25.4 x 25.4 x 25.4 mm all sides polished$220.00
30mm x 30mm x 30mm encapsulated$450.00
30 x 30 x 30 mm all sides polished$290.00Questions About CsI(Tl) / CsI(Na) 10x10x30mm
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is CsI(Tl) / CsI(Na) 10x10x30mm?
CsI(Tl) / CsI(Na) 10x10x30mm is a CsI(Tl) / CsI(Na) scintillation crystal from Epic Crystal Company Limited.
What is the listed price and minimum quantity?
The list price published for this item is $110.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order CsI(Tl) / CsI(Na) 10x10x30mm?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote CsI(Tl) / CsI(Na) 10x10x30mm
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
