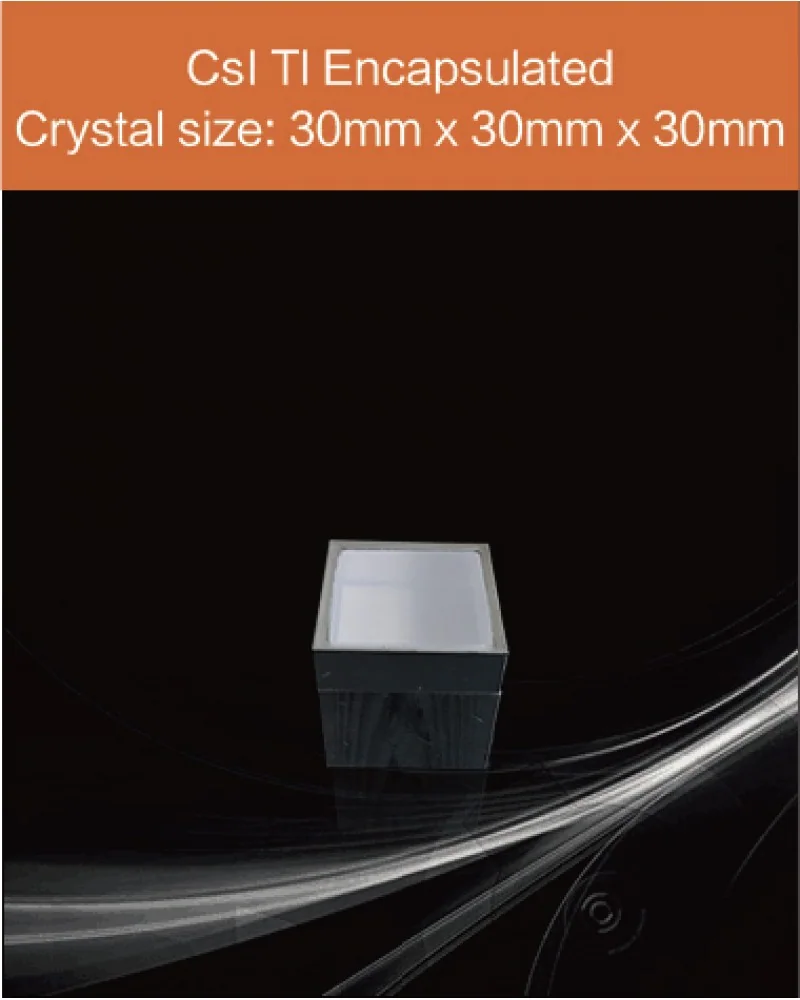

30mm x 30mm x 30mm encapsulated

CsI(Tl) Specification

• Dimension: 30 mm (length) x 30 mm (width) x 30 mm (height)
• Encapsulated with aluminum housing and optical window

CsI(Tl) Features

• Compatible with photodiode readout
• High light output
• Emission wavelength at 550 nm

CsI(Tl) Main Applications

• Nuclear radiation detection
• High energy physics field
• Security inspection field

CsI TI Scintillator Description

CsI(Tl) scintillator is one of the brightest scintillator. The maximum of the broad emission situated at 550nm is is well suited for photodiode readout. CsI(Tl) is slightly hygroscopic with plastic mechanical properties. Combined with the relatively good radiation hardness properties, CsI(Tl) is well suited for High Energy Physics, security inspection filed.

Customized CsI TI Scintillation Crystal

Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.

For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
