PbWO4 and PbF2 scintillation crystal

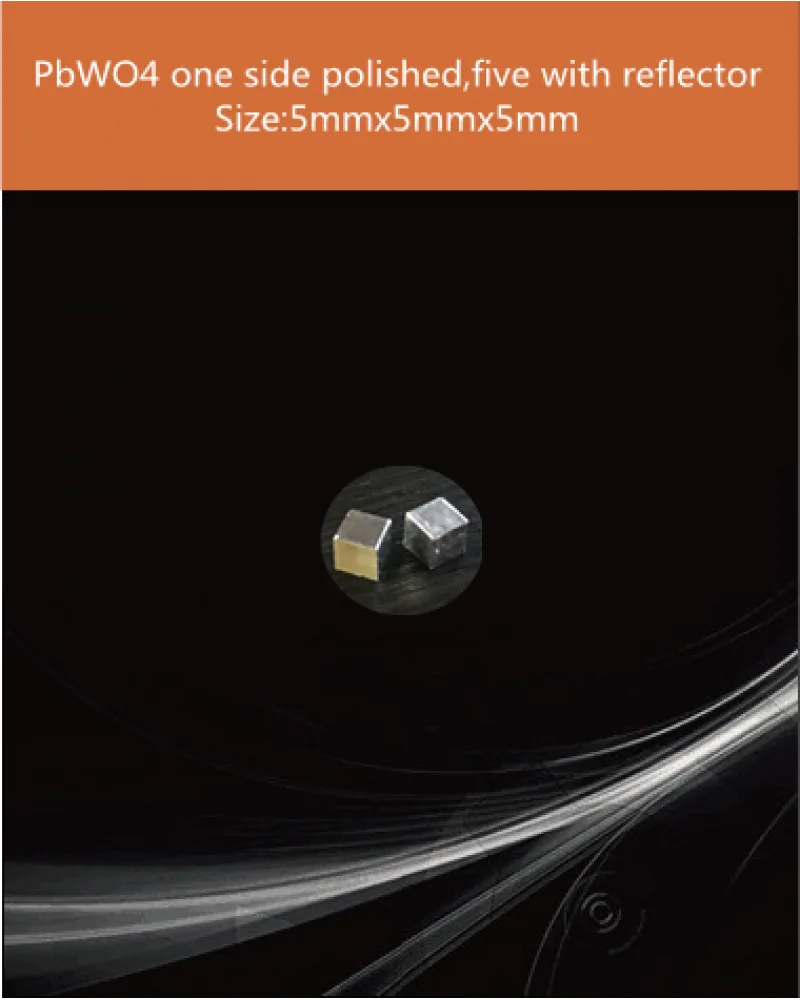

5x5x5mm,one side polished,five with reflector
PbWO4 scintillator, PbWO4 crystal, PWO scintillation crystal, Lead tungstate scintillation crystal, 5x5x5mm with reflector
$180.00
List price published by the factory; confirmed on quotation.
Item Details
| Product code | 5x5x5mm,one side polished,five with reflector |
|---|---|
| Brand | EPIC Crystal |
| Availability | In Stock |
| List price | $180.00 |
| Made in | Kunshan, Jiangsu, China |
- Crystal dimension: 5x5x5mm
- One side polished,five with reflector
PWO Features
- High Density
- Short radiation length
- Fast decay time
- Strong radiation hardness
PWO Main Applications
- Nuclear medicine
- Oil well logging
- Excellent photoelectric crystal
PWO Scintillator Description
Lead tungstate (PbWO4 Crystal) is our new scintillating crystal. As one of the most dense oxide crystal (8.3 g/cm3), PbWO4 is distinguished by its short radiation length (0.9 cm), small Moliere radius (2.19 cm) and strong irradiation hardness. Its scintillation light output peaks between 450-550 nm with a fast component decay time in the range from 2-20 ns. After irradiation with gamma-ray, the degradation in the optical transmittance is not large up to 106 rad. It is considered as a promising scintillation material for electromagnetic spectrometer in high energy, nuclear physics experiment as well as nuclear medicine.
Lead Tungstate (PbWO4) crystal is a novel scintillator which has been adopted as the detect material by several high energy physics devices, e.g., CMS detector in CERN. The crystal is distinguished by its fast decay time, high density and strong radiation hardness. So it may have an extensive application prospect in nuclear medicine. It is also an excellent photoelectric crystal due to its good performance in optical properties and stable physical and chemical features.
Customized PWO Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related PbWO4 / PbF2 Items
All 14 in PbWO4 / PbF2
6x6x15mm one side polished,five with reflector$290.00
dia.15x2mm all sides polished$280.00
diameter 13x1mm both sides polished$220.00
diameter 25.4 mm x 50.8 mm thickness$3,970.00
10x10x10mm all sides polished$310.00
10x10x1mm all sides polished$220.00
2 x 2x 3 mm all sides polished$150.00
3x3x3mm all sides polished$190.00Questions About 5x5x5mm,one side polished,five with reflector
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is 5x5x5mm,one side polished,five with reflector?
5x5x5mm,one side polished,five with reflector is a PbWO4 / PbF2 scintillation crystal from Epic Crystal Company Limited.
What is the listed price and minimum quantity?
The list price published for this item is $180.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order 5x5x5mm,one side polished,five with reflector?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote 5x5x5mm,one side polished,five with reflector
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
