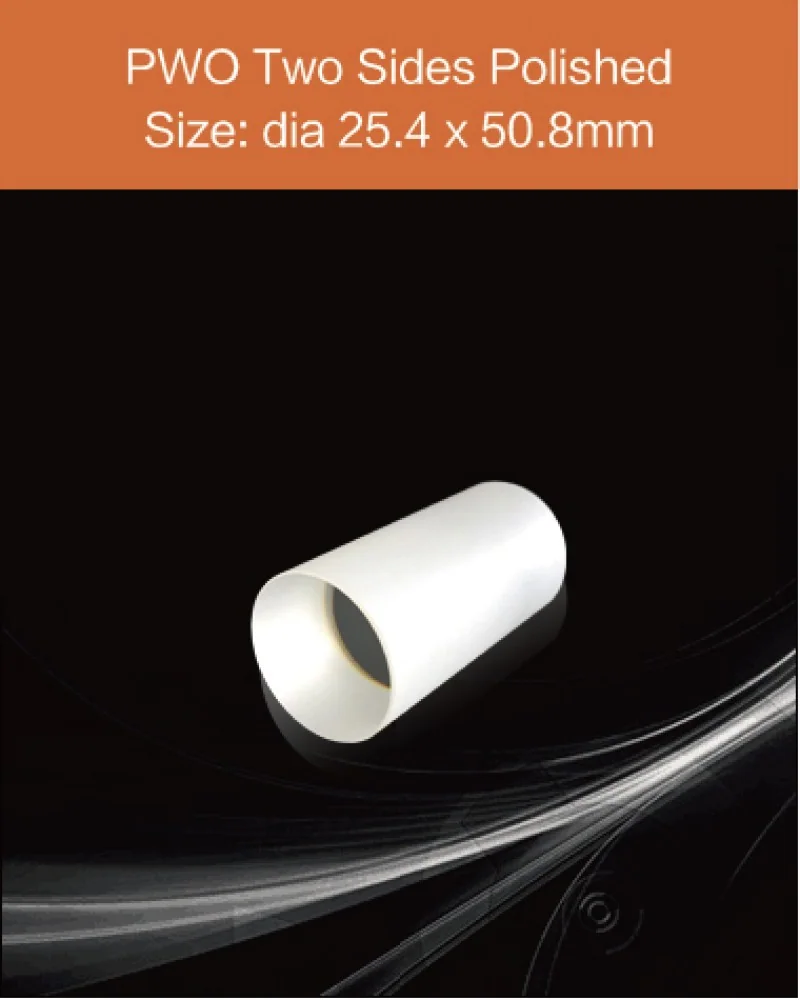

diameter 25.4 mm x 50.8 mm thickness

• Crystal dimension: diameter 25.4 mm x 50.8 mm
• Two sides polished

Features

• High Density
• Short radiation length
• Fast decay time
• Strong radiation hardness

Main Applications

• Nuclear medicine
• Oil well logging
• Excellent photoelectric crystal

PWO Scintillator Description

Lead tungstate (PbWO4 Crystal) is our new scintillating crystal. As one of the most dense oxide crystal (8.3 g/cm3), PbWO4 is distinguished by its short radiation length (0.9 cm), small Moliere radius (2.19 cm) and strong irradiation hardness. Its scintillation light output peaks between 450-550 nm with a fast component decay time in the range from 2-20 ns. After irradiation with gamma-ray, the degradation in the optical transmittance is not large up to 106 rad. It is considered as a promising scintillation material for electromagnetic spectrometer in high energy, nuclear physics experiment as well as nuclear medicine.

Lead Tungstate (PbWO4) crystal is a novel scintillator which has been adopted as the detect material by several high energy physics devices, e.g., CMS detector in CERN. The crystal is distinguished by its fast decay time, high density and strong radiation hardness. So it may have an extensive application prospect in nuclear medicine. It is also an excellent photoelectric crystal due to its good performance in optical properties and stable physical and chemical features.

Customized PWO Scintillation Crystal

Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.

For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
