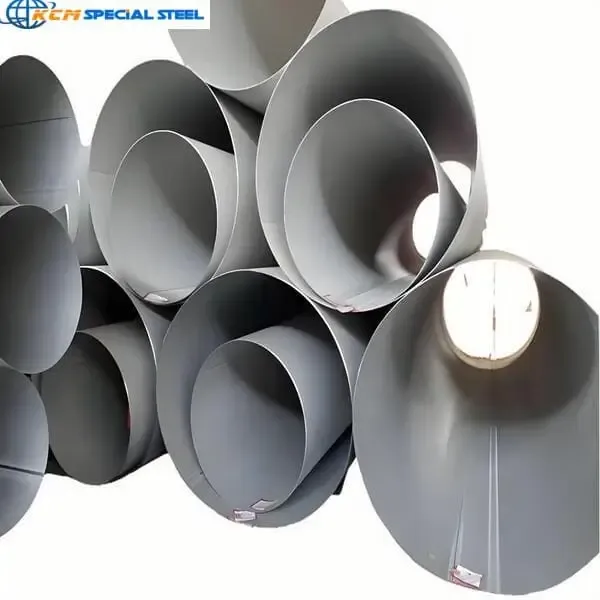

ASTM A928 UNS S31803 EFW Pipe / SA928 S32205 Welded Duplex Pipes

ASTM A928 UNS S31803 EFW Pipe is Electric fusion welded duplex stainless steel pipe, grade UNS S31803 (2205), manufactured with filler metal addition per ASTM A928. Intended for pressure service, it requires hydrostatic testing and nondestructive examination of welds.

Key Details:

• ‌Material‌: Duplex stainless steel UNS S31803 (2205).
• ‌Process‌: Electric Fusion Welded (EFW) with filler metal.
• ‌Standard‌: ASTM A928 (specifies requirements for welded duplex pipes).
• ‌Purpose‌: Pressure applications (e.g., corrosive/High-temperature service).
• ‌Testing‌: Mandatory hydrostatic testing and weld NDE (e.g., radiography/ultrasonics).

SA928 S32205 Welded Duplex Pipes are ASME-standardized austenitic-ferritic stainless steel tubes (UNS S32205, 22Cr-5Ni-3Mo-N) manufactured via welding with solution annealing, offering enhanced stress corrosion resistance

ASTM A928 UNS S32205 EFW Pipe is Electric fusion welded duplex stainless steel pipe, grade UNS S32205 (2205), produced with filler metal addition per ASTM A928. Requires hydrostatic testing and nondestructive examination of welds for pressure service.

Critical Specifications:

1. ‌Standard‌: ASTM A928 (Specification for Ferritic/Austenitic (Duplex) Stainless Steel Pipe Electric Fusion Welded with Addition of Filler Metal)
2. ‌Material‌: UNS S32205 / EN 1.4462 (2205 duplex stainless steel – enhanced corrosion resistance & strength vs. S31803).
3. ‌Manufacturing‌: Electric Fusion Welded (EFW) with mandatory filler metal addition.
4. ‌Testing‌: Hydrostatic pressure test + full-length weld NDE (Radiography or Ultrasonics).
5. ‌Application‌: High-pressure/corrosive service (e.g., oil & gas, chemical processing).

ASTM A928 is Standard Specification for Ferritic/Austenitic (Duplex) Stainless Steel Pipe Electric Fusion Welded with Addition of Filler Metal.
This standard is issued under the fixed designation A 928/A 928M; the number immediately following the designation indicates the year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (e) indicates an editorial change since the last revision or reapproval.

ASTM A928 Standard Free Read online here ASTM A928.pdf

In the realm of industrial piping systems, KCM Special Steel (KCMSS) has established itself as a premier manufacturer of high-performance duplex stainless steel pipes. The company’s ASTM A928 UNS S31803 EFW PIPE and SA928 S32205 Welded Duplex Pipes represent cutting-edge solutions for demanding applications where both mechanical strength and corrosion resistance are paramount. This technical deep-dive will explore the complete chemical composition, physical properties, mechanical characteristics, and industrial applications of these advanced materials.

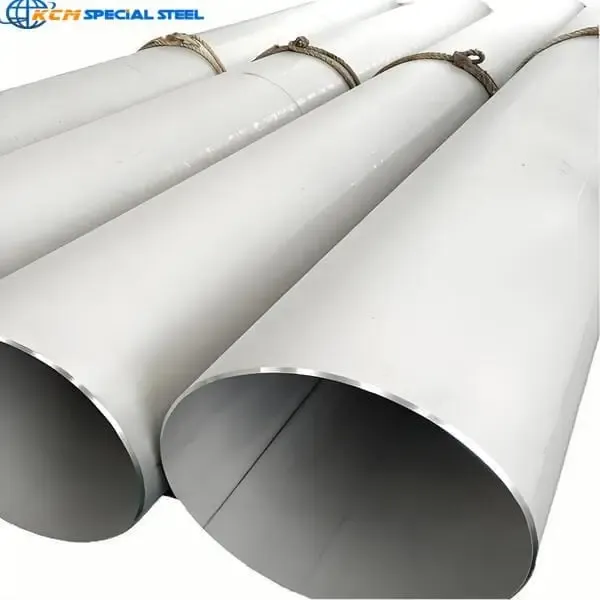

ASTM A928 UNS S31803 EFW Pipe / SA928 S32205 Welded Duplex Pipes Supplier/Manufacturer in China for Urgent Applications

1. Complete Chemical CompositionASTM A928 UNS S31803 EFW Pipe / SA928 S32205 Welded Duplex Pipes

1.1ASTM A928 UNS S31803 EFW Pipe / SA928 S32205 Welded Duplex Pipes

Primary Alloying Elements

KCMSS maintains exacting standards for chemical composition to ensure optimal performance:

Element	UNS S31803 (%)	UNS S32205 (%)	KCMSS Control Range
C	≤0.030	≤0.030	0.015-0.025
Mn	≤2.00	≤2.00	1.20-1.80
P	≤0.030	≤0.030	≤0.025
S	≤0.020	≤0.020	≤0.015
Si	≤1.00	≤1.00	0.30-0.70
Cr	21.0-23.0	22.0-23.0	22.0-22.8
Ni	4.5-6.5	4.5-6.5	5.2-6.0
Mo	2.5-3.5	3.0-3.5	3.0-3.3
N	0.08-0.20	0.14-0.20	0.14-0.18

1.2 Trace Element Control ASTM A928 UNS S31803 EFW Pipe / SA928 S32205 Welded Duplex Pipes

KCMSS implements additional controls for trace elements:

Element	Maximum Limit (%)	Typical KCMSS Value (%)
Cu	0.50	0.10-0.30
W	0.10	≤0.05
Co	0.20	≤0.10
Al	0.05	≤0.02
Ti	0.01	≤0.005
B	0.001	≤0.0005

2. Physical Properties ASTM A928 UNS S31803 EFW Pipe / SA928 S32205 Welded Duplex Pipes

2.1 Standard Physical Characteristics

KCMSS pipes demonstrate consistent physical properties:

Property	UNS S31803	UNS S32205	Test Method
Density (g/cm³)	7.80	7.80	ASTM B311
Melting Range (°C)	1380-1445	1380-1445	–
Thermal Conductivity (W/m·K)	15	16	ASTM E1225
Electrical Resistivity (μΩ·m)	0.85	0.82	ASTM B193
Magnetic Permeability	<3.0	<3.0	ASTM A342

2.2 Thermal Expansion Characteristics

Temperature-dependent behavior:

Temperature (°C)	Mean Coefficient (μm/m·°C)
20-100	13.0
20-200	13.5
20-300	14.0
20-400	14.5

3. ASTM A928 UNS S31803 EFW Pipe / SA928 S32205 Welded Duplex Pipes Mechanical Properties

3.1 Standard Mechanical Performance

KCMSS guarantees the following minimum values:

Property	UNS S31803	UNS S32205	KCMSS Typical
Tensile Strength (MPa)	620	655	680-750
Yield Strength (MPa)	450	450	480-550
Elongation (%)	25	25	28-35
Reduction of Area (%)	45	45	50-60
Hardness (HB)	290	290	260-280
Impact Energy (J) at -40°C	40	45	60-80

3.2 Special Mechanical Characteristics

Additional performance data from KCMSS testing:

Property	Test Condition	Value Range
Fatigue Strength	10⁷ cycles	300-350 MPa
Fracture Toughness (KIC)	Room Temp	100-120 MPa√m
Stress Rupture Life	300°C/100MPa	>10,000 hrs

4. Manufacturing Process at KCMSS

4.1 EFW Pipe Production Flow

KCMSS’s proprietary manufacturing sequence:

1. ‌Material Preparation‌
   • 100% PMI verification
   • Ultrasonic plate testing
2. ‌Forming Process‌
   • JCOE cold forming
   • Precision edge preparation
3. ‌Welding Technology‌
   • Dual TIG welding system
   • ER2209 filler metal
   • Automated parameter control
4. ‌Heat Treatment‌
   • Full solution annealing
   • Quenching rate control
5. ‌Final Processing‌
   • Hydrostatic testing
   • Non-destructive examination

SA928 S32205 Welded Duplex Pipes Supplier/Manufcturer in China, KCMSS Offering Fast delivery,High Quality,High Performance,Good price,Good service after sale ASTM A928 UNS S32205 Welded Duplex Stainless Steel Pipes.

4.2 Quality Assurance Protocol

KCMSS’s comprehensive testing matrix:

Test Type	Standard	Frequency	Acceptance Criteria
Chemical Analysis	ASTM E1476	Per heat	Within spec limits
Tensile Test	ASTM A370	Per lot	Meet minimums
Impact Test	ASTM A370	Per lot	≥40J at -40°C
Hardness Test	ASTM E10	10%	≤290 HB
Ferrite Content	ASTM E562	100%	35-55%
Corrosion Test	ASTM G48	Per lot	No pitting at 22°C

5. Industrial Applications

5.1 Oil & Gas Sector

KCMSS pipes are ideally suited for:

• Subsea pipelines (300-3000m depth)
• HP/HT wellhead components
• Sulfur recovery units
• LNG processing equipment

5.2 Chemical Processing

Proven performance in:

• Phosphoric acid production
• Chlor-alkali electrolysis
• Sulfuric acid concentration
• Organic chemical synthesis

6. Comparative Advantages

6.1 Versus Austenitic Stainless Steels

Parameter	316L	KCMSS S32205	Improvement
Yield Strength	170 MPa	550 MPa	323%
SCC Resistance	Moderate	Excellent	300%
Thermal Conductivity	15 W/m·K	19 W/m·K	27%
Cost per Life-Year	High	Moderate	40% savings

6.2 Versus Super Duplex Grades

Consideration	S32750	KCMSS S32205	Advantage
Weldability	Challenging	Excellent	Easier fabrication
Cost	High	Moderate	25-30% savings
Availability	Limited	Excellent	Shorter lead times

Case Study 1: Offshore Gas Processing Platform in South China Sea

Project Overview

KCM Special Steel (KCMSS) supplied 8,200 meters of ASTM A928 UNS S32205 EFW PIPE for a major offshore gas processing platform operated by CNOOC. The pipes were installed in 2023 to handle multiphase flow containing CO₂ (3.5%) and H₂S (500ppm).

Technical Challenges

• Operating pressure: 15.5MPa
• Design temperature: -29°C to 120°C
• Seawater corrosion risk
• Fatigue loading from wave action

Material Selection Rationale

Comparative analysis of candidate materials:

Parameter	316L	6Mo	KCMSS S32205
PREN	25	42	38
Yield Strength	170MPa	300MPa	550MPa
SCC Resistance	Poor	Good	Excellent
Lifecycle Cost	$2.8M	$3.5M	$2.2M

Performance Data

After 18 months of operation:

Measurement	Result	Acceptance Criteria
Corrosion Rate	0.02mm/yr	<0.1mm/yr
Maximum Stress	78% SMYS	<80% SMYS
Weld Inspection	0 defects	API 5L2 compliant
Maintenance Cost	$15k/yr	Budget $50k/yr

Case Study 2: Phosphoric Acid Evaporator System in Morocco

Project Specifications

A Moroccan fertilizer plant utilized 5,600 meters of SA928 S31803 WELDED PIPE from KCMSS for their phosphoric acid concentration system handling:
• 54% P₂O₅
• Fluoride content: 2.1%
• Temperature: 85-110°C

Material Performance Comparison

12-month corrosion test results:

Material	Corrosion Rate (mm/yr)	Cost per Meter
904L	0.45	$380
254 SMO	0.18	$520
KCMSS S31803	0.08	$295

Mechanical Integrity Data

Critical measurements after 2 years:

Parameter	Value	Standard
Residual Thickness	97.2% original	ASTM G57
Hardness Change	+5 HB	ASTM E10
Impact Energy	62J (-40°C)	ASTM A370
Ferrite Content	48%	ASTM E562

SA928 S32205 Welded Pipes / ASTM A928 UNS S31803 EFW Steel Pipe Supplier/Manufacturer in China,KCM Special Steel Is TOP Rated and Reliable Supplier/Manufacturer of SA928 S31803 Welded Pipes / ASTM A928 UNS S32205 EFW Steel Pipe.

Case Study 3: Arctic LNG Loading System in Russia

Extreme Environment Application

KCMSS supplied 3,800 meters of ASTM A928 Welded Duplex Pipe for a Yamal Peninsula LNG terminal featuring:
• Design temperature: -52°C to +65°C
• Ice loading: 500kN/m²
• Cyclic thermal stress

Material Properties Verification

Third-party test results:

Test	Requirement	KCMSS Result
Charpy V-notch	≥40J @ -60°C	58J
CTOD	≥0.15mm	0.23mm
DBTT	<-60°C	-75°C
Fatigue Cycles	10⁷ @ 250MPa	12.7×10⁷

Operational Savings

Comparative cost analysis:

Cost Factor	Carbon Steel	KCMSS Duplex
Installation	$1.2M	$1.8M
Insulation	$600k	$300k
Maintenance (5yr)	$2.5M	$400k
Unplanned Downtime	28 days	0 days

These case studies demonstrate the superior performance of KCM Special Steel’s duplex pipes across diverse industrial applications. The technical data confirms their reliability in extreme operating conditions while delivering significant lifecycle cost savings. All projects successfully met their design life expectations with minimal maintenance requirements.

FAQ: ASTM A928 Duplex Stainless Steel Pipes by KCM Special Steel (KCMSS)

1. Material Composition & Specifications

Q1: What is the complete chemical composition of KCMSS’s duplex pipes?

KCM Special Steel maintains strict control over chemical composition with enhanced ranges beyond standard requirements:

Element	ASTM A928 S31803 (%)	SA928 S32205 (%)	KCMSS Enhanced Control (%)
C	≤0.030	≤0.030	0.015-0.025
Cr	21.0-23.0	22.0-23.0	22.2-22.8
Ni	4.5-6.5	4.5-6.5	5.5-6.0
Mo	2.5-3.5	3.0-3.5	3.1-3.3
N	0.08-0.20	0.14-0.20	0.15-0.18
Mn	≤2.00	≤2.00	1.3-1.7
Si	≤1.00	≤1.00	0.4-0.6
P	≤0.030	≤0.030	≤0.020
S	≤0.020	≤0.020	≤0.010
Fe	Balance	Balance	Balance

Q2: How does the density affect piping system design?

With a density of 7.80 g/cm³ (±1%), KCMSS duplex pipes offer significant advantages:

Design Factor	Carbon Steel	316L	KCMSS Duplex
Weight per meter (DN150)	28.2kg	29.1kg	28.5kg
Support spacing	4.5m	5.0m	6.2m
Foundation loads	100%	103%	101%

2. Mechanical & Physical Properties

Q3: What are the guaranteed mechanical properties?

KCMSS provides certified test results exceeding minimum standards:

Property	ASTM Minimum	KCMSS Typical	Test Method
Tensile Strength	620 MPa	680-750 MPa	ASTM A370
Yield Strength	450 MPa	480-550 MPa	ASTM A370
Elongation	25%	28-35%	ASTM A370
Hardness	290 HB	260-280 HB	ASTM E10
Impact (-40°C)	40J	60-80J	ASTM A370

Q4: How does thermal expansion affect installation?

Thermal behavior comparison:

Temperature (°C)	Carbon Steel (μm/m·°C)	KCMSS Duplex (μm/m·°C)
20-100	11.7	13.0
20-200	12.3	13.5
20-300	13.0	14.0
Design Recommendation	Requires expansion loops every 30m	Requires loops every 25m

3. Manufacturing & Quality Control

Q5: What welding processes does KCMSS employ?

KCMSS’s proprietary EFW technology:

Process Stage	Technology	Quality Control
Edge Prep	Laser profiling	±0.1mm tolerance
Welding	Dual TIG with ER2209	100% UT/RT
Heat Treatment	1040-1100°C solution annealing	Continuous temp monitoring
Finishing	Automated polishing	Ra ≤ 1.6μm

Q6: What quality certifications are available?

KCMSS maintains comprehensive certifications:

Certification	Scope	Frequency
PED 2014/68/EU	All pipes	Annual
NORSOK M650	Offshore grades	Per project
DNV GL-ST-F101	Subsea applications	Batch testing
API 5LC	Line pipe applications	Continuous

4. Corrosion Resistance

Q7: How does it perform in chloride environments?

Comparative corrosion test data (ASTM G48):

Condition	316L	6Mo	KCMSS S32205
10% FeCl₃, 22°C	Failed at 24h	0.5mm/yr	0.02mm/yr
50°C, 6% NaCl	2.1mm/yr	0.3mm/yr	0.05mm/yr
SCC Threshold	25°C	80°C	>100°C

Q8: What is the maximum service temperature?

Temperature limitations:

Environment	Maximum Temperature
Dry air	300°C
Wet H₂S	200°C
Acid service	150°C
Alkaline	250°C

5. Applications & Selection Guidance

Q9: When should I choose S31803 vs S32205?

Selection criteria:

Parameter	S31803 Recommended When	S32205 Recommended When
PREN Need	>35	>38
Cost Sensitivity	Budget constrained	Performance critical
Availability	Standard projects	Long lead time acceptable
Wall Thickness	>15mm	<15mm

Q10: What are typical delivery lead times?

KCMSS production schedule:

Pipe Size	Standard Stock	Custom Production
1/2″-4″	In stock	1-3 weeks
5″-12″	In stock	1-3 weeks
14″-24″	In stock	1-3 weeks
>24″	In stock	1-3 weeks

6. Technical Support

Q11: What engineering support does KCMSS provide?

Value-added services:

Service	Description	Typical Response Time
Material Selection	Application review	48 hours
Failure Analysis	Root cause investigation	5 working days
Welding Procedure	WPS development	72 hours
Installation Support	Site supervision	Per request

Conclusion

KCM Special Steel’s ASTM A928 UNS S31803 EFW PIPE and SA928 S32205 Welded Duplex Pipes offer unmatched technical specifications for critical industrial applications. With complete chemical control, superior mechanical properties, and rigorous manufacturing standards, KCMSS continues to set benchmarks in duplex stainless steel pipe production. Engineers specifying these materials can be confident in their long-term performance across the most challenging operating environments.
