Fiber Media Converter

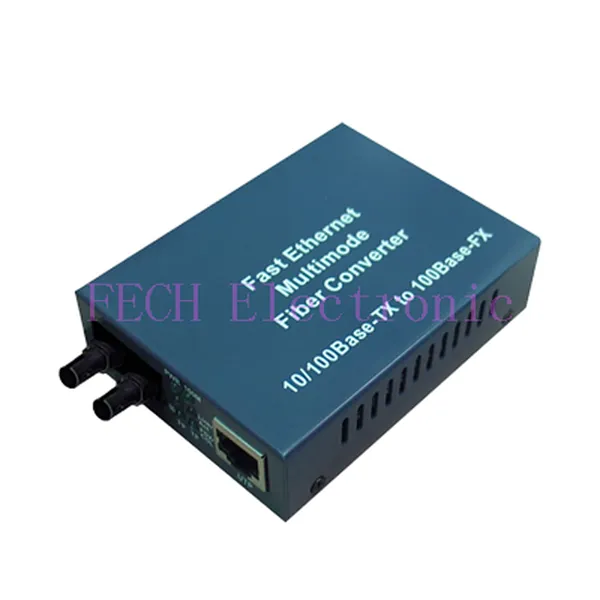

FSTM01
ST MM 10/100 Media Converter
- Model Code
- FSTM01
- Product Name
- ST MM 10/100 Media Converter
- Category
- Fiber Series
- Manufacturer
- FECH Electronic Limited
- Made In
- DongGuan, GuangDong, China
Product Detail
FSTM01 Specification
Features
- Full duplex and half–duplex transmission and capable of automatic negotiation.
- Efficient builtin switching core,to implement flow control and reduce broadcast packets.
- The transmission of extra-long packes over VLAN
- The selection of mutiple types of fiber ports such as dual-fiber multi-mode.
- Dual-fiber single–mode and single–fiber single–mode, to satisty the extended requirements of users.
Specification
| Part Number | Description |
|---|---|
| FSTM01-2KM | ST MM 10/ 100M Media Converter, 2KM |
| Parameter | Specifications |
|---|---|
| Access mode | 10/ 100Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u , 100Base-TX /FX Fast Ethernet, IEEE802.3x Flow control, IEEE802.1q VLAN , IEEE802.1p QoS , IEEE802.1d Spanning Tree |
| Wavelength | 850nm / 1310nm / 1550nm |
| Transmission distance | Dual-fiber multi-mode: 2Km ; Dual-fiber single-mode: 25/40/60/80/100/ 120Km ; Single-fiber single-mode: 25/40/60/80/ 100Km Category-5 twisted pair: 100m |
| Port | One RJ45 connector, connected to STP / UTP category-5 twisted pair One fiber port: Multi-mode - SC or ST (fiber size: 50,62.5/125µm) Single mode - SC/FC fiber port (fiber size: 9/125µm) Single-fiber single-mode - SC/FC fiber port (fiber size: 9/125µm) |
| Conversion mode | Medium conversion, storing and forwarding |
| MAC address table | I K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half duplex state: back pressure mode |
| Delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | Power TX link ( fiber link action ), TP LINK1000 , TP LINK100 , TP ACT ) FDX (FX full duplex mode), FX100 (Fiber, with a transmission rate of 100M ) TP1 /2/3/4 LINK/ACT (1/2/3/4-port twisted pairs connection action) TP1 /2/3/4100 (1/2/3/4-port twisted pairs, with a transmission rate of 100M ) |
| Power | AC220 0.5A /PC-48( builtin ) |
| Power consumption | 5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Storage temperature | -40~70ºC |
| Storage humidity | 5%~90% (non-condensing) |
| Dimensions | 140mm × 111 × 30mm (in) 95 × 70 × 26mm (out) |
