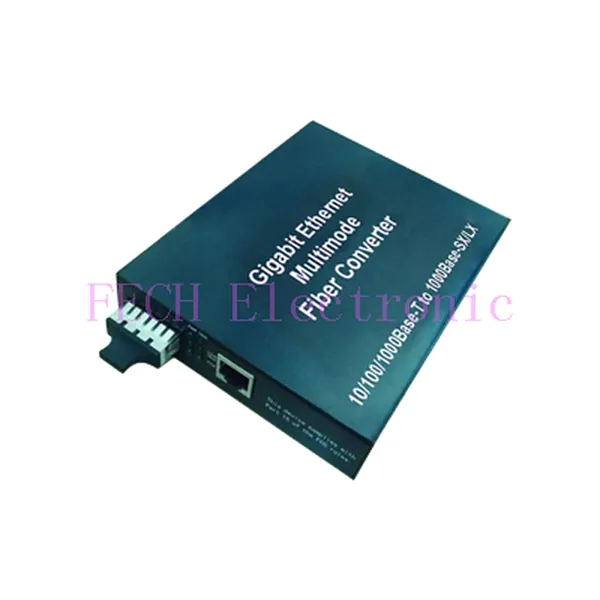

SC MM 10/100/1000M Media Converter - FECH FSCM11
FSCM11

SC MM 10/100/1000M Media Converter

Model Code
FSCM11
Product Name
SC MM 10/100/1000M Media Converter
Range
Fiber Media Converter
Category
Fiber Series
Manufacturer
FECH Electronic Limited
Made In
DongGuan, GuangDong, China
Request A Quote Ask About A Sample

Email [email protected] or call 86 769 8312 5353.

Product Detail

FSCM11 Specification

Features

  • Full duplex and half–duplex transmission and capable of automatic negotiation.
  • Efficient builtin switching core,to implement flow control and reduce broadcast packets.
  • The transmission of extra-long packes over VLAN
  • The selection of mutiple types of fiber ports such as dual-fiber multi-mode.
  • Dual-fiber single–mode and single–fiber single–mode, to satisty the extended requirements of users.

Specification

Part NumberDescription
FSCM11-550MSC MM 10/100/ 1000M Media Converter, 550M
FSCM11-2KMSC MM 10/100/ 1000M Media Converter, 2KM
ParameterSpecifications
Access mode10/100/ 1000Mbps
StandardIEEE802.3 10Base-T Ethernet, IEEE802.3u , 100Base-TX /FX Fast Ethernet, IEEE802.3x Flow control, IEEE802.1q VLAN , IEEE802.1p QoS , IEEE802.1d Spanning Tree
Wavelength850nm / 1310nm / 1550nm
Transmission distanceDual-fiber multi-mode: 2Km ; dual-fiber single-mode: 25/40/60/80/100/ 120Km ; single-fiber single-mode: 25/40/60/80/ 100Km Category-5 twisted pair: 100m
PortOne RJ45 connector, connected to STP / UTP category-5 twisted pair One fiber port: Multi-mode - SC or ST (fiber size: 50,62.5/125µm) Single mode - SC/FC fiber port (fiber size: 9/125µm) Single-fiber single-mode - SC/FC fiber port (fiber size: 9/125µm)
Conversion modeMedium conversion, storing and forwarding
MAC address tableI K
Buffer space1Mbit
Flow controlFull duplex state: flow control; half duplex state: back pressure mode
Delay9.6us
Bit error rate<1/1000000000
MTBF100,000 hours
LEDPower TX link ( fiber link action ), TP LINK1000 , TP LINK100 , TP ACT ) FDX (FX full duplex mode), FX100 (Fiber, with a transmission rate of 100M ) TP1 /2/3/4 LINK/ACT (1/2/3/4-port twisted pairs connection action) TP1 /2/3/4100 (1/2/3/4-port twisted pairs, with a transmission rate of 100M )
PowerAC220 0.5A /PC-48( builtin )
Power consumption5W
Operating temperature-10~55ºC
Operating humidity5%~90%
Storage temperature-40~70ºC
Storage humidity5%~90% (non-condensing)
Dimensions140mm * 111 * 30mm (in) 95 × 70 × 26mm (out)

Specification text and tables above are the data published by FECH Electronic Limited for FSCM11.
