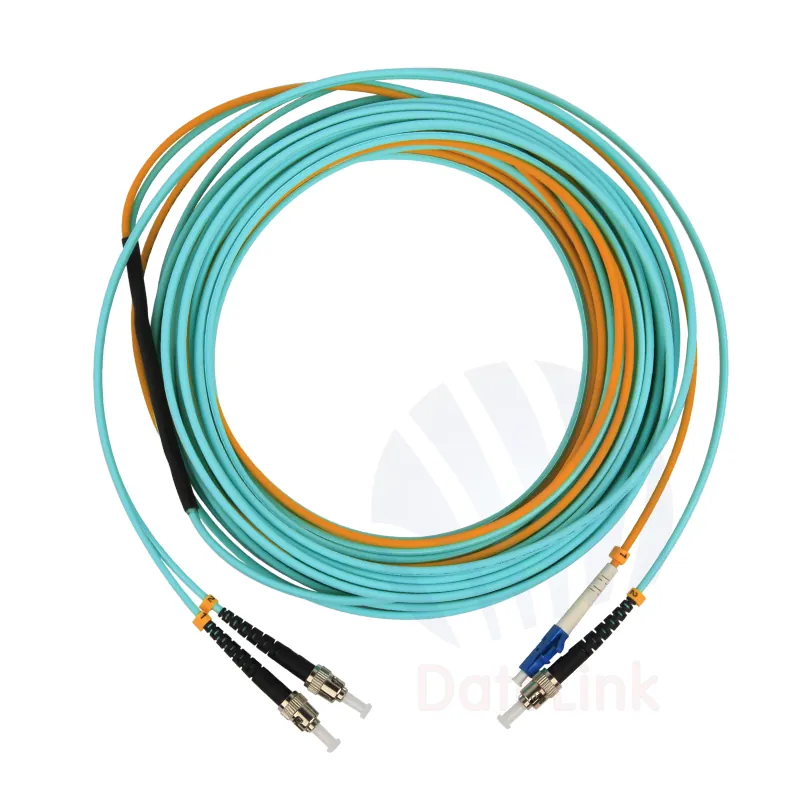

Mode Conditioning Patch Cord

Fiber Optic Patch Cord

Mode Conditioning Patch Cord

LC stands for Lucent Connector. The LC is a small form-factor Fiber optic connector. The LC Connector uses a 1.25 mm ferrule, half the size of the SC. Otherwise; it is a standard ceramic Ferrule connector. The LC has good performance and is highly favored for single mode. APC polish is with an angle for 8 degrees in the ferrule. ST stands for Straight Tip – a quick release bayonet style Connector developed by AT&T. STs were predominant in the late 80s and early 90s.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

Fiber Optic Patch Cord

Key attributes

Industry-specific attributes

Type Optical Fibers

Other attributes

Connector A LC/SC/FC/ST/E2/MU/MTRJ Connector B LC/SC/FC/ST/E2/MU/MTRJ
Fiber Count Simplex/DupleX Fiber Grade SM/0M1/2/3/4/5
Fiber Mode 9/125 &50/125 &62.5/125 Wavelength 1310/1550& 850/1300
Polarity A (Tx) to B (Rx) Cable Type Easy Strip
Cable Outside Diameter(0D) 1.2mm-3.0mm Cable Jacket PVC/LSZH/QFNR/OFNR
Min. Bend Radius
(0ptical Fiber)		 10.mm/7.5mm Min. Bend Radius
(Fiber Cable)		 10/5D &20/10D(Dynamic/static)
Insertion Loss ≤0.3dB Return Loss ≥50db/>30db
Operating Temperature -20 to 70°C (-4 to 158°F) Storage Temperature -40 to 80°C (-40 to 176°F)

Packaging and delivery

Packaging Details Carton
Port Shenzhen, China

Supply Ability

Supply Ability 100000 Piece/Pieces per Month



Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.

Related Products

View all Fiber Optic Patch Cord
FC/UPC 12 colors PigtailFC/UPC 12 colors PigtailFiber Optic Patch CordSC/APC – SC/APC 24F0 Break-out Patch CordSC/APC – SC/APC 24F0 Break-out Patch CordFiber Optic Patch CordPre-connectorized PigtailPre-connectorized PigtailFiber Optic Patch CordPigtail With Roseta KitPigtail With Roseta KitFiber Optic Patch CordLC/UPC – LC/UPC Break-out patch cordLC/UPC – LC/UPC Break-out patch cordFiber Optic Patch CordSC/APC 12 Colors PigtailSC/APC 12 Colors PigtailFiber Optic Patch CordSC/UPC PigtailSC/UPC PigtailFiber Optic Patch CordFC/APC PigtailFC/APC PigtailFiber Optic Patch Cord

Ordering Mode Conditioning Patch Cord

Is Datolink a manufacturer or a trading company?
Datolink is a manufacturer based in Shenzhen, China. The company was officially founded in January 2013 and holds its own import and export licence. Production covers fiber optic patch cords, pigtails, adaptors, connectors, PLC splitters and fast connectors, alongside fiber test equipment and structured cabling components.
Can I order a sample of Mode Conditioning Patch Cord before placing a bulk order?
Yes. Samples below USD 10 are available with the freight paid by the customer, and sample orders below USD 50 are accepted. That sample value is credited as a discount against the formal order.
What is the lead time and how do I place an order?
Send a list of the products you need by email or WhatsApp, including quantity and description. Datolink replies with a proforma invoice and bank details. Delivery time is generally 5 working days after payment is received.
What is your production capacity for patch cords?
Datolink produces about 12,000 connectors per day and over 300,000 pcs of connectors per month. As an example, an order of fewer than 1,000 pcs of duplex patch cord can be shipped within 3 days.
Which payment and delivery terms do you accept?
Delivery terms: FOB, CFR, CIF, EXW and FCA. Payment methods: T/T, Alibaba, PayPal, Western Union and cash. Payment currencies: USD, EUR and CNY.
What warranty applies to Mode Conditioning Patch Cord?
Datolink offers 12 months on fiber optic passive products. All exported products comply with international quality and safety standards. If a quality complaint arises, contact the sales team with the details; defective samples may be requested for further evaluation and testing.
Do you accept OEM and ODM orders and small quantities?
Yes. OEM and ODM orders are welcome, and small orders are accepted. Pricing is quantity based, so a larger quantity gives a better unit price.
How will the goods be shipped?
For orders under 50 kg, express couriers such as DHL, TNT, UPS and FedEx are normally used. For bulk orders, sea freight is more economical but takes longer. If you have your own forwarder in China, Datolink can deliver to your agent.

Need A Quotation For Mode Conditioning Patch Cord?

Send the model, quantity and connector type. The Datolink sales team replies within 12 to 24 hours on working days.
