GP(05)-B

Indoor/Outdoor Wall-Mounted Patch Panel

GP(05)-B

Available for small capacity communication system, wall mounting, reasonable and compact structure.The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cords.Provides various accessories to avoid any unexpected damage to the fiber.Wall mountable with lockable doors for security, supplied unloaded or loaded with the adapter of your choice.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

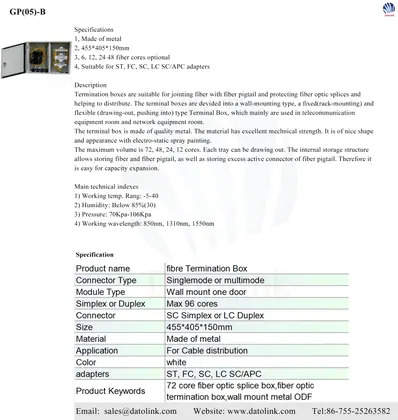

Indoor/Outdoor Wall-Mounted Patch Panel

Specifications：

1, Made of metal

2, 455*405*150mm

3, 6, 12, 24 48 fiber cores optional

4, Suitable for ST, FC, SC, LC SC/APC adapters

Description：

Termination boxes are suitable for jointing fiber with fiber pigtail and protecting fiber optic splices and helping to distribute. The terminal boxes are devided into a wall-mounting type, a fixed(rack-mounting) and flexible (drawing-out, pushing into) type Terminal Box, which mainly are used in telecommunication equipment room and network equipment room.

The terminal box is made of quality metal. The material has excellent mechnical strength. It is of nice shape and appearance with electro-static spray painting.

The maximum volume is 72, 48, 24, 12 cores. Each tray can be drawing out. The internal storage structure allows storing fiber and fiber pigtail, as well as storing excess active connector of fiber pigtail. Therefore it is easy for capacity expansion.

Product details：

Product name GP(05)-B
Connector Type Singlemode or multimode
Module Type Wall mount one door
Simplex or Duplex Max 96 cores
Connector SC Simplex or LC Duplex
Size 455*405*150mm
Material Made of metal
Application For Cable distribution
Color white
adapters ST, FC, SC, LC SC/APC
Product Keywords 72 core fiber optic splice box,fiber optic termination box,wall mount metal ODF

Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.
