Fiber Optic Fusion Splicing

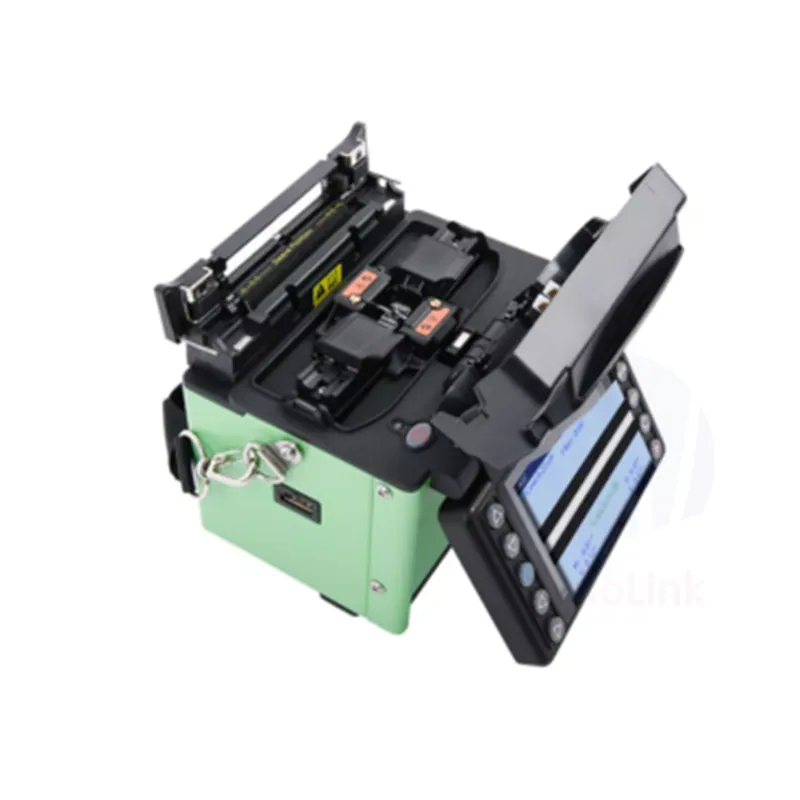

FTTH Optical Fiber Fusion Splicer KL-500E
Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
- Brand
- Datolink
- Manufactured in
- Shenzhen, Guangdong, China
- Warranty
- 12 months
- OEM and ODM
- Accepted
Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.
| Fiber type | SM（G.652 & G.657）、MM（G.651）、DS（G.653）、NZDS（G.655） | |||||||||
| Applicable Fibers | 0.25~3.0mm/leather fiber optic cable | |||||||||
| Fiber optic fixture | Interchangeable universal fixture | |||||||||
| Diameter | Cladding diameter:80-150μm，Coating diameter100~1000μm | |||||||||
| Typical fusion loss | SM:0.03dB/MM:0.01dB/DS:0.04dB/NZDS:0.04dB/ | |||||||||
| Return loss | ＞＞60dB | |||||||||
| Welding/heating time | 8s(SM G652 Quick Mode)/18s(SM G652 250μm 40mm Heat Shrink Tubing In rapid situations） |
|||||||||
| Battery Capacity | Built in lithium battery 11.8V power supply, external adapter, input: AC100-240V | |||||||||
| Electrode life | 5000 times | |||||||||
| Weight | 1.15kg without battery/1.48kg with battery | |||||||||
| Size | (L*W*H)125*105*113mm(including rubber bumper) | |||||||||
Certification
CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.
Inspection
IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.
Export
Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.
