Fiber Tray type D

Optical Fiber Splice Tray

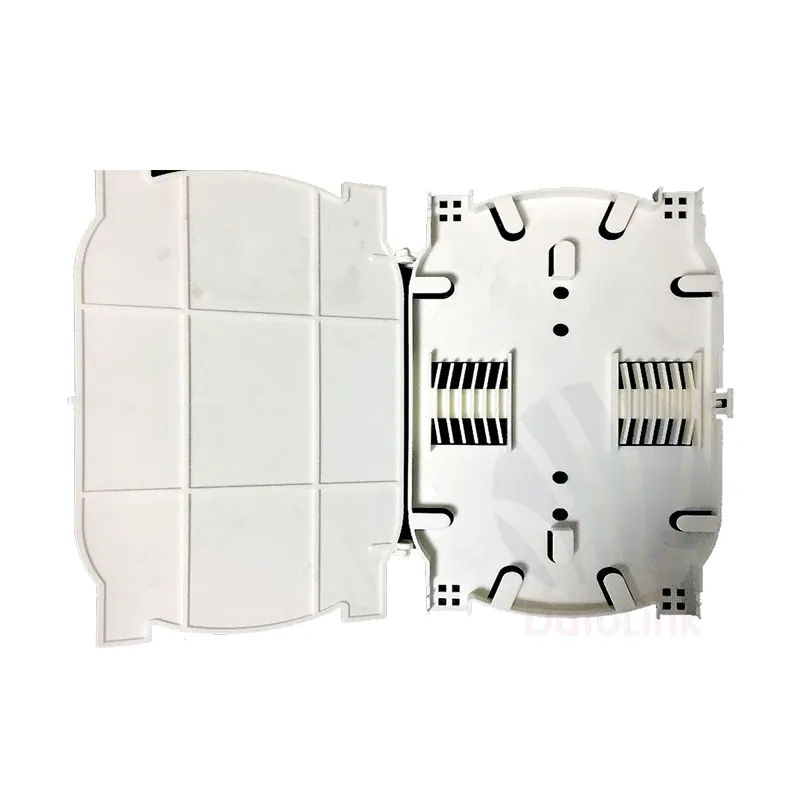

Fiber Tray type D

Fiber optic splice trays provide the function of protection, storage and splicing fibers. They allow fiber is installed in a guided and orderly, serving with the radius of curvature.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

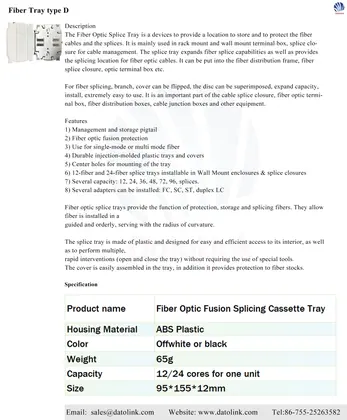

Optical Fiber Splice Tray

Description：

The Fiber Optic Splice Tray is a devices to provide a location to store and to protect the fiber cables and the splices. It is mainly used in rack mount and wall mount terminal box, splice closure for cable management. The splice tray expands fiber splice capabilities as well as provides the splicing location for fiber optic cables. It can be put into the fiber distribution frame, fiber splice closure, optic terminal box etc.

For fiber splicing, branch, cover can be flipped, the disc can be superimposed, expand capacity, install, extremely easy to use. It is an important part of the cable splice closure, fiber optic terminal box, fiber distribution boxes, cable junction boxes and other equipment.



Features：

1) Management and storage pigtail

2) Fiber optic fusion protection

3) Use for single-mode or multi mode fiber

4) Durable injection-molded plastic trays and covers

5) Center holes for mounting of the tray

6) 12-fiber and 24-fiber splice trays installable in Wall Mount enclosures & splice closures

7) Several capacity: 12, 24, 36, 48, 72, 96, splices.

8) Several adapters can be installed: FC, SC, ST, duplex LC



Specifications：

Product name Fiber Optic Fusion Splicing Cassette Tray
Housing Material ABS Plastic
Color Offwhite or black
Weight 65g
Capacity 12/24 cores for one unit
Size 95*155*12mm



Application：

1. Fiber optic distribution frame

2. FTTH terminal box

3. Fiber optic splice closures

4. Optical cabinet

Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.
