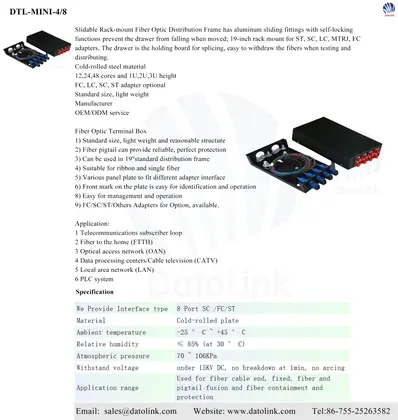

DTL-MINI-4/8

Fiber Optic Patch Panel&ODF

DTL-MINI-4/8

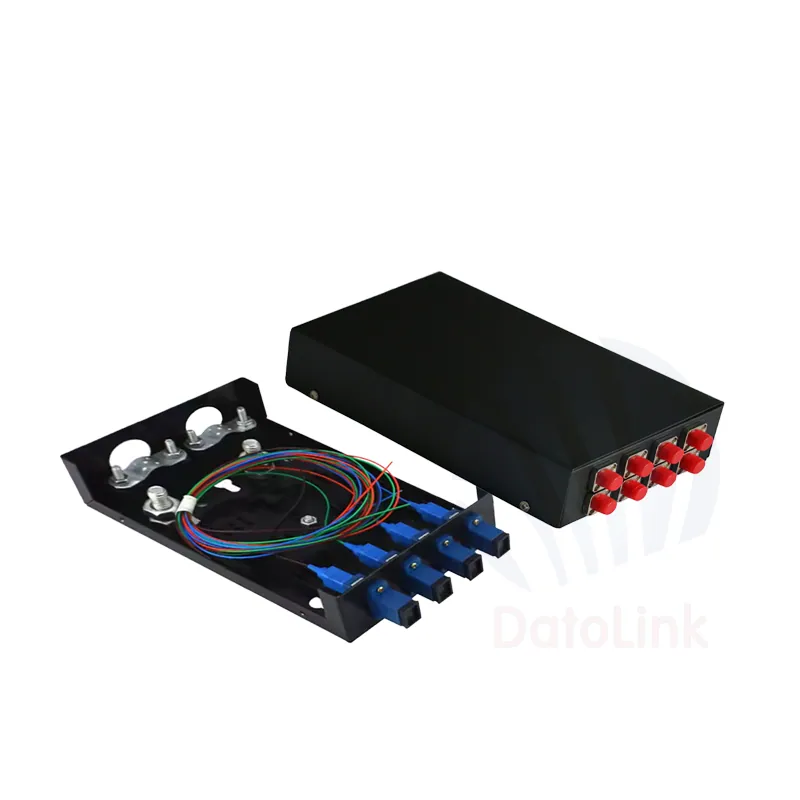

Slidable Rack-mount Fiber Optic Distribution Frame has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

Fiber Optic Patch Panel&ODF

Fiber Optic Terminal Box：

1) Standard size, light weight and reasonable structure 2) Fiber pigtail can provide reliable, perfect protection 3) Can be used in 19”standard distribution frame 4) Suitable for ribbon and single fiber 5) Various panel plate to fit different adapter interface 6) Front mark on the plate is easy for identification and operation 8) Easy for management and operation 9) FC/SC/ST/Others Adapters for Option, available.

Application

1 Telecommunications subscriber loop
2 Fiber to the home (FTTH)
3 Optical access network (OAN)
4 Data processing centers/Cable television (CATV)
5 Local area network (LAN)
6 PLC system



We Provide Interface type 8 Port SC /FC/ST
Material Cold-rolled plate
Ambient temperature -25 ° C ~ +45 ° C
Relative humidity ≤ 85% (at 30 ° C)
Atmospheric pressure 70 ~ 106KPa
Withstand voltage under 15KV DC, no breakdown at 1min, no arcing
Application range Used for fiber cable end, fixed, fiber and pigtail fusion and fiber containment and protection



Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.
