UKK-80 Din Rail Terminal Block Box

The UKK-80 din rail terminal block box is a universal power junction box,which is used in the distribution cabinet,distribution box.

Dimension(LxWxH): 30x69x49 mm
Material: Shell: Flame resistant Nylon PA66 Terminal: Brass tinned

Request A Quote Email Us Request A Sample

GroupABC Accessories

CategoryDistribution Boxes and Enclosures

StandardsIEC and GB

CustomisationOEM and non standard accepted

Overview Specifications Gallery Ordering FAQ Related

Overview

UKK-80 Din Rail Terminal Block Box Description

Product Technical Parameter Overview

Description of UKK-80 Din Rail Terminal Block Box

The UKK-80 din rail terminal block box is a universal power junction box,which is used in the distribution cabinet,distribution box and other high voltage cabinet to branch the main line.It has 1 input hole and 6 output hole.The cable range of 1 input hole is 6 to 16 mm2,the cable range of 6 output hole is 4x(2.5 to 6)mm2,2x(2.5 to 16)mm2.

Material

Shell: Flame retardant PA,which is high temperature resistance and strong insulation performance.

Terminal: Brass tinned,which is firm and durable, with strong corrosion resistance and good conductivity.

Screw: Zinc steel,metric thread screw,which is easy to installation.

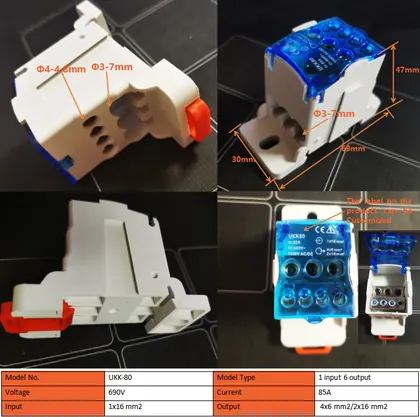

UKK-80 Din Rail Terminal Block Box Actual Product Size Chart

Installation Diagram

The UKK-80 is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High conductivity with excellent electrical contacts.It is install with 35mm wide din rail or chassis mounting with screw.

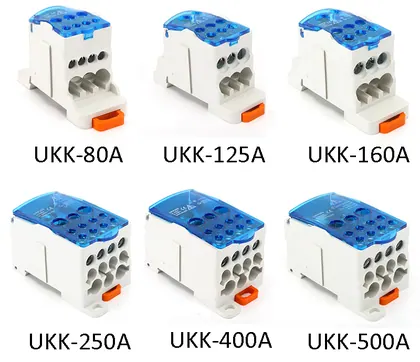

All Model Parameter

Terminal Block Terminal Box

Catalog Download Here

Hot tage: Terminal block, Terminal box, din rail terminal block, Terminal Block Box, power junction box

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Product Model	UKK-80
Current	85A
Rated Voltage	690V
Color	Blue and Gray
Input	1×16 mm2
Output	4×6 mm2/2×16 mm2
Dimension(LxWxH)	30x69x49 mm
Material	Shell: Flame resistant Nylon PA66 Terminal: Brass tinned
Connection method	Screw Connection
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
Logo	Customized
Certification	ISO9001
Sample	Free supply
Original	China

Item No.	Current(A)	Voltage(V)	Conductors with starfix temules X-section(mm2)	Hole NO.(pcs)	Dimension(LWH)(mm)
UKK-80	85	690 IEC	Input 6 to 16	x1	306949
Output 2.5 to 6	x4
Output 2.5 to 16	x2
UKK-125	150	690 IEC	Input 10 to 35	x1	297746
Input 6 to 16	x4
Output 2.5 to 16	x6
UKK-160	200	690 IEC	Input 10 to 35	x1	297746
Input 6 to 16	x4
Output 2.5 to 16	x6
UKK-250	255	690 IEC	Input 35 to 120	x1	479650
Output 6 to 35	x2
Output 2.5 to 16	x5
Output 2.5 to 10	x4
UKK-400	335	690 IEC	Input 95 to 185	x1	479650
Output 6 to 35	x2
Output 2.5 to 16	x5
Output 2.5 to 10	x4
UKK-500	520	690 IEC	Input 3×15.5×0.8 to 8×24	x1	499650
Output 6 to 35	x2
Output 2.5 to 16	x5
Output 2.5 to 10	x4

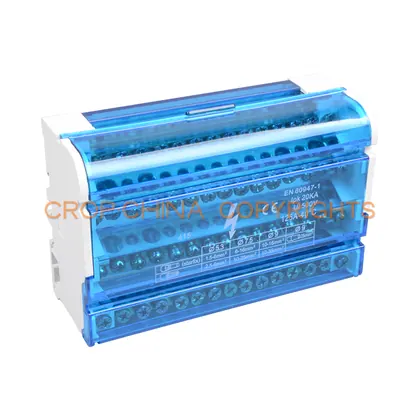

Product Images

Ordering and Support

From Enquiry To Delivered Order

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?

Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.

Is UKK-80 Din Rail Terminal Block Box available as a sample before a production order?

Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.

Which standards do CROP products follow?

All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.

Can items be produced to our own drawing?

Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.

How do I obtain the PDF catalogue?

The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
