Distribution Boxes and Enclosures

Distribution Boards Surface Mount with DIN Rail

An electriccal junction box also name as distribution box.The electrical junction box is an enclosure housing electrical connections.

  • Surface Mount with DIN Rail Description of electrical junction box An electrical junction box also name as distribution box,it is
Request A Quote Email Us Request A Sample
GroupABC Accessories
CategoryDistribution Boxes and Enclosures
StandardsIEC and GB
CustomisationOEM and non standard accepted
Distribution Boards Surface Mount with DIN Rail
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Distribution Boards Surface Mount with DIN Rail Description

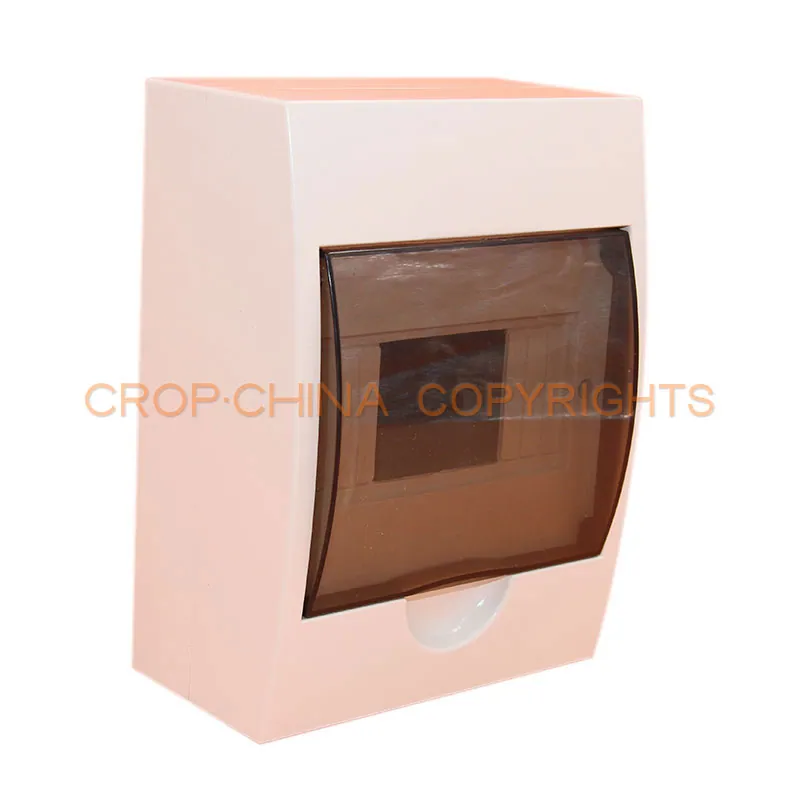

Surface Mount with DIN Rail

Description of Electrical Junction Box

An electrical junction box also name as distribution box,it is an enclosure housing electrical connections. Junction box protect the electrical connections from the weather,as well as prevent people from accidental electric shocks.

Material of Junction Box

Body material: ABS

Transparent door: PC

Earth / Natural bars: Brass

Material characteristics: Impact,heat,low temperature and chemical resistance,excellent electrical performance and suface gloss etc.

Certificates: CE,ROHS

Protection grade: IP50

Application of Distribution Box

The distribution box suitable for indoor and outdoor electric,communication,fire fighting apparatus,iron and steel smelting,petrochemical industry,electron,power system,railway,building,environmental equipment and so on.

Installation of Distribution Box

1.Inside: there are din rail inside for din-rail type circuit breakers,earth bar and natural bar for cable connection.

2.Outside: the products can be directly fixed on the wall or other flat boards with screw or nails via the screw holes in the base.

Outlet hole: the plastic plate in the hole can be knocked off for cables.

Specifications

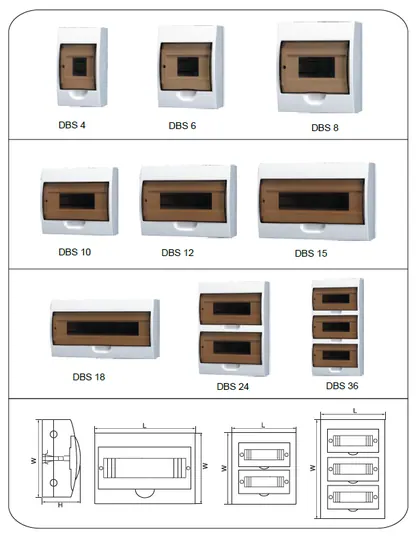

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

TypeModulesDimension(mm)
LWH
DBS 44 ways11220096
DBS 66 ways14820097
DBS 88 ways18420096
DBS 1212 ways25620063
DBS 1818 ways36420063
DBS 2424 ways270325100
DBS 3636 ways305473100

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Distribution Boards Surface Mount with DIN Rail available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
