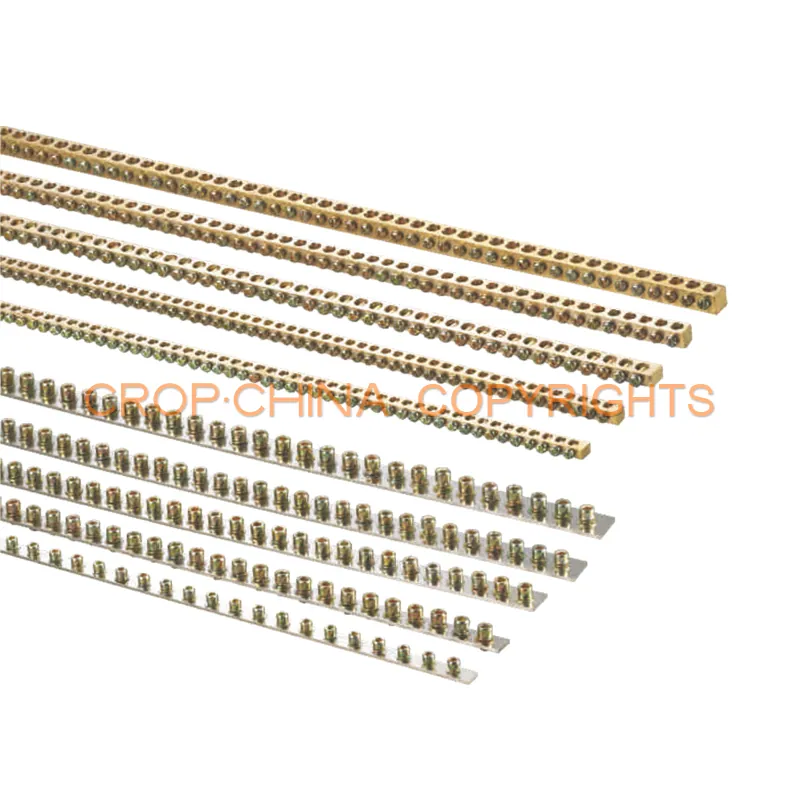

Terminal Block 1 Meter Series

Terminal Block material PA,Polyamide 66,94-2 grade,Inflaming retarding. ABS,good resist dissolve,good bounce impact fore.Working Temperature:-20℃ to 100℃

Terminal Block 1 Meter Series Material: Terminal block made of PA,Polyamide 66,94-2 grade,Inflaming retarding,Working Temperature:-30℃ to 110℃ ABS,good resist dissolve,good

Request A Quote Email Us Request A Sample

GroupABC Accessories

CategoryTerminal Blocks

StandardsIEC and GB

CustomisationOEM and non standard accepted

Overview Specifications Ordering FAQ Related

Overview

Terminal Block 1 Meter Series Description

Material

Terminal block made of PA,Polyamide 66,94-2 grade,Inflaming retarding,Working Temperature:-30℃ to 110℃ ABS,good resist dissolve,good bounce impact fore.Working Temperature:-20℃ to 100℃ Brass,Screw is iron plated zinc. Voltage:250-450v Color:according sample picture or customized.

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Section Cross	Ø	Hole	Screw(m)
6×8	5	133	4
6×9	5.2	133	4
7×10	6.5	110	5
7×11	7	110	5
8×8	5	133	4
8×10	6.5	110	5
8×12	7.5	100	5
9×9	5.2	133	4
9×14	8	100	5
10×10	6.5	110	5
12×12	7.5	100	5
3×15		60	5
3×20		52	8
3×25		52	8
3×30		52	8

Ordering and Support

From Enquiry To Delivered Order

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?

Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.

Is Terminal Block 1 Meter Series available as a sample before a production order?

Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.

Which standards do CROP products follow?

All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.

Can items be produced to our own drawing?

Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.

How do I obtain the PDF catalogue?

The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
