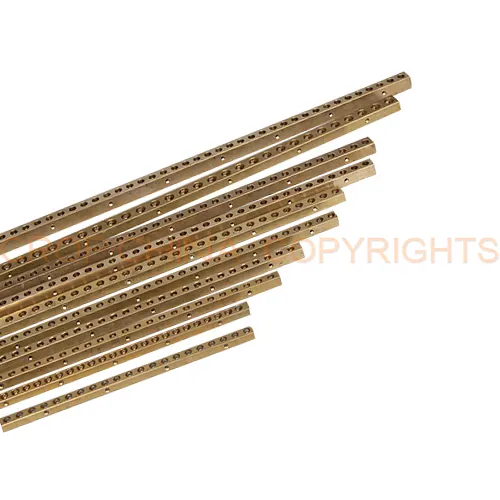

Neutral Bars Brass Terminal Block 1 Meter
Neutral bars also named brass terminal block,it is a important electric accessories used for wide range usage.such as switchgear,panel boards.
- Neutral Bars Brass Terminal Block 1 Meter- Supplier,Manufacturer,OEM Neutral bars also named brass terminal block,it is a important electric accessories
Overview
Neutral Bars Brass Terminal Block 1 Meter Description
Neutral Bars Brass Terminal Block 1 Meter- Supplier,Manufacturer,OEM
Neutral bars also named brass terminal block,it is a important electric accessories used for wide range usage.such as used for connecting wires to switchgear,panel boards,distribution box and so on.
Material
It is made of brass,High strength and durability.
The Neutral bars is production by appropriately sized brass bars which cut according to specify length.At the bottom of the brass terminal block,it will drilled several mounting holes.The corresponding specification will have the corresponding number of holes for connecting wires. There will be a screw in each hole.The standard length is 1 Meter.For example,the Specification is 6×8,the hole number is 120 pcs,length is 1 meter,the mounting hole distance is 42mm,the width is 6mm and the height of brass terminal is 8 mm.If you have different requiremnt,such as you need more holes,please contact us,we can do OEM.
Parameter
Drawing of Neutral Bars
CROP is the manufacturer who is specilized in brass terminal block,we can do the OEM products and custimzed products,If you need other requirement of neutral bars,please feel free contact us with your drawings,we can produce the same product with your drawings.
Related Product
Catalogue download
Specifications
Codes Ranges and Dimensions
Figures below are reproduced from the CROP catalogue for this item.
| Specification | Hole No. | Length | Mounting hole distance D (mm) | Width W (mm) | Height H (mm) |
|---|---|---|---|---|---|
| 6×8 | 120 | 1M | 42 | 6 | 8 |
| 6×9 | 120 | 1M | 38 | 6 | 9 |
| 8×8 | 110 | 1M | 45 | 8 | 8 |
| 8×10 | 110 | 1M | 46 | 8 | 10 |
| 8×12 | 122 | 1M | 50 | 8 | 12 |
| 9×9 | 110 | 1M | 46 | 9 | 9 |
| 9×14 | 80 | 1M | 62 | 9 | 14 |
| 10×10 | 105 | 1M | 47 | 10 | 10 |
| 10×12 | 100 | 1M | 50 | 10 | 12 |
| 12×12 | 100 | 1M | 50 | 12 | 12 |
Product Images
Ordering and Support
From Enquiry To Delivered Order
Send The Requirement
Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.
Quotation
Price, packing, carton quantity and lead time are confirmed against the catalogue reference.
Sample or Tooling
Samples are sent for approval. Parts that need a new mould go through the in house mould division.
Production and Shipment
Production to IEC and GB standards, then packing and shipment on the agreed terms.
