Distribution Boxes

Terminal Block Distribution Box Din Rail Terminal Block UKK Series

CROP terminal block distribution box UKK series is used for distribution cabinet,distribution box to branch the mian line.

Material: Shell: Flame resistant Nylon PA66 Terminal: Brass tinned

Request A Quote Email Us Request A Sample

GroupABC Accessories

CategoryDistribution Boxes

StandardsIEC and GB

CustomisationOEM and non standard accepted

Terminal Block Distribution Box Din Rail Terminal Block UKK Series

Overview Specifications Gallery Ordering FAQ Related

Overview

Terminal Block Distribution Box Din Rail Terminal Block UKK Series Description

Terminal Block Distribution Box Din Rail Terminal Block

Description

The terminal block distribution box plays an important role in branching the mian line.Generally it is used for distribution cabinet and various high voltage cabinet.An electric power distribution terminal block is a convenient, economical and safer way to distribute power from a single input source to multiple outputs.It is always used with the din rail,so it is also named din rail terminal block.

Product Parameter

Material of Din Rail Terminal Block

Terminal material: the terminal is made of excellent brass tinned,which is firm and durable,with strong corrosion resistance and good conductivity.

Shell material: the shell is made of Flame retardant nylon material,which is high strength and strong insulation performance.

Screw material: zinc steel,metric thread screw.

Features of Terminal Block Distribution Box

●Made of flame-retardant shell, it is high temperature resistant and corrosion resistant.

●The installation is simple and safety.The terminal block distribution box is easy and quick to install on the din rail.

●The transparent cover can easily see if the cable is conneted reliably.

●Cable fixing screw diameters＞95% fill ratio: excellent electrical.

●Clip-on DIN rail or mount to panel with screws: easy fixing.keeping only one input, the blocks can be connected in parallel using a jumper wire.

●DIN rail or panel mount

●Wire ready: captive termination screws shipped backed out to save time on conductor installations

Installation Diagram

The UKK series terminal block distribution box is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High conductivity with excellent electrical contacts.It is install with 35mm wide din rail or chassis mounting with screw.

Terminal Block Terminal Box

Catalog Download Here

Hot tage: Terminal block,Terminal box,din rail terminal block

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Item No.	Current(A)	Voltage(V)	Conductors with starfix temules X-section(mm2)	Hole NO.(pcs)	Dimension(LWH)(mm)
CRUKK-80	85	690 IEC	Input 6 to 16	x1	306949
Output 2.5 to 6	x4
Output 2.5 to 16	x2
CRUKK-125	150	690 IEC	Input 10 to 35	x1	297746
Input 6 to 16	x4
Output 2.5 to 16	x6
CRUKK-160	200	690 IEC	Input 10 to 35	x1	297746
Input 6 to 16	x4
Output 2.5 to 16	x6
CRUKK-250	255	690 IEC	Input 35 to 120	x1	479650
Output 6 to 35	x2
Output 2.5 to 16	x5
Output 2.5 to 10	x4
CRUKK-400	335	690 IEC	Input 95 to 185	x1	479650
Output 6 to 35	x2
Output 2.5 to 16	x5
Output 2.5 to 10	x4
CRUKK-500	520	690 IEC	Input 3×15.5×0.8 to 8×24	x1	499650
Output 6 to 35	x2
Output 2.5 to 16	x5
Output 2.5 to 10	x4

Product Images

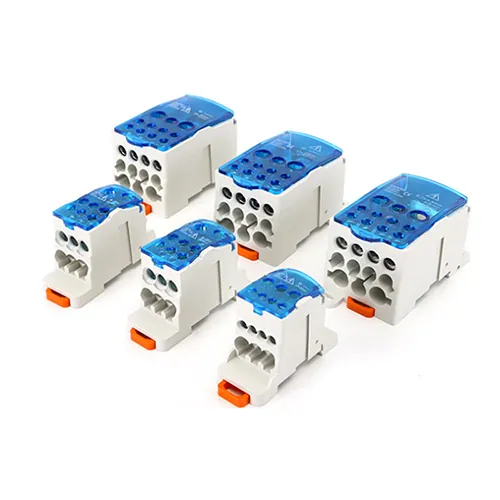

Terminal Block Distribution Box Din Rail Terminal Block UKK Series view

Ordering and Support

From Enquiry To Delivered Order

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?

Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.

Is Terminal Block Distribution Box Din Rail Terminal Block UKK Series available as a sample before a production order?

Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.

Which standards do CROP products follow?

All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.

Can items be produced to our own drawing?

Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.

How do I obtain the PDF catalogue?

The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
