Suspension Clamp

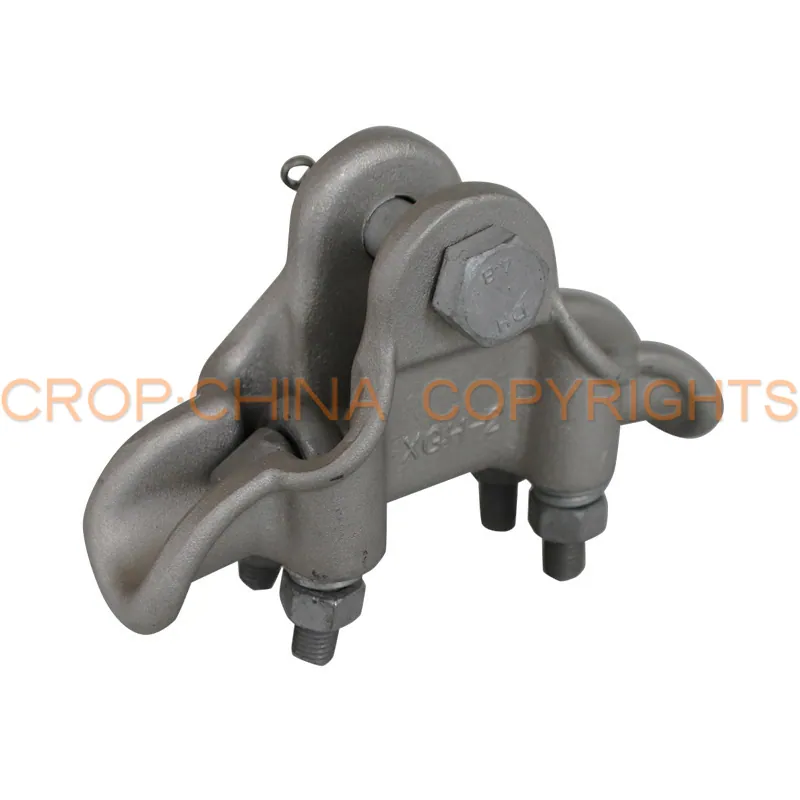

Suspension clamp Aluminum alloy

TYPE Conductor size Dimension Size (mm) Breaking Load Weight (mm) H C M R L KN （kg) XGH-2 5.1-12.5 52.5

  • TYPE Conductor size Dimension Size (mm) Breaking Load Weight (mm) H C M R L KN （kg) XGH-2 5.1-12.5 52.5
Request A Quote Email Us Request A Sample
GroupTransmission and Distribution
CategorySuspension Clamp
StandardsIEC and GB
CustomisationOEM and non standard accepted
Suspension clamp Aluminum alloy
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Suspension Clamp Aluminum Alloy

Suspension clamp Aluminum alloy is a catalogue reference in the Suspension Clamp range, part of the Transmission and Distribution group at CROP.

The catalogue entry for this reference carries the model code and the product illustration. Conductor range, dimensions, material and packing are confirmed against your requirement, so send the cable or conductor size and the quantity with your enquiry and the matching data sheet will be sent back with the quotation.

Items in this range are made to comply with IEC and GB standards, and non standard versions are produced to drawing through the CROP mould and tooling division.

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

TYPEConductor sizeDimension Size (mm)Breaking LoadWeight
(mm)HCMRLKN（kg)
XGH-25.1-12.552.5251618166401
XGH-312.4-1750.5231611.5200401.5
XGH-419-23.559.5271613.5225402.3
XGH-524.2-2870321616260604.4

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Suspension clamp Aluminum alloy available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.

Next Step

Get A Price For Suspension clamp Aluminum alloy

Send the code, the size and the quantity. Drawings for non standard versions are welcome.
