Distribution Boxes and Enclosures

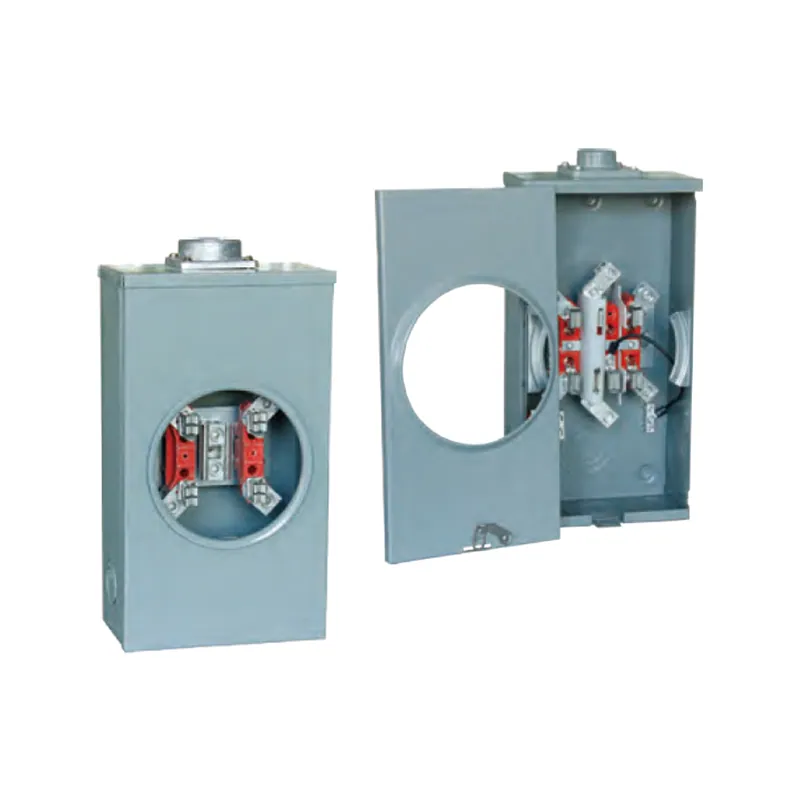

Square meter socket ring type

Standard square meter socket are manufactured from 1.2-1.5mm galvanized steel sheet with a baked gray powder polyester paint finish.

Square meter socket ring type Square Meter Socket Description 1.The Square meter socket made of die-cast Aluminium. 2.The current carrying parts made of

Request A Quote Email Us Request A Sample

GroupABC Accessories

CategoryDistribution Boxes and Enclosures

StandardsIEC and GB

CustomisationOEM and non standard accepted

Overview Specifications Gallery Ordering FAQ Related

Overview

Square Meter Socket Ring Type Description

Square Meter Socket Description

1.The Square meter socket made of die-cast Aluminium.

2.The current carrying parts made of phosphor copper.

3.The ground connector designed to in sure a positive electrical connection.

4.Stainless steel sealing ring.

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Type	Description	Fixed Hubs Size
H	W	D
CR-200A/4J	1 Phase,200A,4jaw,ring type	412	222	134
CR-200A/5J	1 Phase,200A,5jaw,ring type	412	222	134
CR-200A/7J	3Phase,200A,7jaw,ring type	498	235	136
CR-200AN/4J	1 Phase,200A,4jaw,ringless type	429	208	130
CR-200AN/5J	1 Phase,200A,5jaw,ringless type	429	208	130
CR-200AN/7J	3 Phase,200A,7jaw,ringless type	429	208	130
CR-20AN/13J	3 Phase,20A,13jaw,ringless type	360	210	95

Product Images

Ordering and Support

From Enquiry To Delivered Order

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?

Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.

Is Square meter socket ring type available as a sample before a production order?

Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.

Which standards do CROP products follow?

All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.

Can items be produced to our own drawing?

Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.

How do I obtain the PDF catalogue?

The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
