Sleeve Joint for ACSR conductors
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Sleeve Joint for ACSR Conductors Description

Sleeve joint for ACSR conductors is also named mid span joint,it is reliable, easy-to-install splicing method is perfect for overhead transmission and distribution lines.The joint compression for ACSR conductor not only satisfies the basic tension requirements, but also deals with the problems of conductor elongation and conductor misalignment during the high-temperature cycle.

Features of Mid Span Joint

  • Sleeve joint for ACSR conductor s is easy to install and perfect for CRIMP tools only.
  • It’s ideal for ACSR, 5005, 6201 and ACAR partial tension (40% tension rating) conductor jumper splicing.
  • Our aluminum alloy conductor recommendations include 5005 and ACAR having the same diameter as a given ACSR conductor shown below.
  • In addition, compressed (compact) conductor sizes within the same decimal conductor range are recommended

Suitable Conductor of Sleeve Joint

Suitable conductor of Sleeve joint is ACSR conductor. It is a kind of composite conductor with aluminum and steel wires stranded together. The aluminum wire is used for transmitting current, and the steel wire is used for strength. The combination of aluminum and steel makes ACSR conductor a suitable choice for high-voltage transmission lines.

Material of Sleeve Joint for ACSR Conductors

Joint of outer: Aluminum Joint of inner: hot dip galvanized steel

Related Product

Our mid span joint is manufactured according to international standards, and our experienced team can provide you with the technical support you need to ensure a successful installation. Contact us today to learn more!

Catalogue download

Specifications

Codes Ranges and Dimensions

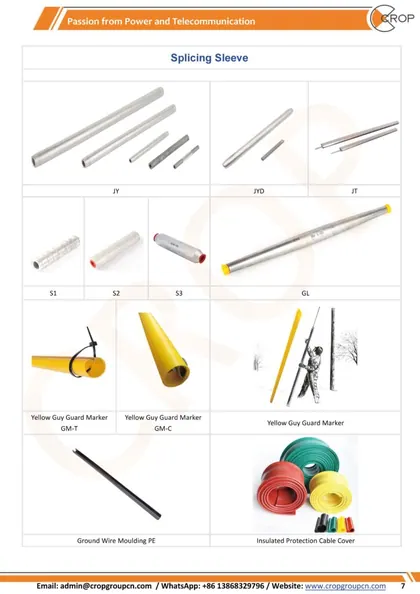

Figures below are reproduced from the CROP catalogue for this item.

Item No.Conductor(mm2)Dimension(mm)Grip Strength (kN)
DD1dd1LL1
JY-70/10JKLYGJ70/1026110134.536011021
JY-95/15JKLYGJ95/1526130155.743013031.5
JY-120/20JKLYGJ120/2030130166.243013036.9
JY-150/25JKLYGJ150/253015018.5750015048.7
JY-185/25JKLYGJ185/253215020.5752015053.5
JY-240/30JKLYGJ240/3036170237.957017068
