Splices and Sleeves

Compression Splice JY(AAC)

• For use with CRIMP tools only • For aluminum, ACSR, compact, 5005, 6201 and ACAR partial tension (40% tension rating) conductor jumper splicing • Aluminum alloy conductor recommendations include 5005 and ACAR having the same diameter as a given ACSR conductor shown below. In addition, compressed (compact) conductor sizes within the same decimal conductor range are recommended

  • OVERHEAD LINE SPLICES: AAC
  • • For use with CRIMP tools only • For aluminum, ACSR, compact, 5005, 6201 and ACAR partial tension (40% tension rating) conductor jumper splicing • Aluminum alloy conductor recommendations include 5005 and ACAR having the same diameter as a given ACSR conductor shown below. In addition, compressed (compact) conductor sizes within the same decimal conductor range are recommended
Request A Quote Email Us Request A Sample
GroupTransmission and Distribution
CategorySplices and Sleeves
StandardsIEC and GB
CustomisationOEM and non standard accepted
Compression Splice JY(AAC)
OverviewGalleryOrderingFAQRelated

Overview

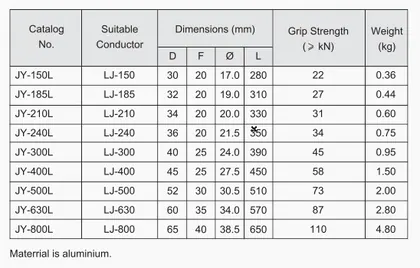

Compression Splice JY(AAC) Description

Compression Splice JY(AAC)

Full-tension conventional compression splices

Material

Body – Aluminum Alloy Factory inhibited

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

Is Compression Splice JY(AAC) available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.

Next Step

Get A Price For Compression Splice JY(AAC)

Send the code, the size and the quantity. Drawings for non standard versions are welcome.
