Round Meter Base Socket 100A single phase

Round Meter Base Socket 100Amps,120/240V AC,Single phase,4 terminals,2 or 3 wire Copper Jaw,Copper or aluminum connector,Gray color exterior.

  • Round Meter Base Socket 100A single phase Description The round meter base socket 100A single phase is made of die
Request A Quote Email Us Request A Sample
GroupABC Accessories
CategoryDistribution Boxes and Enclosures
StandardsIEC and GB
CustomisationOEM and non standard accepted
Round Meter Base Socket 100A single phase
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

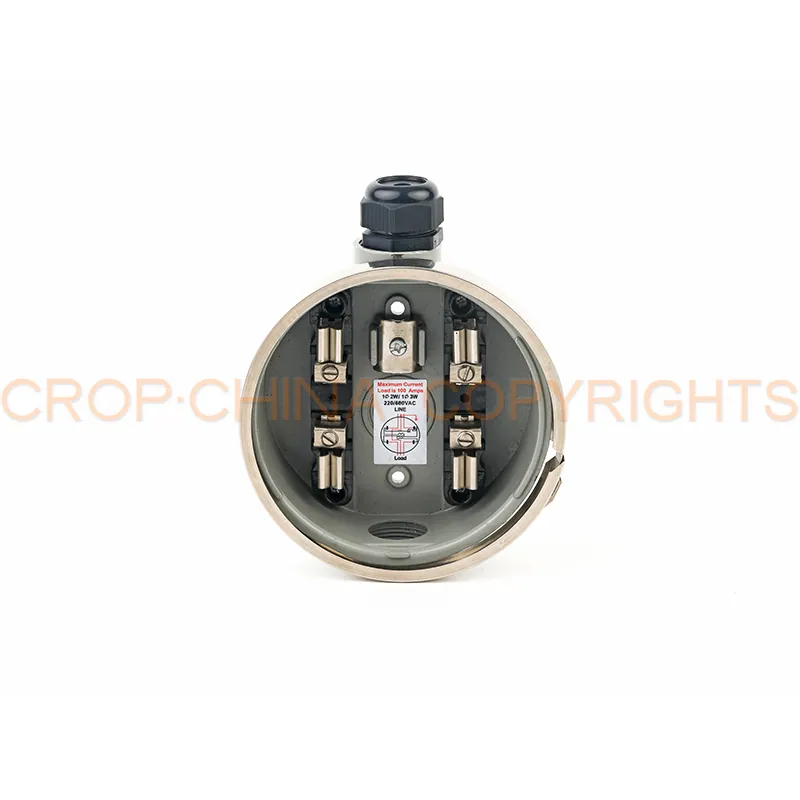

Round Meter Base Socket 100A Single Phase Description

Description

The round meter base socket 100A single phase is made of die cast aluminum.The electro-statically applied epoxy and polyester resins,which are baked on,from a durable,light gray exterior.The current carrying parts are mad of copper alloy.The ground connector is designed to insure a positive electrical connectio nby effectively clamping the conductor against a serrated surface.

1.Round meter socket 100Amps,120/240V AC,Single phase,4 terminals,2 or 3 wire Copper Jaw,Copper or aluminum connector.

2.The Die-cast Aluminum round meter socket,Gray color exterior.

3.The current carrying parts made of phosphor copper.

4.The ground connector is designed to in sure a positive electrical connection.

5.Stainless steel sealing ring.

6.Fix hub size:1/2,3/4,1,1-1/4 for option.

Application

1.Temporary service.

2.Outdoor advertising.

3.Small customer service.

4.Other low amperage requirements.

Round Meter Base Socket Accessories

Specifications

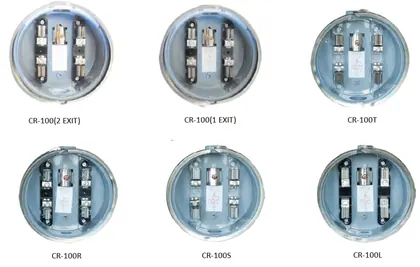

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

TypeDescriptionFixed Hubs Size
CR-100B1 Phase,100A,120/240Vac,4jaw1/2″
CR-100C1 Phase,100A,120/240Vac,4jaw3/4″
CR-100D1 Phase,100A,120/240Vac,4jaw1″
CR-100E1 Phase,100A,120/240Vac,4jaw1 1/4″

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Round Meter Base Socket 100A single phase available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
