Flexible Copper Wire and Connectors

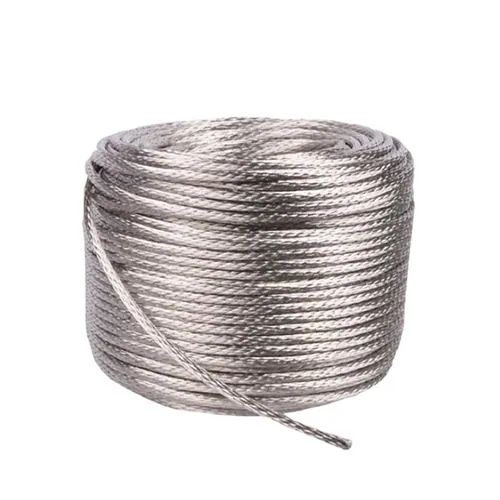

Round braided wire copper tinned

Round braided wire copper tinned is suitable for flexible electrical,conductive or electrical grounding wire use.It is made of 99.95% pure copper.

  • Round braided wire copper tinned is suitable for flexible electrical, conductive or electrical grounding wire use. It is made of 99.95% pure copper.
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryFlexible Copper Wire and Connectors
StandardsIEC and GB
CustomisationOEM and non standard accepted
Round braided wire copper tinned
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Round Braided Wire Copper Tinned Description

Description of Round Braided Wire Copper Tinned

1: Round braided wire copper tinned is suitable for flexible electrical,conductive or electrical grounding wire use. 2: It is made of greater than 99.95% pure copper 3: Uninsulated or insulated braided stranded wire

Material: bare copper with tin plated

Application： It is used for flexible electrical,conductive or grounding connection.It also used for non-horizontal live motion and as a power accessory in medium and low voltage circuit breakers. The construction of power distribution lines requires safety and reliability, maintaining power continuity, reducing line losses, improving transmission efficiency, and ensuring good power quality.

Customized available for special dimension,shapes and structure.We can according to your drawing customized.

Related Product of Round Braided Wire

If you want to know the Round braided wire price,please feel free contact us.

Email: [email protected];[email protected]

Mob: 0086 177 5778 8662 / Whatsapp: 0086 17757788662 / Wechat: WXL17757788662

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Cross-section (mm²)structureouter Diametercalculating weight （kg/km)
standard Cross-section (mm²)calculating Cross-section (mm²)
layers*No.of strands*No.of wires/singlewire diameter (mm)
2.52.603×48/0.152.225
43.964×57/0.153.238
55.035×57/0.153.451
66.316×57/0.153.761
77.047×57/0.153.971
87.677×65/0.154.174
1010.017×81/0.154.595
1212.097×97/0.155.0115
1615.957x3x43/0.156.5152
2020.407x3x55/0.157.8195
2524.857x3x67/0.158.5237
3534.877x3x94/0.159.8332
5050.3410x3x94/0.1512.0479
7070.4714x3x94/0.1515.0670
9594.6419x3x94/0.1516.5900
100100.2020x3x94/0.1518.0952
105105.7621x3x94/0.1518.51005
110111.3322x3x94/0.1519.01058
115116.9023x3x94/0.1519.51111
120117.4624x3x94/0.1520.01117
160159.4919x19x25/0.1522.01517
185185.0019x19x29/0.1523.01760
200196.1537x12x25/0.1526.01866
250251.0837x12x32/0.1529.02388
315310.5837x19x25/0.1531.02954
400397.5437x19x32/0.1534.03782
500496.9237x19x40/0.1538.04727

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Round braided wire copper tinned available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
