Flexible Copper Wire and Connectors

Braided Grounding Wire

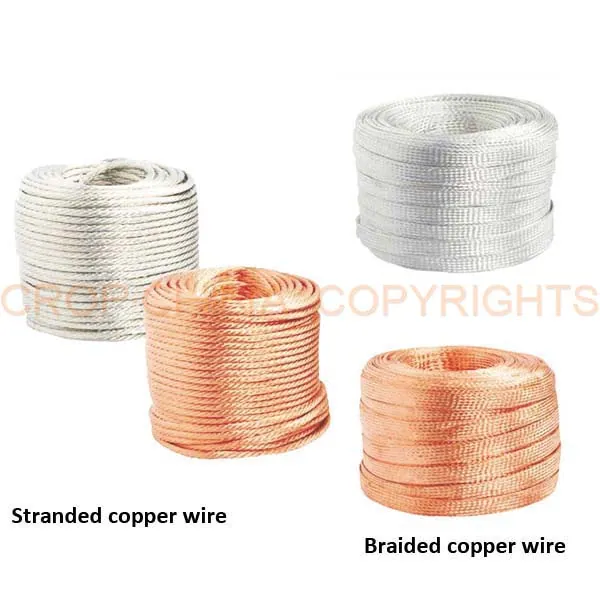

Braided grounding wire is well known as braided copper ground strap,it is made of weaving together strands of copper wire.

  • Braided grounding wire is well known as braided copper ground strap, it is made of weaving together strands of copper wire, the size is decide by the diameter of the copper wire.
  • Flat braided copper wire
  • Flat tinned copper braid
  • Tuber copper braid
  • Tuber tinned copper braid
  • Braided copper connectors
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryFlexible Copper Wire and Connectors
StandardsIEC and GB
CustomisationOEM and non standard accepted
Braided Grounding Wire
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Braided Grounding Wire Description

Braided Grounding Wire Copper or Copper Tinned

Braided grounding wire is well known as braided copper ground strap,it is made of weaving together strands of copper wire,the size is decide by the diameter of the copper wire.It has many types,such as copper flat braided,copper tinned flat braided,tuber copper braided,tuber tinned copper braided,braided copper connectors.Different type has different application.

The braided copper ground strap has a wide application,it can be used for electrical,automotive and railways industries.

Material

Copper or tinned copper

Customiaztion available for special dimension,shapes and structure.We can according to your drawing customized.

Advantage

  • It is flexibility,so it can be used more easy and a smooth and consistent performance for the connected electronics.
  • Sustenance against high temperatures
  • Easy to installation.

Related Product of Flexible Copper Braid

Catalogue Download Here

If you want to know the Braided Grounding Wire price,please feel free contact us.

Email: [email protected];[email protected]

Mob: 0086 177 5778 8662 / Whatsapp: 0086 17757788662 / Wechat: WXL17757788662

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Cross-section (mm²)structureouter dimensioncalculating weight （kg/km)
standard Cross-section (mm²)calculating Cross-section (mm²)layers*No.of strands*No.of wires/singlewire diameter (mm)width(mm)thickness(mm)
22.1224X5X1/0.1550.621
2.52.5424X6X1/0.1560.725.4
44.2424X10X1/0.1580.842
43.8136X6X1/0.15100.738
66.3636X10X1/0.15120.863
88.4848X10X1/0.15130.885
1010.1748X12X1/0.15151102
1010.640X15X1/0.15151.2106
1212.7248X15X1/0.15201.2127
1616.9648X20X1/0.15221.3170
2021.248X25X1/0.15251.4212
2525.4348X30X1/0.15301.5254
2525.4348X15X2/0.15202.5254
3533.9364X30X1/0.15401.5340
3533.9348X20X2/0.15252.6340
5050.8764X45X1/0.15501.8510
5050.8748X30X2/0.15303510
5050.8748X20X3/0.15254510
7070.6680X50X1/0.15702706
7067.8364X30X2/0.15403680
7576.3448X30X3/0.15324.5763
100101.7296X60X1/0.1510021017
100101.7264X45X2/0.155241017
100101.7248X30X4/0.153561017
120118.6896X70X1/0.151202.51190
120122.9248X30X4+48x25x1/0.153781230

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Braided Grounding Wire available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
