Cable Ties and Cable Glands

Nylon cable tie with mountable head

Tie out cable with mountable head (as known as a hose tie, zip tie) is used as fastener,for holding items like electrical cables or wires together.

  • Description of tie out cable with mountable head Tie out cable with mountable head (as known as a hose tie
Request A Quote Email Us Request A Sample
GroupABC Accessories
CategoryCable Ties and Cable Glands
StandardsIEC and GB
CustomisationOEM and non standard accepted

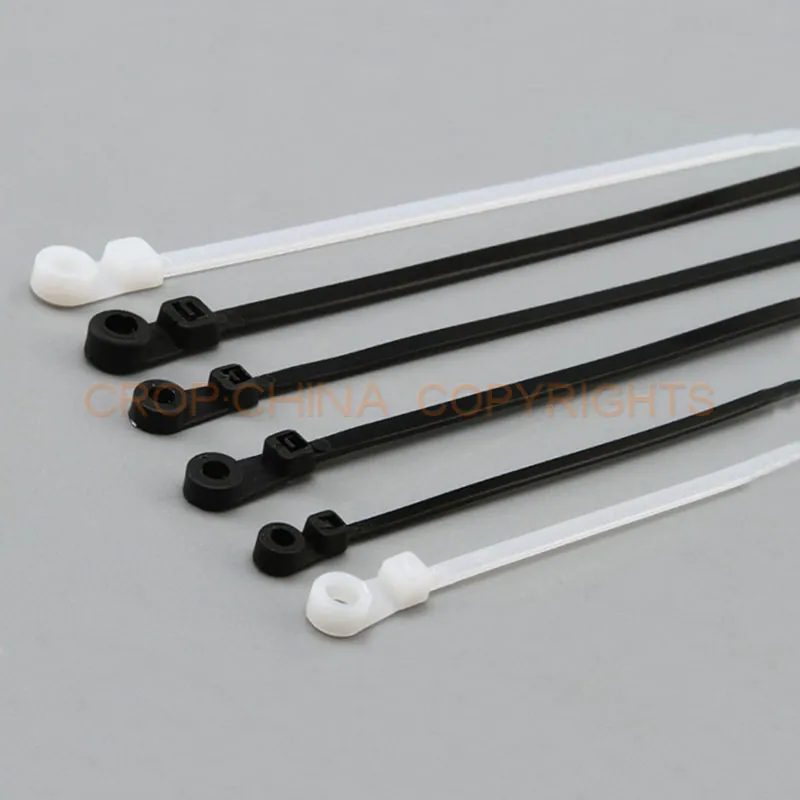

Nylon cable tie with mountable head
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Nylon Cable Tie with Mountable Head Description

Description of Tie Out Cable with Mountable Head

Tie out cable with mountable head (as known as a hose tie, zip tie) is used as fastener,for holding items like cables, wires, conducts, plants or other things in the industry of electrical & electronic,lighting,hardware,pharmaceutical,chemical,computer,machinery,agriculture together,primarily electrical cables or wires.Cause the low cost and ease of use,cable zip ties are use in a wide range of other applications.

The common cable tie, normally made of nylon, has a flexible tape section with teeth that engage with a pawl in the head to form a ratchet so that as the free end of the tape section is pulled the cable tie tightens and does not come undone. Some ties include a tab that can be depressed to release the ratchet so that the tie can be loosened or removed,and possibly reused.

Working temperature:Applied form -10℃ to 85℃.

Material:Nylon 66,94V-2 UL.

Cable tie HS code:3916901000

Feature:Flame-retardant(94V-2),heat-resistant,insulated well and not easy to age.

Usage:After bundling wires,fix them on plate with screw.

Colour:White,Black,nature standard color or other colour according to customer request.

We can do OEM according to the samples or drawings.

Related Product

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Item No.LengthW(mm)Bundle diameter E(mm)Min Tensile strength
InchL(mm)LBSKGS
CT-100MT4″1002.522188
CT-150MT6″1503.6324018
CT-200MT8″2004.8425022
CT-300MT12″3007.28012055

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Nylon cable tie with mountable head available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
