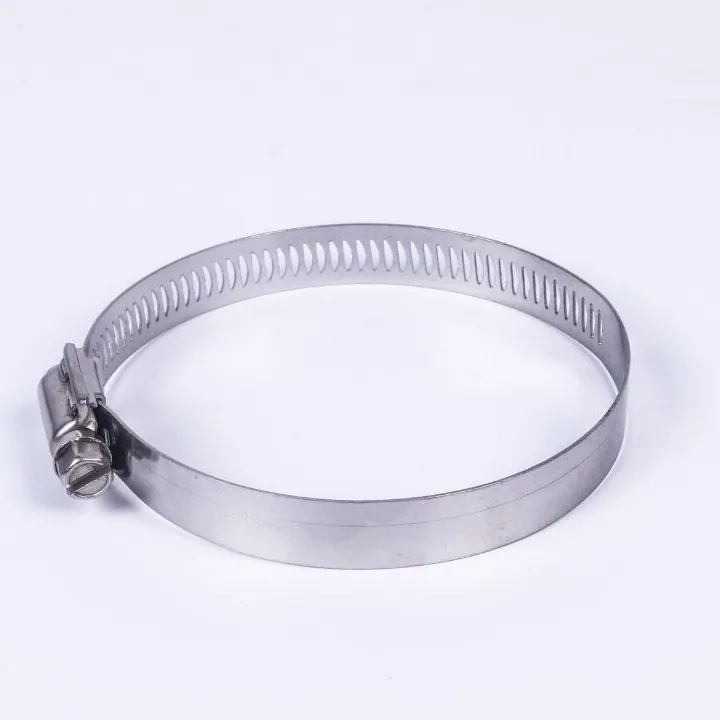

German type hose clamp

Hose clamp german type is a kind of hose clamp.Hose clamp are also named pipe clip,German type hose clamp is made of stainless steel.

Description of hose clamp Hose clamp german type is a kind of hose clamp. It is also named pipe clip,German

Request A Quote Email Us Request A Sample

GroupABC Accessories

CategoryCable Ties and Cable Glands

StandardsIEC and GB

CustomisationOEM and non standard accepted

Overview Specifications Gallery Ordering FAQ Related

Overview

German Type Hose Clamp Description

Description of Hose Clamp

Hose clamp german type is a kind of hose clamp. It is also named pipe clip,German type hose clamp is made of stainless steel.Pipe clip mainly used to fix hoses or pipes.stainless steel pipe clip has no-slip and shock absorbtion properied.

Related Product

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Range	Band width	Package PCS/bag	Material
Inch	MM
0.31-0.47	8-12	9mm	100	W1: Band,housing & screw,all zinc-plated W2: Band,housing with all stainless steel 300 or 430,zinc-plated screw W4: Band,housing & screw with all stainless steel 300 W5: Band,housing & screw with all stainless steel 316
0.39-0.63	10-16	100
0.47-0.87	12-22	100
0.75-1.14	19-29	100
0.91-1.38	23-35	50
1.18-1.77	30-45	50
1.26-1.97	32-50	50
1.57-2.36	40-60	50
1.97-2.76	50-70	20
2.36-3.15	60-80	20
2.76-3.54	70-90	20
3.15-3.94	80-100	10
3.54-4.33	90-110	10
3.93-4.72	100-120	10
4.33-5.12	110-130	10
4.72-5.51	120-140	10
5.12-5.91	130-150	10
5.52-6.30	140-160	10
0.63-1.06	16-27	12mm	100
0.79-1.26	20-32	50
0.98-1.57	25-40	50
1.26-1.97	32-50	50
1.57-2.36	40-60	50
1.97-2.76	50-70	10
2.36-3.15	60-80	10
2.76-3.54	70-90	10
3.15-3.94	80-100	10
3.54-4.33	90-110	10
3.94-4.72	100-120	10
4.33-5.12	110-130	10
4.72-5.52	120-140	10
5.12-5.91	130-150	10
5.52-6.30	140-160	10
5.91-6.69	150-170	10
6.30-7.09	160-180	10
6.69-7.48	170-190	10
7.09-7.87	180-200	10

Product Images

Ordering and Support

From Enquiry To Delivered Order

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?

Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.

Is German type hose clamp available as a sample before a production order?

Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.

Which standards do CROP products follow?

All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.

Can items be produced to our own drawing?

Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.

How do I obtain the PDF catalogue?

The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
