Line Tap Connector

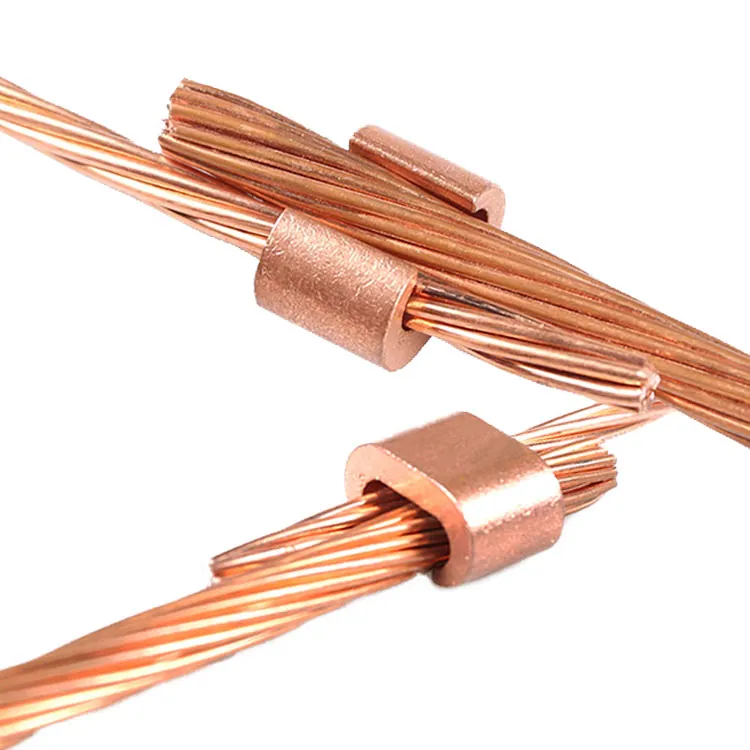

Ground C Crimp

Ground C crimp also named copper c connector.The main applicationis used to connect the parallel copper cable on grounding system.

  • Ground C crimp also named copper c connector.The side of this product looks like a C, so it is called a C connector.
  • Conductor range: 7.5 sqmm to 895 sqmm
  • Sample: Can be supply for free
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryLine Tap Connector
StandardsIEC and GB
CustomisationOEM and non standard accepted
Ground C Crimp
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Ground C Crimp Description

Ground C crimp also named copper c connector.The side of this product looks like a C, so it is called a C connector.The copper compression c connector has a widely use.The main application is used to connect the parallel copper cable on grounding system. It can also be used to connect the copper cable on the electrical system.The conductor range is suitable from 7.5 sqmm to 895 sqmm.

Ground C Crimp Drawing

Parameters Table

Copper Compression C Connector Material

The Copper C connector is made of pure copper.It has two different surface treatment.One is nature,the other one is tinned.The nature treatment is just can be used for copper conductor,the tinned treatment can be used for copper conductor,also can be used for aluminum conductor,it can well realize the transition of copper-aluminum connection.

Copper Extruded ‘C’

The copper compression c connector is cut to a certain length from copper extruded C.

Related Product

Catalogue Download

If you want to know the Ground C crimp price,please feel free contact us.

Email: [email protected];[email protected]

Mob: 0086 177 5778 8662 / Whatsapp: 0086 17757788662 / Wechat: WXL17757788662

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

ModelSuitable section of conductor(mm²)AHLbC
CCT-107.5-149.56.2121.64
CCT-1614.5-1611.87.81325
CCT-2016.5-2012.89.7132.95.4
CCT-2621-2614.710.9163.26.5
CCT-4427-441914.42048.5
CCT-6045-602115.12249.7
CCT-7661-7624.417.622510.8
CCT-9877-9827.818.825512.8
CCT-12299-12229.821.2265.513.5
CCT-154123-1543424.428617
CCT-190155-1903725.435617.4
CCT-240191-2404028.540719
CCT-288141-28844.531.145722.3
CCT-365289-36547.53450724.8
CCT-450366-4505741601028
CCT-560451-5606245651131
CCT-700561-7006849.5701234
CCT-895630-895724566.51231

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Ground C Crimp available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
