Line Tap Connector

C Shape Copper Connector CCT series

C shape copper connector also named C tap compression connector,used for copper tap and parallel connections of stranded copper cables in earthing system.

  • C Shape Copper Connector CCT series C shape copper connector also named C tap compression connector,it is used for copper
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryLine Tap Connector
StandardsIEC and GB
CustomisationOEM and non standard accepted
C Shape Copper Connector CCT series
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

C Shape Copper Connector CCT Series Description

C shape copper connector also named C tap compression connector,it is used for copper tap and parallel connections of stranded copper cables in earthing system.CROP C shape copper connector has a full fange,the suitable section of conductor form 7.5mm2 to 895mm2.The CCT-895 is our new type customized by one of our customer.

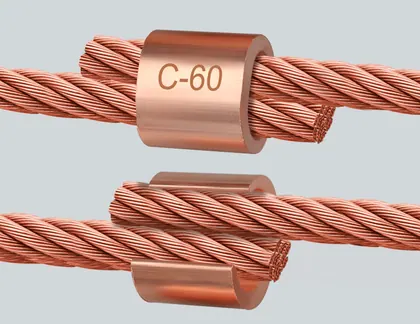

The C tap compression connector are made of extruded ‘C’ from copper with apurity greater than 99.5%.There are two ways of product surface treatment.one is puer copper surface,the other is copper tinned surface.Please check below product picture.

C tap compression connector available to achieve earthing connections on copper type cable conductors with cross-section areas 10sqmm to 895sqmm – installed using appropriate ratchet, hydraulic or battery type crimping tools and associated die sets.

Extruded ‘C’ from Copper

Copper C-Clamp

Related Product

Catalogue download

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

ModelSuitable section of conductor(mm²)AHLbC
CCT-107.5-149.56.2121.64
CCT-1614.5-1611.87.81325
CCT-2016.5-2012.89.7132.95.4
CCT-2621-2614.710.9163.26.5
CCT-4427-441914.42048.5
CCT-6045-602115.12249.7
CCT-7661-7624.417.622510.8
CCT-9877-9827.818.825512.8
CCT-12299-12229.821.2265.513.5
CCT-154123-1543424.428617
CCT-190155-1903725.435617.4
CCT-240191-2404028.540719
CCT-288141-28844.531.145722.3
CCT-365289-36547.53450724.8
CCT-450366-4505741601028
CCT-560451-5606245651131
CCT-700561-7006849.5701234
CCT-895630-895724566.51231

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is C Shape Copper Connector CCT series available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
