Flexible Copper Wire and Connectors

Flexible PVC braided copper tapes

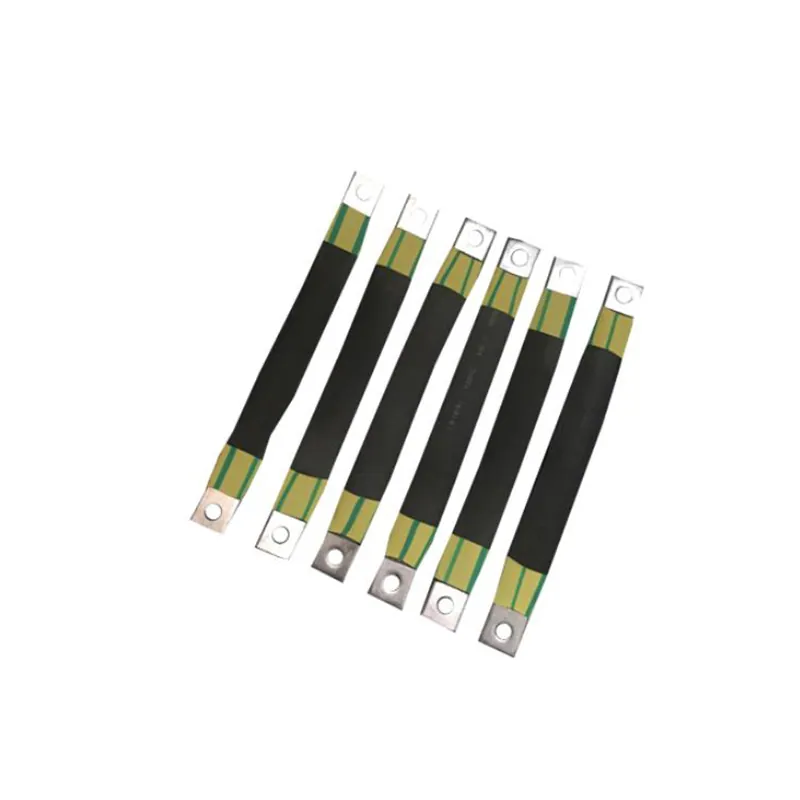

Flexible PVC braided copper tapes manufactured by flexible PVC-extruded.The crimping process is realized without using additives like tin.

Description of flexible PVC braided copper tapes Flexible PVC braided copper tapes manufactured by flexible PVC-extruded.The crimping process is realized

Request A Quote Email Us Request A Sample

GroupPower Connectors

CategoryFlexible Copper Wire and Connectors

StandardsIEC and GB

CustomisationOEM and non standard accepted

Overview Specifications Gallery Ordering FAQ Related

Overview

Flexible PVC Braided Copper Tapes Description

Description of Flexible PVC Braided Copper Tapes

Flexible PVC braided copper tapes manufactured by flexible PVC-extruded.The crimping process is realized without using additives like tin or soldering and welding additives. We use exclusively materials of same analysis and same conductivity. Caused by the technical characteristics of the insulating material, the flexibility of the braids the connectors offer multifarious applications inside switch gearsor control panel devices as well as earthing connections.

Material: It is made out of seamless Cu-ETP-tubes.

Application: The braided copper tape is suitable for the flexible connected wires of electrical equipment, electrical switch, electrical furnace, battery, etc. Also can be as shielding sleeve for wire harness etc.

Customiaztion available for special dimension,shapes and structure.We can according to your drawing customized.

Related Product of Braided Wire

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Cross-section (mm²)	Current-load	Dimension (mm)
B1	B2	d	L
10	75-105A	12	12	5.5	According to customer requirement
16	100-150A	15	15	6.5
25	145-210A	20	20	9
25	145-210A	25	25	9
35	170-250A	20	20	9
35	170-250A	25	25	9
50	205-300A	25	25	11
50	215-310A	30	30	9
70	245-355A	25	25	11
70	245-355A	30	30	11
70	270-390A	35	35	14
70	270-390A	40	40	11
100	325-470A	35	35	14
100	325-470A	40	40	14
120	375-540A	40	40	14
140	405-580A	40	40	14
210	505-730A	40	40	14
210	505-730A	50	50	14

Product Images

Ordering and Support

From Enquiry To Delivered Order

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?

Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.

Is Flexible PVC braided copper tapes available as a sample before a production order?

Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.

Which standards do CROP products follow?

All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.

Can items be produced to our own drawing?

Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.

How do I obtain the PDF catalogue?

The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.

Next Step

Get A Price For Flexible PVC braided copper tapes

Send the code, the size and the quantity. Drawings for non standard versions are welcome.
