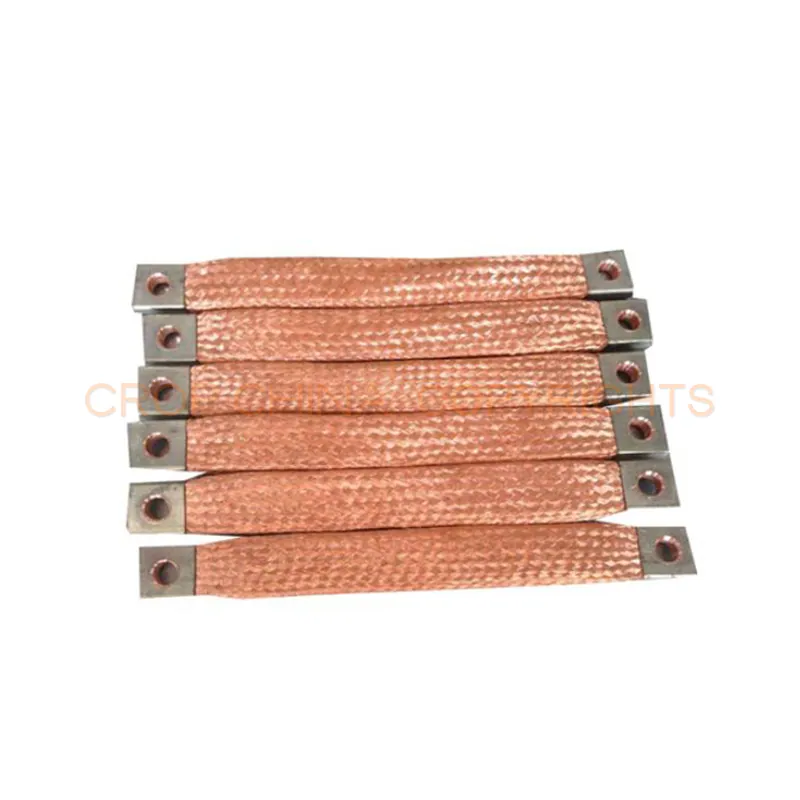

Flat copper braided busbar shunt connector

Flat copper braided busbar shunt connector manufactured out of flexible braided copper taps made out of annealed tinned Cu-ETP wires.

  • Flat copper braided busbar shunt connector manufactured out of flexible braided copper taps made out of annealed tinned Cu-ETP wires.
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryFlexible Copper Wire and Connectors
StandardsIEC and GB
CustomisationOEM and non standard accepted
Flat copper braided busbar shunt connector
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Flat Copper Braided Busbar Shunt Connector Description

Description of Flat Copper Braided Busbar Shunt Connector

Flat copper braided busbar shunt connector manufactured out of flexible braided copper taps made out of annealed tinned Cu-ETP wires,with solderless pressed lugs,Ferrules,Welded Ends,the surface can be tinned or bare.Everywhere applicable where connections with smaller cross-sections made out of braided copper tapes are needed. Single wire diameter: 0.05mm,0.07mm,0.10mm,0.12mm,0.127mm, 0.15mm, 0.2mm,0.25mm,0.254mm,0.3mm

Application: The braided copper tape is suitable for the flexible connected wires of electrical equipment, electrical switch, electrical furnace, battery, etc. Also can be as shielding sleeve for wire harness etc. Customized available for special dimension,shapes and structure.We can according to your drawing customized.

Related Product of Braided Wire

If you want to know the Flat copper braided connector price,please feel free contact us.

Email: [email protected];[email protected]

Mob: 0086 177 5778 8662 / Whatsapp: 0086 17757788662 / Wechat: WXL17757788662

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Cross-section (mm²)Dimension (mm)Ferrule TypeHole Type
Hole dimensionL
4According to customer requirementAccording to customer requirementA/B/C for your choosea/b/c/d/e/f/g/h/k for your choose
6
8
10
14
16
25
35
50
70

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Flat copper braided busbar shunt connector available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
