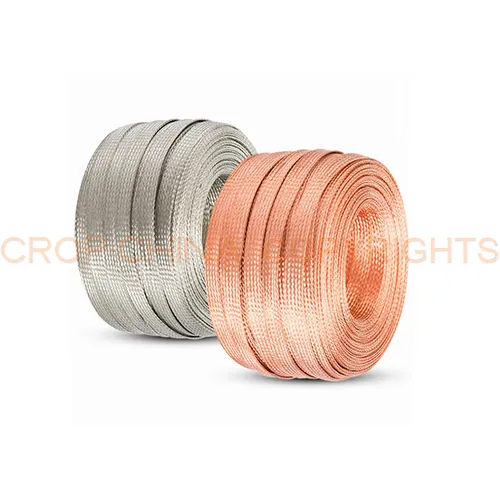

Earthing Braid Copper

Earthing Braid Copper is a type of copper flat braid that is used for a variety of applications. It is made up of a flat strip of copper.

  • Earthing Braid Copper is a type of copper braid that is used for a variety of applications.
  • For other Copper Braided Flexible we can do the customized product according to your drawings or samples.
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryFlexible Copper Wire and Connectors
StandardsIEC and GB
CustomisationOEM and non standard accepted
Earthing Braid Copper
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Earthing Braid Copper Description

Earthing Braid Copper is a type of copper braid that is used for a variety of applications. It is made up of a flat strip of copper that is braided into a wire. This makes it very strong and durable. Copper braid is often used in electrical applications, as it is able to withstand high temperatures and is resistant to corrosion.Copper flat braid is often used in electrical applications because it is an excellent conductor of electricity. This type of copper braid is also very flexible, making it ideal for use in applications where space is limited.

Material of Copper Flat Braid

The earthing braid copper is made from weaving together strands of copper wire.The Finished is copper or copper tinned.

Customiaztion available for special dimension,shapes and structure.We can according to your drawing customized.Discount are available for longer length and other size and finished can be made to order.

Earthing Braid Application

There are many benefits to using copper flat braid in your applications. Copper flat braid is an excellent conductor of electricity and is also resistant to heat and corrosion. This makes it ideal for use in a variety of industries, including electrical, automotive, and aerospace.

Copper flat braid is also flexible and can be easily shaped to fit your needs. It is available in a variety of sizes to meet the requirements of your project. Whether you need a small amount for a repair job or a large amount for a new construction project, copper flat braid is a great option.

If you are looking for a reliable and cost-effective solution for your electrical or automotive needs, consider using copper flat braid. It is a versatile material that can be used in a variety of applications.

Related Product of Copper Braid

Catalogue Download Here

If you want to know the product price and want to get the free sample,please feel free contact us.

Email: [email protected];[email protected]

Mob: 0086 177 5778 8662 / Whatsapp: 0086 17757788662 / Wechat: WXL17757788662

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Cross-section (mm²)structureouter dimensioncalculating weight （kg/km)
standard Cross-section (mm²)calculating Cross-section (mm²)layers*No.of strands*No.of wires/singlewire diameter (mm)width(mm)thickness(mm)
22.1224X5X1/0.1550.621
2.52.5424X6X1/0.1560.725.4
44.2424X10X1/0.1580.842
43.8136X6X1/0.15100.738
66.3636X10X1/0.15120.863
88.4848X10X1/0.15130.885
1010.1748X12X1/0.15151102
1010.640X15X1/0.15151.2106
1212.7248X15X1/0.15201.2127
1616.9648X20X1/0.15221.3170
2021.248X25X1/0.15251.4212
2525.4348X30X1/0.15301.5254
2525.4348X15X2/0.15202.5254
3533.9364X30X1/0.15401.5340
3533.9348X20X2/0.15252.6340
5050.8764X45X1/0.15501.8510
5050.8748X30X2/0.15303510
5050.8748X20X3/0.15254510
7070.6680X50X1/0.15702706
7067.8364X30X2/0.15403680
7576.3448X30X3/0.15324.5763
100101.7296X60X1/0.1510021017
100101.7264X45X2/0.155241017
100101.7248X30X4/0.153561017
120118.6896X70X1/0.151202.51190
120122.9248X30X4+48x25x1/0.153781230

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Earthing Braid Copper available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
