Copper Flexible Braided Connector

Copper flexible braided connector is made of weaving together strands of copper wire,and the the two ends are furnish with the cable terminal.

  • Copper flexible braided connector is made of weaving together strands of copper wire,and the the two ends are furnish with the cable terminal.
  • For other Copper flexible braided connector we can do the customized product according to your drawings or samples.
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryFlexible Copper Wire and Connectors
StandardsIEC and GB
CustomisationOEM and non standard accepted
Copper Flexible Braided Connector
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Copper Flexible Braided Connector Description

Copper flexible braided connector is made of weaving together strands of copper wire,and the the two ends are furnish with the cable terminal.The cable terminal usually has the holes,so that it can be install with the screw to the electric equipment.It is has a wide usage range,such as switchgear industries, transformers, welding and galvanic engineering, Manufacturing of modular, membrane and diaphragm cells, cathode protection, etc.

Copper Braided Connector with OT Terminal Lug

Flat Copper Braided Busbar Shunt Connector

Earth Grounding Straps Copper Braided with Solderless Pressed Contact Areas

We can do the customized product according to your drawings or samples.

Braids made of manycopper wires are also sometimes used for flexible electrical connections between large components. The numerous smaller wires comprising the braid are much more resistant to breaking under repeated motion and vibration than is a cable of larger wires. In electrical and electronic cables, braid is a tubular sheath made of braided strands of metal placed around a central cable for shielding against electromagnetic interference.

Related Product

If you want to know more details about this product,please feel free contact us.

Email: [email protected];[email protected]

Mob: 0086 177 5778 8662 / Whatsapp: 0086 17757788662 / Wechat: WXL17757788662

Catalogue download

Specifications

Codes Ranges and Dimensions

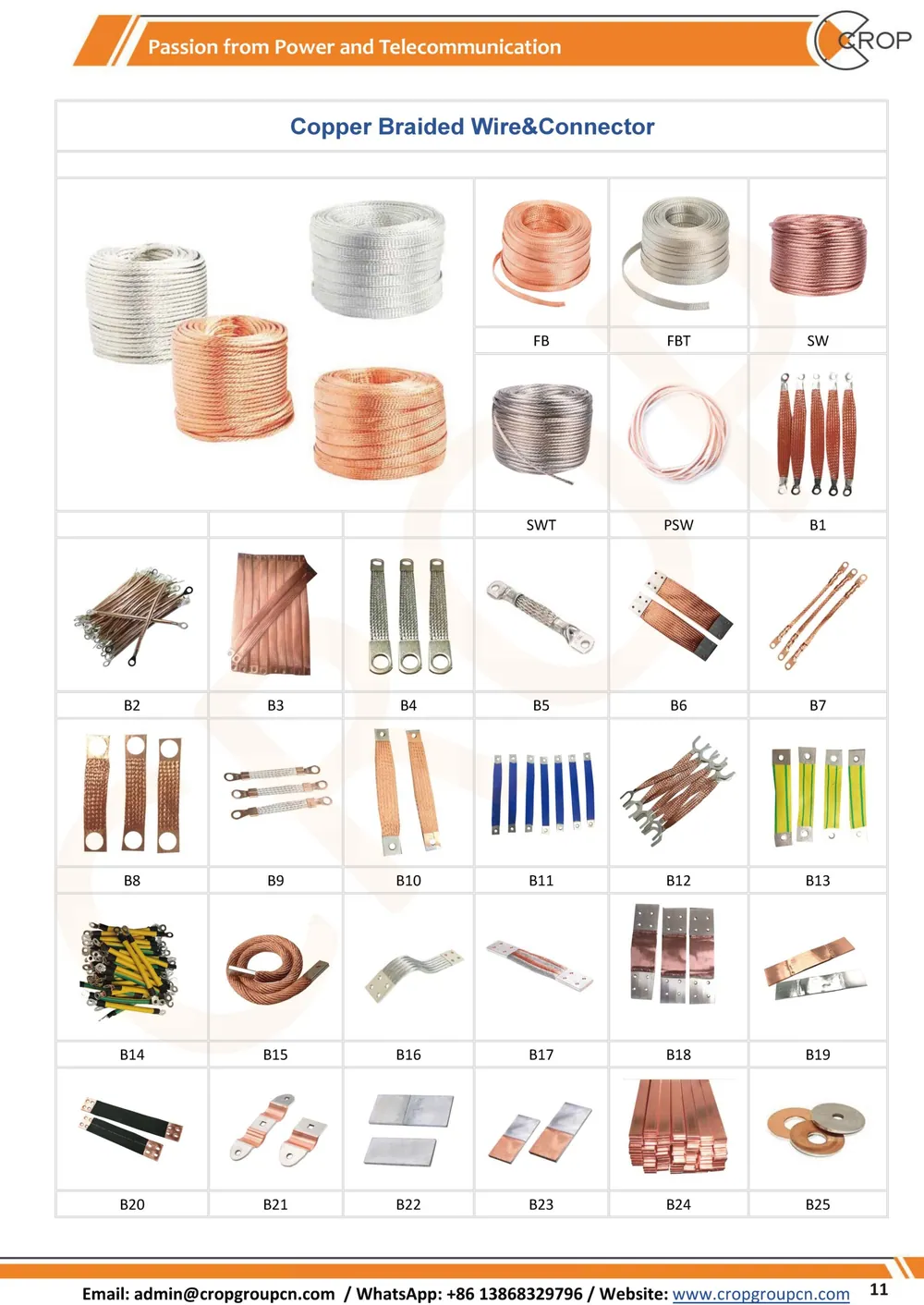

Figures below are reproduced from the CROP catalogue for this item.

Cross-section (mm²)Dimension (mm)Ferrule TypeHole Type
Hole dimensionL
4According to customer requirementAccording to customer requirementA/B/C for your choosea/b/c/d/e/f/g/h/k for your choose
6
8
10
14
16
25
35
50
70
Cross-section (mm²)Dimension (mm)
BdL
48According to customer requirementAccording to customer requirement
610
812
1014
1418
1620
2522
3525
5033
7035

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Copper Flexible Braided Connector available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.

Next Step

Get A Price For Copper Flexible Braided Connector

Send the code, the size and the quantity. Drawings for non standard versions are welcome.
