Line Tap Connector

Copper C type connector

Copper C type connector

  • Copper C type connector, comply with ANSI C119.4
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryLine Tap Connector
StandardsIEC and GB
CustomisationOEM and non standard accepted
Copper C type connector
OverviewOrderingFAQRelated

Overview

Copper C Type Connector Description

belong Copper Grounding Earthing Accessories

Copper C Type Connector Specifications:-

  • Standard type
  • Material: E – Copper
  • Finish: Copper / Tin Plated

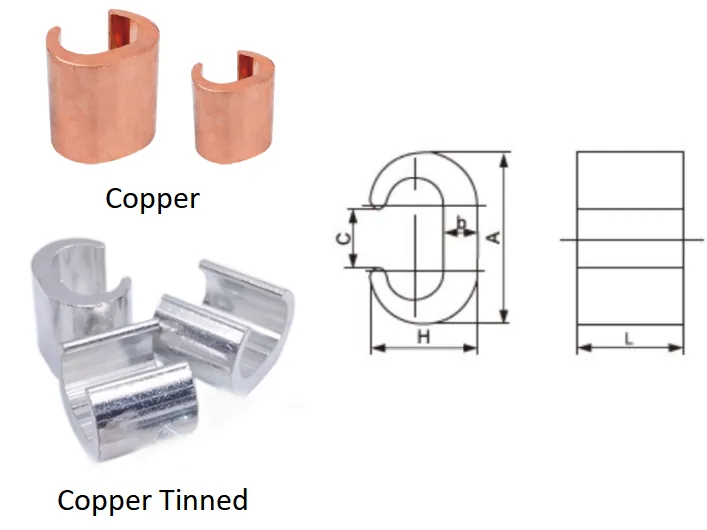

  • Copper C type connector Selection table
  • Model Suitable section of conductor(mm² ） A H L b C CCT-10 7.5-14 9.5 6.2 12 1.6 4 CCT-16 14.5-16 11.8 7.8 13 2 5 CCT-20 16.5-20 12.8 9.7 13 2.9 5.4 CCT-26 21-26 14.7 10.9 16 3.2 6.5 CCT-44 27-44 19 14.4 20 4 8.5 CCT-60 45-60 21 15.1 22 4 9.7 CCT-76 61-76 24.4 17.6 22 5 10.8 CCT-98 77-98 27.8 18.8 25 5 12.8 CCT-122 99-122 29.8 21.2 26 5.5 13.5 CCT-154 123-154 34 24.4 28 6 17 CCT-190 155-190 37 25.4 35 6 17.4 CCT-240 191-240 40 28.5 40 7 19 CCT-288 141-288 44.5 31.1 45 7 22.3 CCT-365 289-365 47.5 34 50 7 24.8 CCT-450 366-450 57 41 60 10 28 CCT-560 451-560 62 45 65 11 31 CCT-700 561-700 68 49.5 70 12 34 CCT-895 630-895 72 45 66.5 12 31
  • How to choose the Copper C type connector size?
  • For example, you want to connecting 2 cable size in 70mm2 to 150mm2, 70+150=230mm2, our code CCT-240, Suitable section of conductor is from 191-240mm2, your 2 cable sum in 230mm2, its inside of the range 191-240mm2, so, CCT-240 is the correct size which you need.
  • We are also can produce according to client drawing.
  • Welcome to inquiry us, please send us by email, we will reply you within 24hrs.

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

Is Copper C type connector available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
