Flexible Copper Wire and Connectors

Copper laminated flexible connectors

Laminated flexible copper connectors consists of C 11000 copper foils.Most of them are customized according to the drawings or samples.

  • Description of laminated flexible copper connectors Laminated flexible copper connectors consists of C 11000 copper foils,the both ends of which
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryFlexible Copper Wire and Connectors
StandardsIEC and GB
CustomisationOEM and non standard accepted

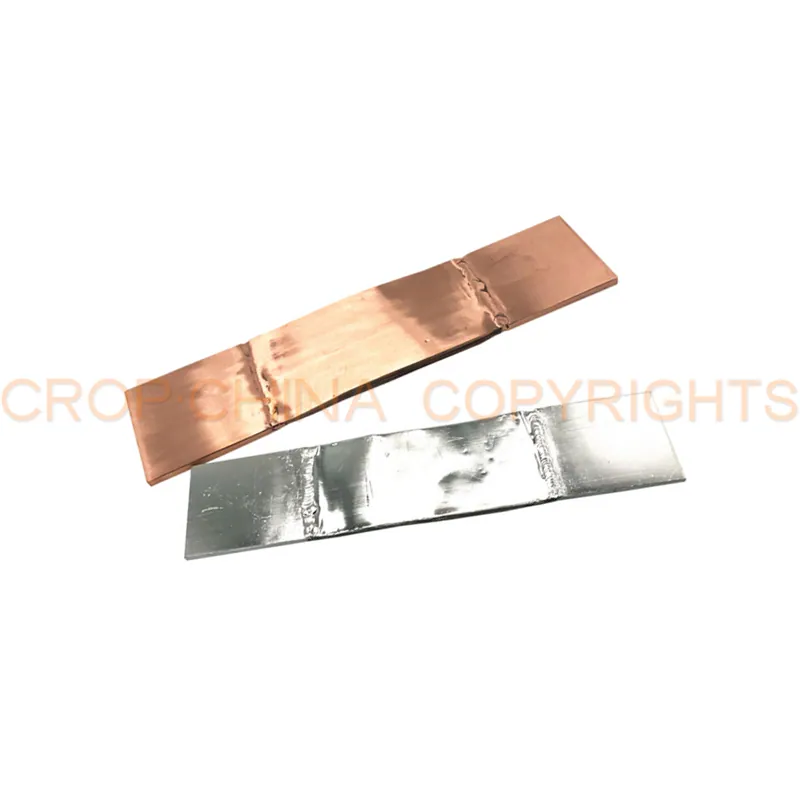

Copper laminated flexible connectors
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Copper Laminated Flexible Connectors Description

Description of Laminated Flexible Copper Connectors

Laminated flexible copper connectors consists of C 11000 copper foils,the both ends of which are press-welded together.It can be tinned coating or silver plate.The length of the contact surface can be designed according to the installation requirements.

Standard design has no drilling requirements, you can drill holes on the contact surface according to the drawings.

Insulation material: standard design without insulation material, it can use PVC insulation sleeve heat shrink fixed.

Application: Thecopper laminated flexible connectors is suitable for the flexible connected wires of electrical equipment, electrical switch, electrical furnace, battery, etc.Also can be as shielding sleeve for wire harness etc.

Most of the laminated copper foil connectors are customized according to the drawing.

Related Product of Copper Laminated Flexible Connectors

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

TypeLength mmWidth mmThickness mm
CST4x40290404
CST5x50290505
CST6x60340606
CST6x80380806
CST8x80380808
CST10x803808010
CST10x10045010010
CST10x12050012010
CST10x12550012510
CST12x12550012512

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Copper laminated flexible connectors available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
