Conector Tipo C

Conector Tipo C también llamado Conector Crimpado C de Cobre. Está fabricado con cobre extruido 'C' de alta pureza.

  • Conector Tipo C también llamado Conector Crimpado C de Cobre. Está fabricado con cobre extruido ‘C’ de alta pureza.
  • Gama de conductores adecuados: Desde 10 mm2 hasta 895 mm2.
  • Material: Cobre o Cobre estañado.
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryLine Tap Connector
StandardsIEC and GB
CustomisationOEM and non standard accepted
Conector Tipo C
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Conector Tipo C Description

Conector Tipo C también llamado Conector Crimpado C de Cobre. Está fabricado con cobre extruido ‘C’ de alta pureza. El conector Crimpado C de cobre está diseñado para proporcionar una conexión estable de baja resistencia entre dos conductores sólidos circulares o trenzados. sistemas de puesta a tierra y derivaciones de líneas aéreas de baja tensión.

Dimensión Del Conector De Cobre Tipo C

Conector De Cobre Tipo C Tabla De Parámetros

La sección adecuada de los conductores de cable de cobre, incluidas las derivaciones y derivaciones, conductores de cobre de 2,5 mm2 a 240 mm2. Hay disponibles conectores de cobre C Tap con acabado de superficie brillante y estañado.

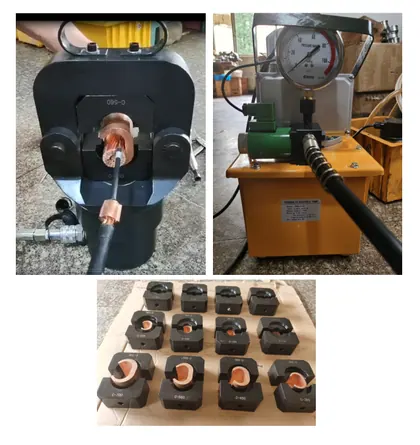

Herramientas De Crimpado De Tipo Batería Y Juegos De Troqueles Asociados

CROP también puede suministrar las herramientas de crimpado tipo batería y los juegos de troqueles asociados. Por lo tanto, le resultará conveniente comprar, puede comprar todos los clips C y herramientas en un solo lugar. Seremos su proveedor más profesional.

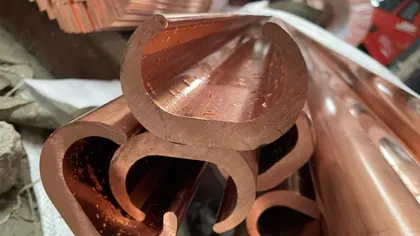

Cobre Extruido ‘C’

Producto Relacionado De Conector De Crimpado C

Descarga de catálogo

Si desea conocer, no dude en contactarnos.

Correo electrónico: [email protected];[email protected]

Móvil: 0086 177 5778 8662 / Whatsapp: 0086 17757788662 / Wechat: WXL17757788662

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

ModeloSección adecuada del conductor (mm²)AHLbC
CCT-107.5-149.56.2121.64
CCT-1614.5-1611.87.81325
CCT-2016.5-2012.89.7132.95.4
CCT-2621-2614.710.9163.26.5
CCT-4427-441914.42048.5
CCT-6045-602115.12249.7
CCT-7661-7624.417.622510.8
CCT-9877-9827.818.825512.8
CCT-12299-12229.821.2265.513.5
CCT-154123-1543424.428617
CCT-190155-1903725.435617.4
CCT-240191-2404028.540719
CCT-288141-28844.531.145722.3
CCT-365289-36547.53450724.8
CCT-450366-4505741601028
CCT-560451-5606245651131
CCT-700561-7006849.5701234
CCT-895630-895724566.51231

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Conector Tipo C available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
