Line Tap Connector

CONECTOR CUNHA DE ALUMÍNIO COM ESTRIBO NORMAL

Powertap stirrups Material Aluminum Alloy, Grease Standard: Class AA,ANSI C119.4 2003,GB/T 2317.3-2000, DL/T 765.2-2004 Hardness: HRF88-90

  • Powertap stirrups Material Aluminum Alloy, Grease Standard: Class AA,ANSI C119.4 2003,GB/T 2317.3-2000, DL/T 765.2-2004 Hardness: HRF88-90
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryLine Tap Connector
StandardsIEC and GB
CustomisationOEM and non standard accepted
CONECTOR CUNHA DE ALUMÍNIO COM ESTRIBO NORMAL
OverviewGalleryOrderingFAQRelated

Overview

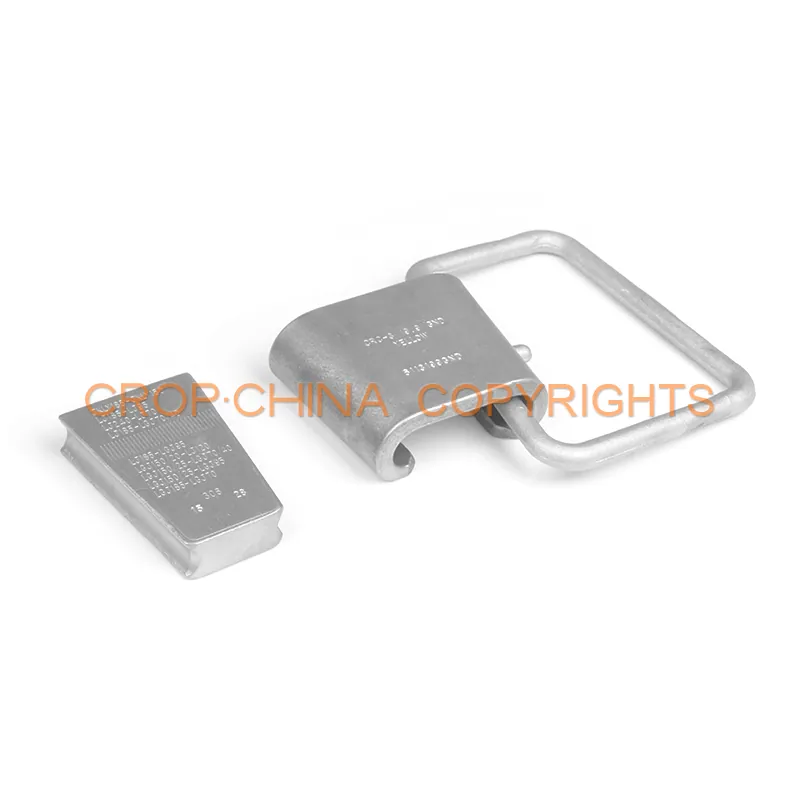

CONECTOR CUNHA DE ALUMÍNIO COM ESTRIBO NORMAL Description

UTILIZAÇÃO

Conexão de estribo ao condutor tronco das redes de distribuição, iluminação pública e rural, através de conector cunha de alumínio. O estribo é utilizado para conexão de grampo de linha viva e derivações de condutores.

COMPOSIÇÃO

Corpo fabricado em liga de alumínio extrudado de alta resistência mecânica e condutividade elétrica. Cunha fabricado em alumínio fundido de alta resistência mecânica e condutividade elétrica. Estribo fabricado em cobre eletrolítico. Fornecido com composto antióxido.

CONDUTORES

Fios e cabos de cobre ou alumínio, série métrica e AWG/MCM.

ACABAMENTO

Estribo: estanhado eletrolítico. Corpo e cunha: decapado fosco.

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

Is CONECTOR CUNHA DE ALUMÍNIO COM ESTRIBO NORMAL available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
