Pulp and Paper Industry Nozzles
High pressure cleaning nozzle

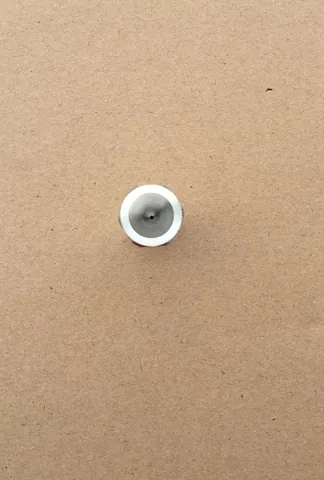

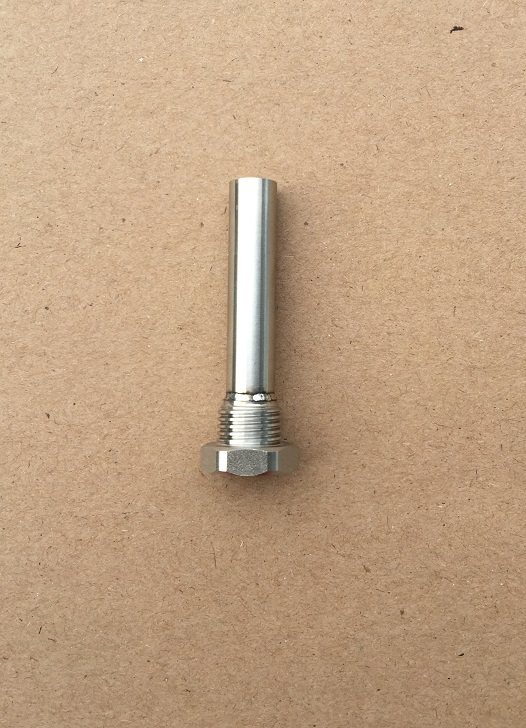

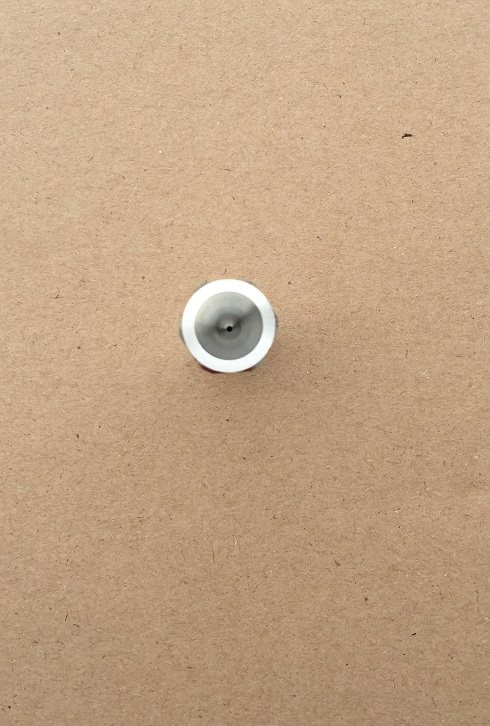

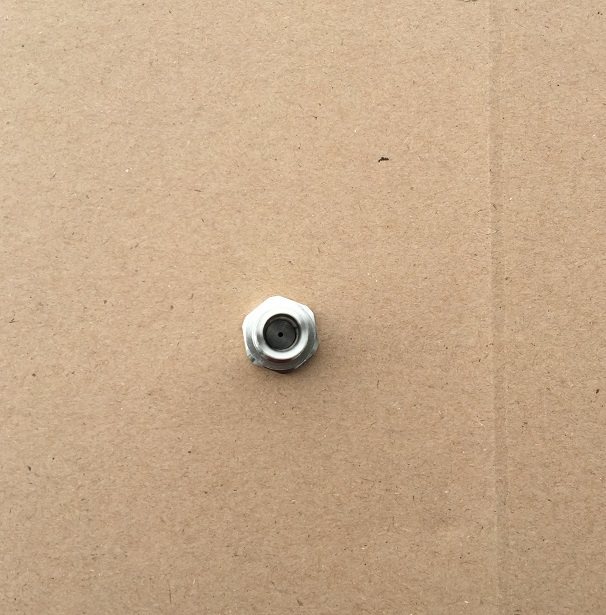

Model: CN 19124 EXT 316SS Material: 316SS Orifice size: 0.1-3mm Applications: Needle Style with Extension Nozzle is designed to help prevent plugging in shower bars that are spraying down. The extension tube draws clean water from the top of the pipe. Available with a 316SS or Ceramic Orifice and the extension lengths shown. Overall nozzle body: From the top: From the bottom:
| Series / part | High pressure cleaning nozzle |
|---|---|
| Category | Pulp and Paper Industry Nozzles |
| Product family | Special Purpose Nozzles |
| Materials | 316 stainless steel, Ceramic insert |
| Manufacture | CNSS, Dongguan — OEM and non-standard variants available |
Typical of this category
- Needle and shower nozzles
- Ruby and ceramic trim cutters
- Self-cleaning shower heads
- High-pressure cleaning bars
Capacity, spray angle and dimensional tables vary by orifice size. See the reference drawings below, or ask us for the datasheet covering the size you need.
Reference drawings and capacity tables
Original manufacturer drawings for the High pressure cleaning nozzle series.
