Full Cone Nozzles
H&HH
H&HH is part of the full cone nozzles range from CNSS. Even, solid-filled circular or square impact over the whole spray footprint. The general-purpose workhorse for cooling, washing, scrubbing, dust control and fire protection. Removable vane and cap designs make cleaning a two-minute job.
| Series / part | H&HH |
|---|---|
| Category | Full Cone Nozzles |
| Product family | Common Purpose Nozzles |
| Manufacture | CNSS, Dongguan — OEM and non-standard variants available |
Typical of this category
- Round and square patterns
- 1/8″ to 1/2″ NPT or BSPT
- Brass, 303/304/316 stainless
- Removable vane for cleaning
Capacity, spray angle and dimensional tables vary by orifice size. See the reference drawings below, or ask us for the datasheet covering the size you need.

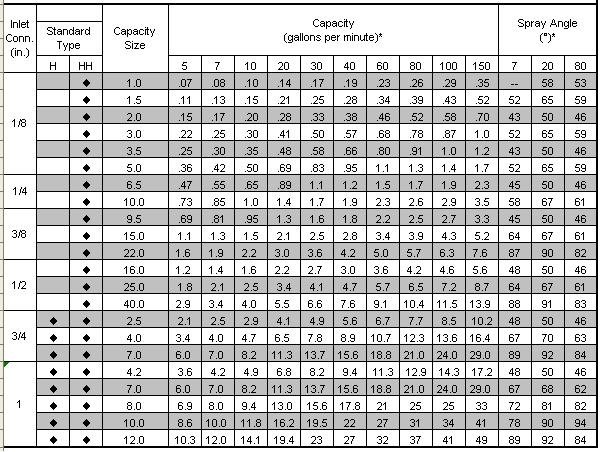

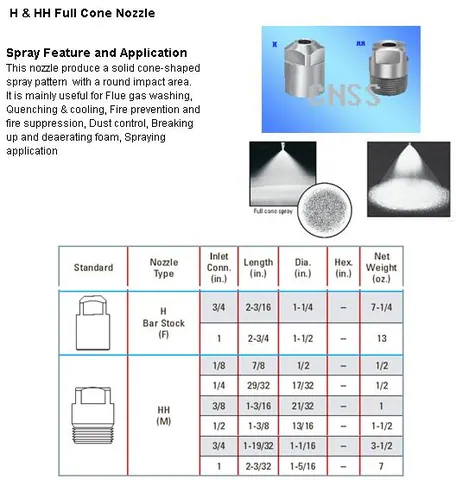

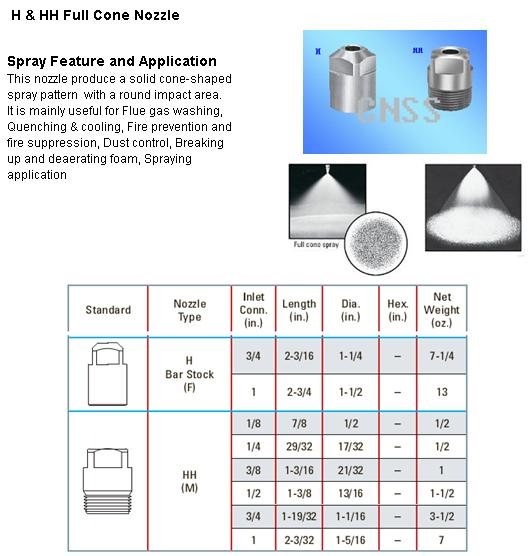

Reference drawings and capacity tables
Original manufacturer drawings for the H&HH series.
Others in full cone nozzles
Tell us the duty, not just the part number
Give us flow rate, pressure, spray angle and the liquid, and we will size the nozzle. Drawings and non-standard parts welcome. Samples typically ready within 10 days.
