Full Cone Nozzles
G&GG
Removable cap and vane type, available in1/8″to 1/2″NPT or BSPT(Female/Male).
| Series / part | G&GG |
|---|---|
| Category | Full Cone Nozzles |
| Product family | Common Purpose Nozzles |
| Connection | NPT, BSPT / BSP |
| Manufacture | CNSS, Dongguan — OEM and non-standard variants available |
Typical of this category
- Round and square patterns
- 1/8″ to 1/2″ NPT or BSPT
- Brass, 303/304/316 stainless
- Removable vane for cleaning
Capacity, spray angle and dimensional tables vary by orifice size. See the reference drawings below, or ask us for the datasheet covering the size you need.

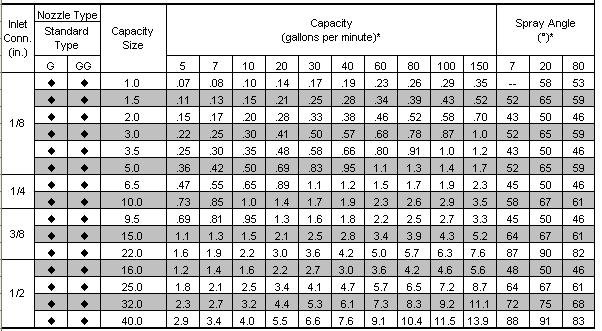

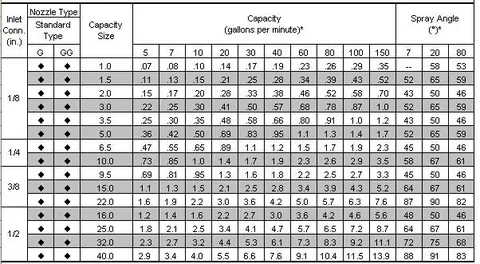

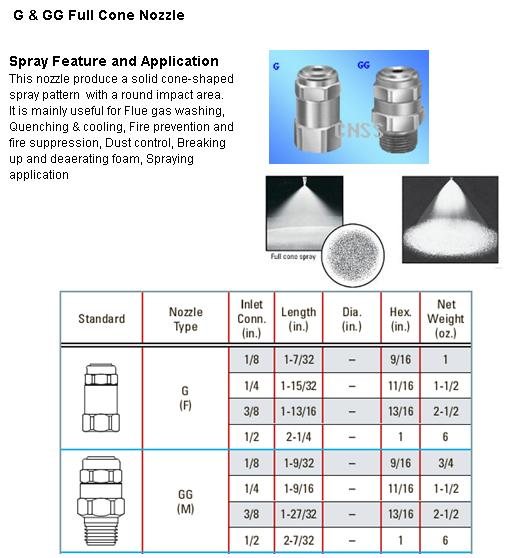

Reference drawings and capacity tables
Original manufacturer drawings for the G&GG series.
