Crop Spraying Machine Nozzles
Flat Fan Tip 110 degree
The Flat Fan Tip 110 degree is designed for use in crop spraying machines with 1/2 meter nozzle spacing, but is also widely used in knapsacks and hand held sprayers, as a single spray nozzle. The Flat Fan Tip is the most versatile on the market with a fixed droplet spectrum produced over a 2-4 bar pressure range makes it ideal for applications of herbicides, fungicides, insecticides and PGR'S , These nozzles will fit most types of sprayer or knapsack. Flow model include: 11001/110015/11002/11003/11004/11005/11006
| Series / part | Flat Fan Tip 110 degree |
|---|---|
| Category | Crop Spraying Machine Nozzles |
| Product family | Special Purpose Nozzles |
| Manufacture | CNSS, Dongguan — OEM and non-standard variants available |
Typical of this category
- Diaphragm check valve bodies
- Multi-way turret nozzle holders
- Liquid fertiliser stream bars
- Bayonet caps for fast tip changes
Capacity, spray angle and dimensional tables vary by orifice size. See the reference drawings below, or ask us for the datasheet covering the size you need.

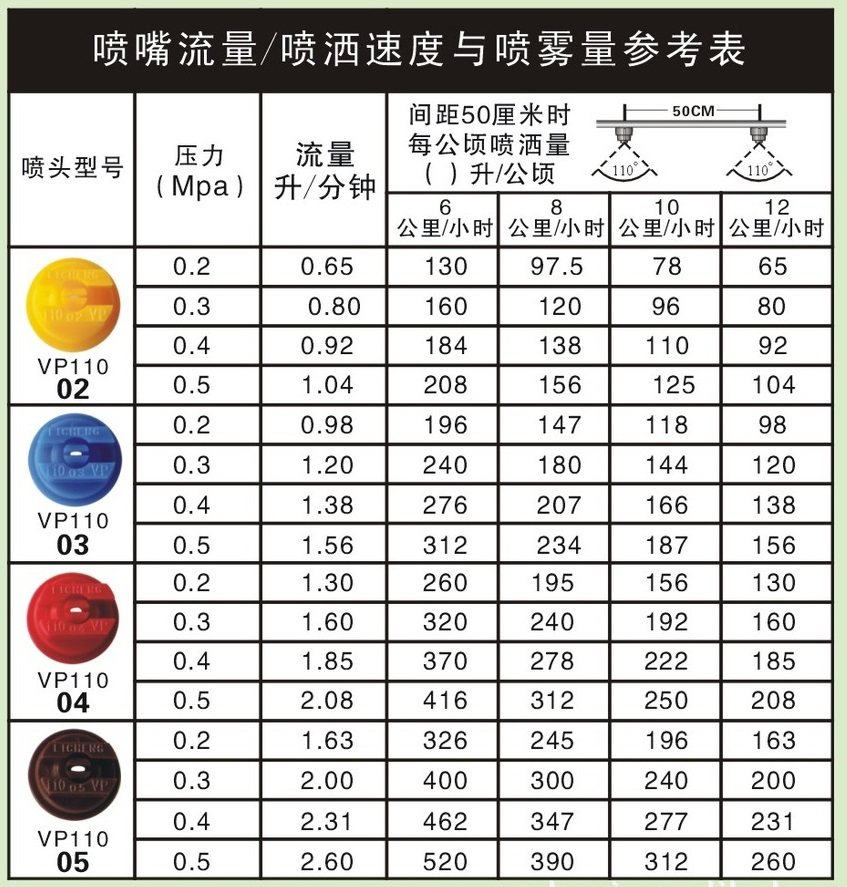

Reference drawings and capacity tables
Original manufacturer drawings for the Flat Fan Tip 110 degree series.
