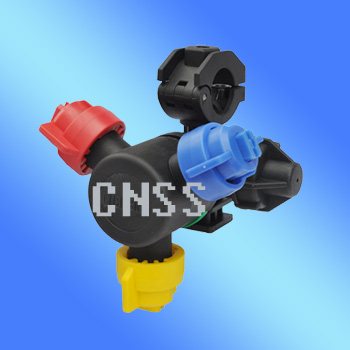

3-way Nozzle for Wet Boom
3 and 5-Way Nozzle Bodies for Wet Boom FEATURES • Three turret styles for an easy change of spray tips: single, 3-way, and 5-way • Provides lowest pressure drop at any given flow in the industry • 2.6 gpm (9.84 LPM ) with a 5 psi (.345 BAR) pressure drop • Available in wet or dry boom versions • Positive shutoff between each spray position • Custom logos available upon request (minimum quantities apply) Single way.
| Series / part | 3-way Nozzle for Wet Boom |
|---|---|
| Category | Crop Spraying Machine Nozzles |
| Product family | Special Purpose Nozzles |
| Manufacture | CNSS, Dongguan — OEM and non-standard variants available |
Typical of this category
- Diaphragm check valve bodies
- Multi-way turret nozzle holders
- Liquid fertiliser stream bars
- Bayonet caps for fast tip changes
Capacity, spray angle and dimensional tables vary by orifice size. See the reference drawings below, or ask us for the datasheet covering the size you need.
Reference drawings and capacity tables
Original manufacturer drawings for the 3-way Nozzle for Wet Boom series.
