Flat Fan Spray Nozzles

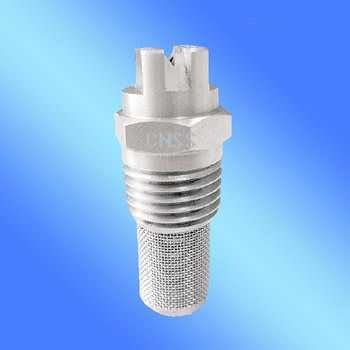

CCVL
This nozzle is the same nozzle as CCU and CCV, but the difference is with a filter, we have 50mesh, 100mesh, 150mesh for you to choose. For the specifications, please refer to CCU.
| Series / part | CCVL |
|---|---|
| Category | Flat Fan Spray Nozzles |
| Product family | Common Purpose Nozzles |
| Manufacture | CNSS, Dongguan — OEM and non-standard variants available |
Typical of this category
- Tapered and even-flow edges
- Spray angles from 15° to 110°
- Ceramic and stainless inserts
- Deflected and V-jet variants
Capacity, spray angle and dimensional tables vary by orifice size. See the reference drawings below, or ask us for the datasheet covering the size you need.

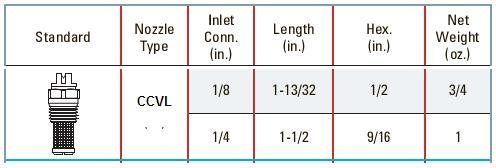

Reference drawings and capacity tables
Original manufacturer drawings for the CCVL series.
