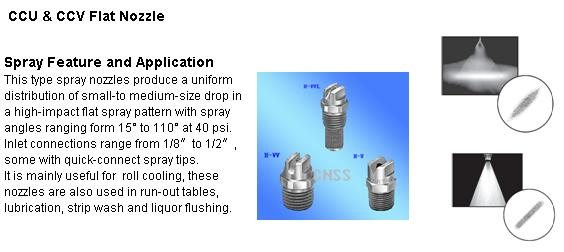

Flat Fan Nozzle
Flat Fan Nozzle is part of the flat fan spray nozzles range from CNSS. A flat, elliptical sheet with a defined spray angle, for surface cleaning, coating, rinsing and boom spraying. Overlapping fans on a header give uniform coverage across a moving web or conveyor.
| Series / part | Flat Fan Nozzle |
|---|---|
| Category | Flat Fan Spray Nozzles |
| Product family | Common Purpose Nozzles |
| Manufacture | CNSS, Dongguan — OEM and non-standard variants available |
Typical of this category
- Tapered and even-flow edges
- Spray angles from 15° to 110°

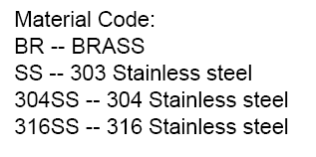

- Ceramic and stainless inserts
- Deflected and V-jet variants
Capacity, spray angle and dimensional tables vary by orifice size. See the reference drawings below, or ask us for the datasheet covering the size you need.

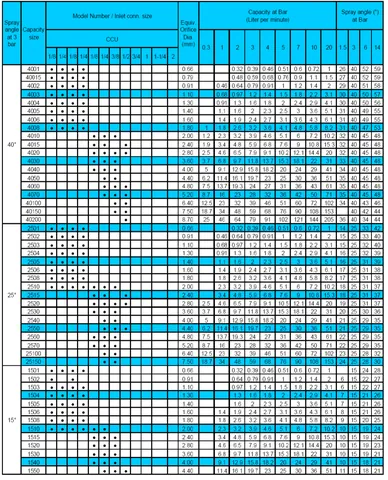

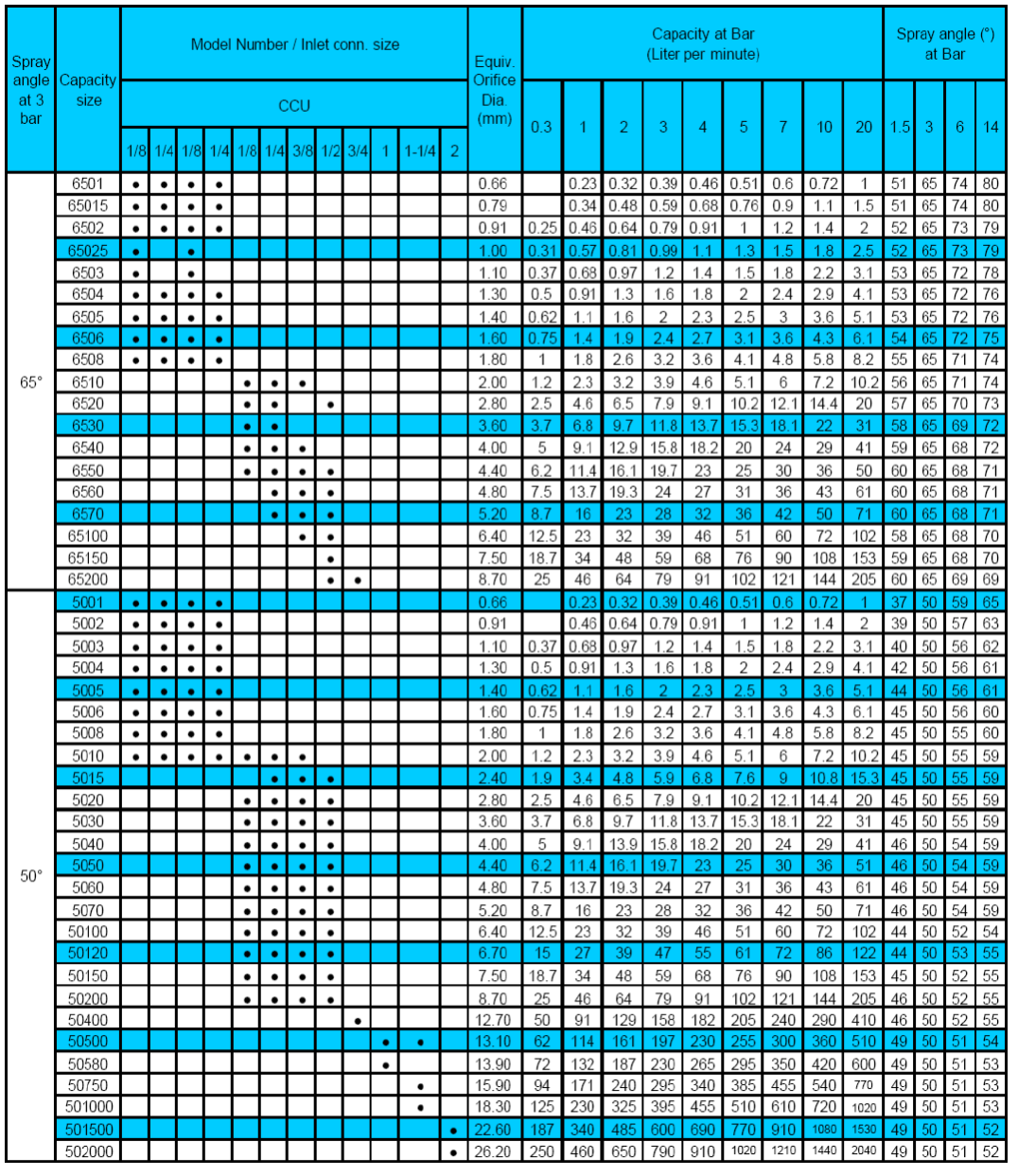

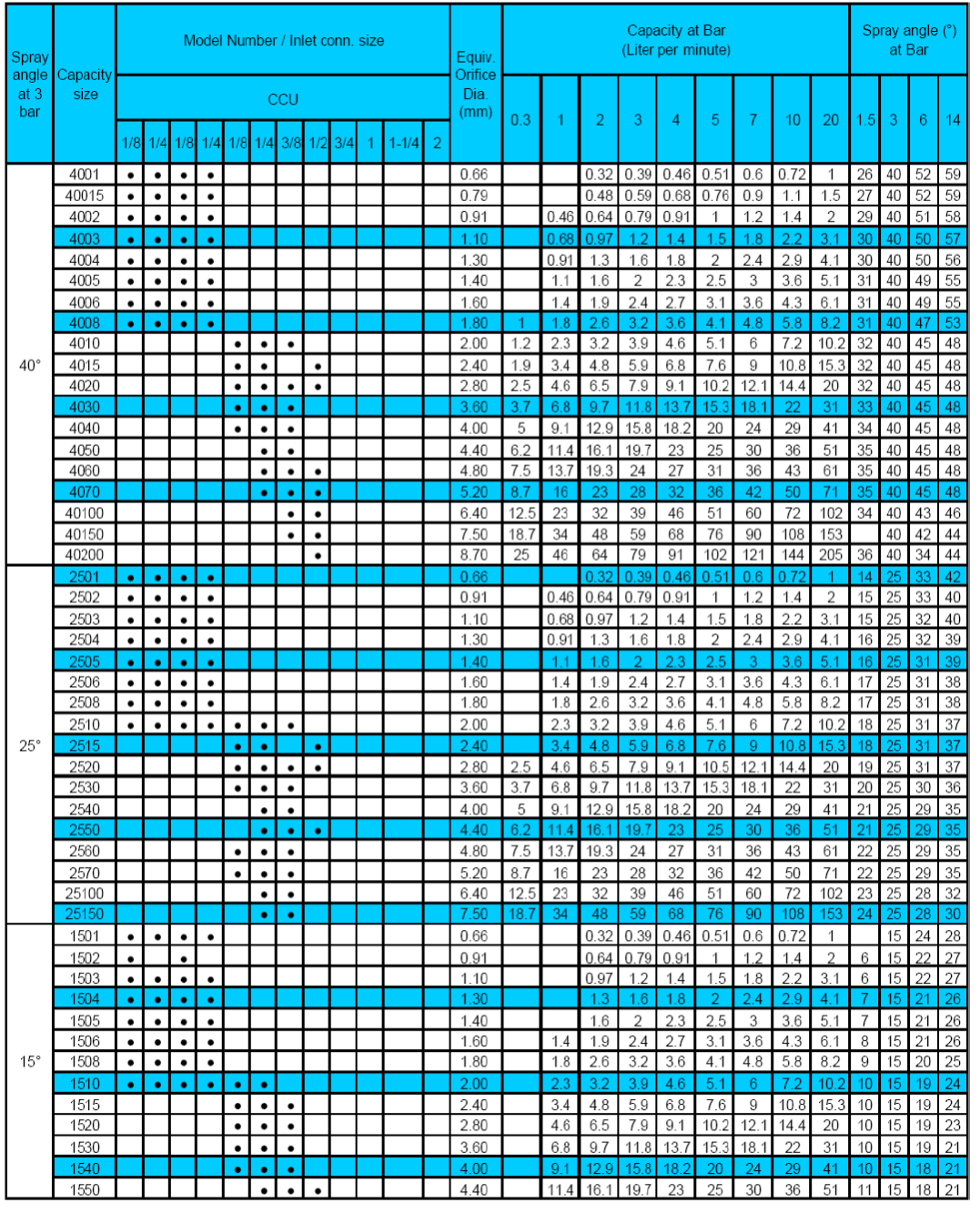

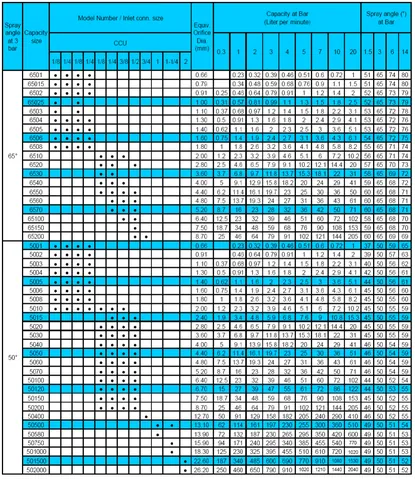

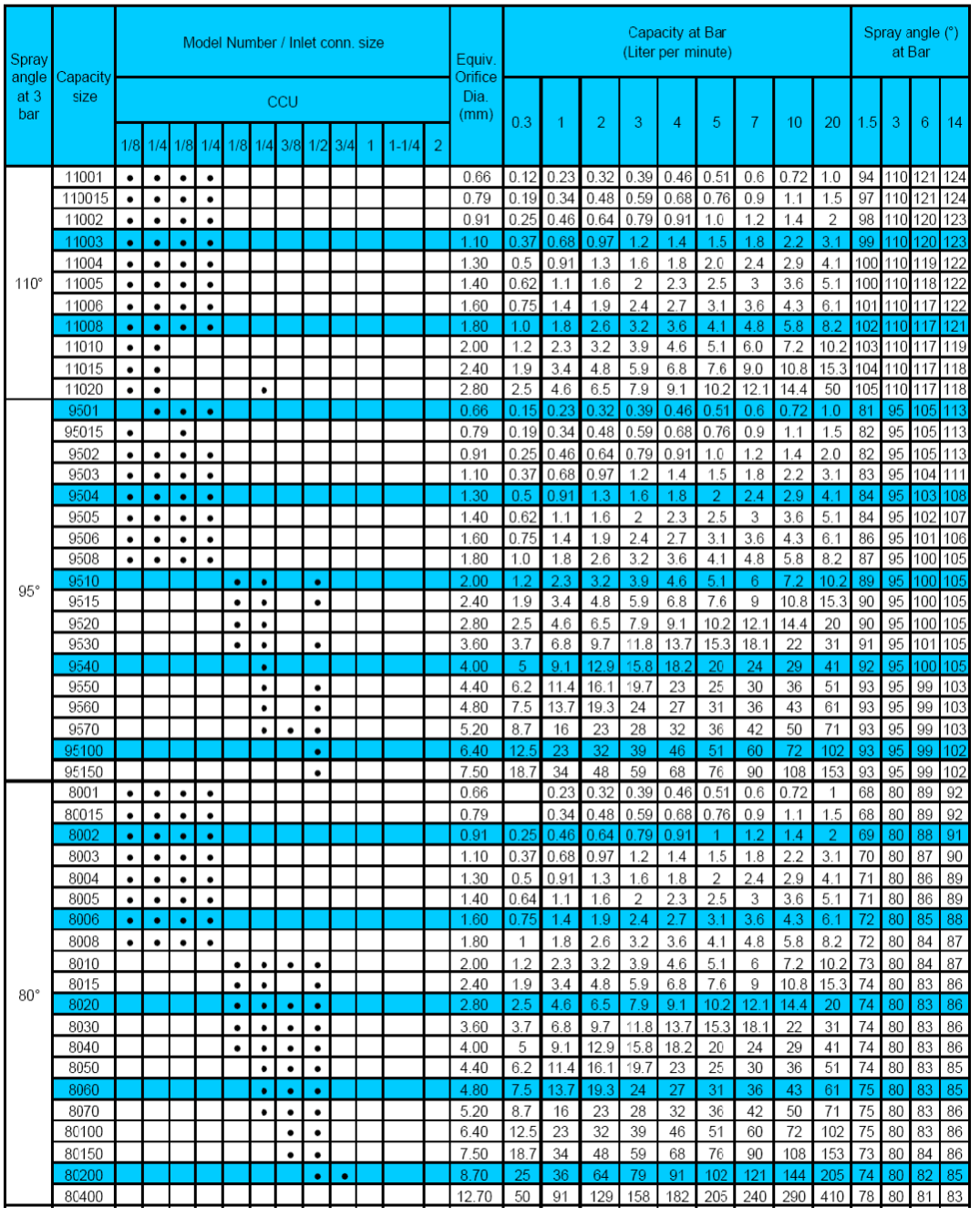

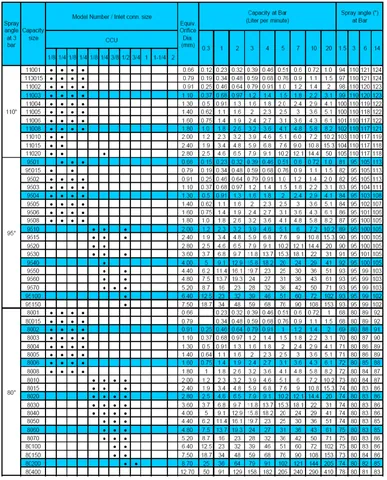

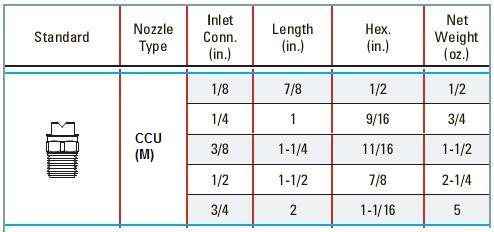

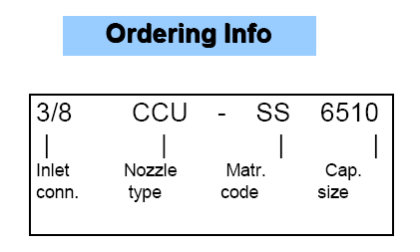

Reference drawings and capacity tables
Original manufacturer drawings for the Flat Fan Nozzle series.
