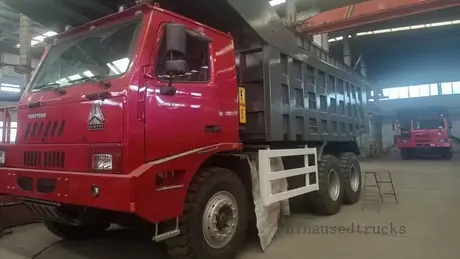

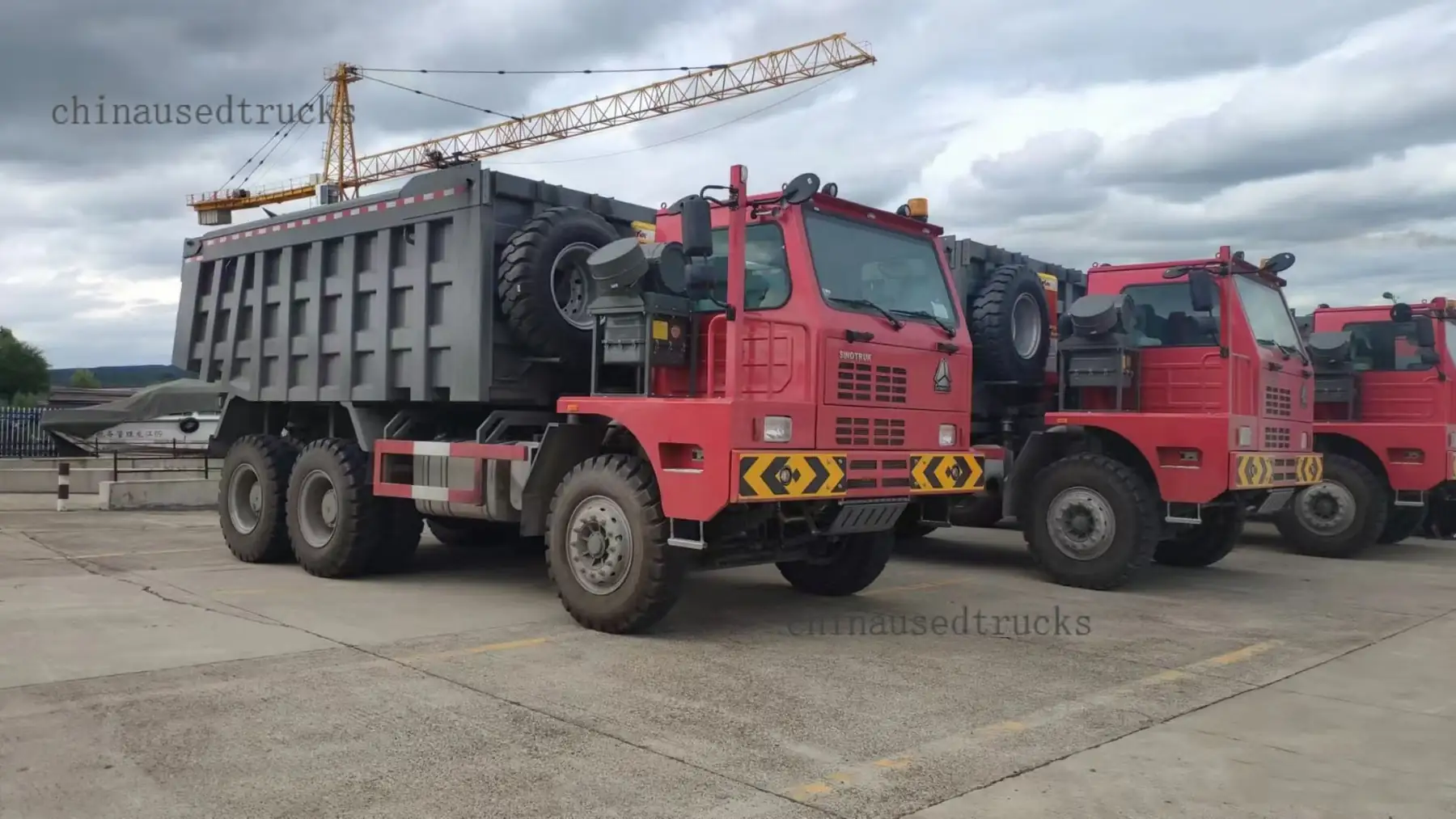

70 Mine truck package processing
Mine specification 70 series tipper with a 420 horsepower D12 engine and a Q345 body
A ZZ5707V3840CJ mine truck with a D12.42T2 engine rated at 420 horsepower to Euro II with a silicone oil fan and inlet heating. It uses an HW21712 transmission an HW7D cab with air conditioning and an air seat an HW70 power stripper a VGK20 front axle and an MCK45 rear axle on a 10.47 ratio with 14.00-25 tyres. The Q345 steel body measures 5800 by 3100 by 1750 millimetres with a 16 millimetre floor.
Photographs of the specific unit are sent before loading. Specification confirmed in writing.
Key Benefits
01
10.47 axle ratio is geared for pit haul roads not for highway speed
02
Q345 structural steel body with a 16 millimetre floor built for direct rock loading
03
14.00-25 earthmover tyres rather than road truck tyres
Who It Is For
- Open pit mine operators
- Large quarry operations
- Contractors on captive haul roads
Problems It Solves
- Road specification tippers are destroyed by continuous pit loading
- Standard truck tyres fail quickly on broken rock
- Ordinary body steel dents and tears under direct shovel loading
Specifications
Figures below are taken from the published specification of this listing. Anything not listed will be confirmed in writing before loading.
| Model | ZZ5707V3840CJ |
|---|---|
| Engine | D12.42T2,420hp,Euro II,Silicone oil fan,Inlet heating |
| Transmission | HW21712 |
| Cab | HW7D,Air conditioner,Air seat |
| Power Stripper | HW70 |
| Front Axle | VGK20 |
| Rear Axle | MCK45 |
| Speed Ratio | 10.47 |
| Tyre | 14.00-25 |
| Material | Q345 |
| Top Configuration | 5800*3100*1750mm,bottom 16mm |
| Steering | ZF8118 |
| Frame | structure;Brim lengthened to cab front end (removable);Color:Grey |
Use Guide
- This is a mine specification unit intended for captive haul roads rather than public highway registration
- Inlet heating and the silicone oil fan support cold start and sustained low speed work
How It Compares
Compared with A road legal 8x4 tipper
Far stronger body and pit gearing but not intended for highway operation
Where It Is Used
- Urgent project mobilisation
- Fleet top up between budget cycles
- Dealer batch stocking
- Body and superstructure conversion
Related Products
DISCOUNT SPOT TRUCK
A number of discount spot truck Shacman mixer trucks price for saleUnused Shacman mixer chassis from spot stock ready for immediate loading
View specification
DISCOUNT SPOT TRUCK
Used Concrete Pump Truck 371HP High Quality371HP concrete pump truck on a HOWO chassis for high rise and long distance placement
View specification
DISCOUNT SPOT TRUCK
HOWO 6x4 dump truck The whole vehicle chassis has New truck can be picked upHOWO V7 6x4 tipper with a double deck frame and 14 millimetre floor plate
View specification
DISCOUNT SPOT TRUCK
A 5.6m HOWO second-hand dump truck sell at a discount5.6 metre HOWO tipper with a 400 horsepower Weichai engine offered at a discount
View specificationRelated Case Studies
Frequently Asked Questions
What Steel Is the Body Made From
Q345 structural steel with a 16 millimetre floor.
Why Is the Speed Ratio So High
A 10.47 ratio trades top speed for pulling power which is what a loaded mine haul road demands.
Is This Truck Road Legal
It is a mine specification vehicle on 14.00-25 tyres. Confirm registration requirements in your market before ordering.
Ask About This Unit
Send us the listing name and we will confirm current availability photographs and the delivered specification.
